Product Overview
Teranex Express from Blackmagic Design is a real time SD, HD and Ultra HD broadcast standards converter. Featuring advanced patented algorithms, Teranex Express gives you the visually transparent, high-quality conversions that are mandated by major broadcasters and studios worldwide. You get an incredible 1089 SD, HD and Ultra HD up, down and standards conversions in full 10-bit quality. You also get amazing processing with high quality de-interlacing, noise reduction, automatic cadence detection, removal and correction even with edited content, adjustable scaling and aspect ratio conversion, all with full timecode and multi-channel audio conversion.

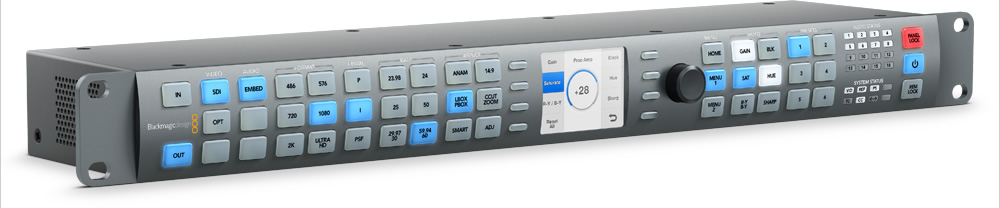

The front panel looks identical to other Teranex models so it’s easy to use. It includes dual link 6G-SDI in and out, but channel A is 12G-SDI. This means it can also convert between dual link 6G-SDI connections and single link 12G-SDI connections. It also has an optical fiber socket so you can add optical fiber SDI connections by adding an optical module if required.
NOTE: Blackmagic does not include IEC cables on this product. We recommend also buying a C2G 03133, a 6’ IEC universal power cable.
Includes
- 1x Teranex Express
- 1x SD card with software and manual
- 2x Bumper guards
- 4x M4 screws
Features
- Teranex processing for extremely high quality up conversion, down conversion.
- 12G-SDI/dual link 6G-SDI in and out and upgradable to optical fiber SDI in and out.
- Full conversion of timecode and subtitles.
- 16 channels of frame accurate audio conversions and full audio channel remapping.
- Classic Teranex front panel so extremely easy for Teranex customers to integrate and use.
- Reference input for built in frame sync feature.
- Built in power supply supports 110V to 240V AC.
Specifications
- Connections:
- SDI Video Input:
- 1x (IN A) – 10-bit SD, HD, 2K, 3 Gb/s HD, 6 Gb/s and 12 Gb/s UHD switchable
- 1x (IN B) – 10-bit SD, HD, 2K, 3 Gb/s HD and 6 Gb/s UHD switchable. Usable as dual link input for 4:2:2 3G or 6G UHD
- SDI Video Loop:
- 1x (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3 Gb/s HD, 6 Gb/s and 12 Gb/s UHD switchable
- 1x (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3 Gb/s HD, 6 Gb/s UHD switchable
- SDI Video Output:
- 1x (OUT A) – 10-bit SD, HD, 2K, 3 Gb/s HD, 6 Gb/s and 12 Gb/s UHD switchable
- 1x (OUT B) – 10-bit SD, HD, 2K, 3 Gb/s HD and 6 Gb/s UHD switchable. Usable as dual link output for 4:2:2 3G or 6G UHD
- Video Standards:
- SD Format Support: 625/25 PAL, 525/29.97 NTSC
- HD Format Support: 720p50, 720p59.94, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080i50, 1080p50, 1080i59.94 and 1080p59.94
- 2K Format Support: 2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24 and 2048 x 1080p24, 2048 x 1080PsF25 and 2048 x 1080p25, 2048 x 1080PsF29.97 and 2048 x 1080p29.97
- 4K Format Support: 3840 x 2160p23.98/24/25/29.97/50/59.94
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
- SDI Metadata Support: VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.
- Processing:
- Aspect Ratio Conversion: Real-time fixed aspect ratio conversions
- Real Time Video Processing: Includes color correction and proc amp control
- Format Conversion: Real-time up conversion, down conversion, cross conversion
- Colorspace Conversion: Hardware-based real time
- Software Control: Software control utility includedfree for changing settings via Windows 7 and Mac OS X
- Internal Software Upgrade: Automatically upgradeswhen new software is connected via USB 2.0
- Operating Systems:
- Mac OS X 10.7 Lion or later; Mac OS X 10.8 Mountain Lion or later
- Windows 7 or Windows 8
- Power Supply: 1x built-in international AC powersupply with IEC C14 inlet. 100-240V, 50-60Hz
- Operating Temperature: 5° to 50° C (41° to 122° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
- Product Warranty: 12 Month Limited Manufacturer's Warranty
Notes
- Please refer to the documentation tab for full specification data.
