Blackmagic Design Mini Converter SDI Distribution 4K 1x SD/HD/3G/6G-SDI Input to 8x Single Link SD/HD/3G/6G-SDI Outputs Converter

OUR PART #: CONVMSDIDA4K MFR #: BMD-CONVMSDIDA4K

Copied to clipboard

You can connect a single SDI source to 8 re-clocked SDI outputs with Blackmagic Design's Mini Converter SDI Distribution 4K... ...Read more

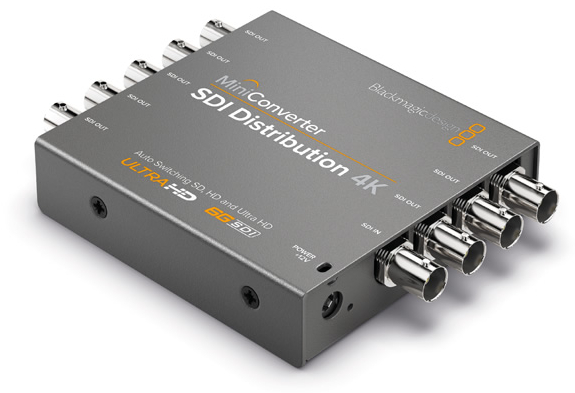

Blackmagic Design Mini Converter SDI Distribution 4K 1x SD/HD/3G/6G-SDI Input To 8x Single Link SD/HD/3G/6G-SDI Outputs Converter Image 1
Blackmagic Design Mini Converter SDI Distribution 4K 1x SD/HD/3G/6G-SDI Input To 8x Single Link SD/HD/3G/6G-SDI Outputs Converter Image 2
Blackmagic Design Mini Converter SDI Distribution 4K 1x SD/HD/3G/6G-SDI Input To 8x Single Link SD/HD/3G/6G-SDI Outputs Converter Image 3
Blackmagic Design Mini Converter SDI Distribution 4K 1x SD/HD/3G/6G-SDI Input To 8x Single Link SD/HD/3G/6G-SDI Outputs Converter
Our Price: $315.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

You can connect a single SDI source to 8 re-clocked SDI outputs with Blackmagic Design's Mini Converter SDI Distribution 4K, and also enjoy automatic switching between all SD-SDI, HD-SDI, 3G-SDI and 6G-SDI video formats, as well as all ASI, ancillary and embedded audio formats.

Blackmagic Design Mini Converters - Among the world's most advanced converters thanks to the latest 6G-SDI technology, the Mini Converter line automatically detect the input video format and instantly change between virtually all SD, HD, and Ultra HD video standards. Simply connect, and the Mini Converters automatically convert between your devices.

You also get advanced features like redundant SDI inputs, re-clocked loop outputs, along with full analog and AES/EBU audio inputs and outputs, so you can convert between formats, as well as embed or de-embed audio, all using the one converter.

With Broadcast, post production, and professional AV environments being built using SDI equipment and cabling, it's essential for you to maintain the highest possible video and audio quality when converting to and from SDI. The Mini Converters are compact, cost-effective, and easy-to-use, with settings that can be changed quickly using their onboard mini switches. With a diagram showing pin settings printed on the back, you'll rarely if ever have to refer to a manual. Mini Converters use standard broadcast video and audio connections, providing you the convenience and cost savings of using your own cables.

Ultra HD and 6G-SDI Technology - This makes the move to Ultra HD, the Broadcast standard of the future, simple, so you can prepare yourself now by installing equipment that is fully compatible with all your SD and HD-SDI infrastructure, but will also switch over to Ultra HD via 6G-SDI when you need to, ensuring that you're ready for the future, and can build your system with full Ultra HD compatibility. Ultra HD features an incredible 4 times the resolution of regular 1080 HD video for a massive 3840 x 2160 frame size. In addition, the advanced 6G-SDI design also means the Blackmagic Mini Converters perform better when used in SD and HD formats than simple HD-only converters.

Mini Converters offer support for embedded SDI and HDMI audio, and several models allow you to separately embed or de-embed analog or digital audio. Mini Converters are compatible with 24-bit analog, as well as AES/EBU audio, and use standard 1/4" audio jacks so you don't need custom cables.

Other converters can be confusing to operate and sometimes identify, unlike those, Blackmagic's Mini Converters unite powerful performance with a simple, compact design. Its easy to access, onboard connections all use standard cables that you're already likely to own.

Highest Quality Processing - With video processing of the highest quality, Mini Converters are great for use in all Broadcast, post production, and professional AV environments. Multiple internal power supplies provide incredibly low noise levels when moving between analog and digital video formats. Specific models include up/down/cross conversion, allowing you to easily move between PAL and NTSC SD video standards, along with the high number of HD formats in up to 3840 x 2160 Ultra HD resolutions.

Easy Settings Control - Adjusting the Mini Converter's onboard mini switch settings is as easy as using a pen, allowing for quick settings changes, as there are no complicated menus to navigate. The included Converter Utility software also provides control settings.

You can connect a Blackmagic Mini Converter to any Mac OS X or Windows based laptop or desktop computer. You can update all models via USB 2.0 by simply downloading software upgrades directly from Blackmagic Design's website.

Blackmagic Design SDI Distribution 4K Mini Converter Includes:

  • SDI Distribution 4K Mini Converter unit
  • Software CD
  • 12V universal power supply with international socket adapters

Blackmagic Design SDI Distribution 4K Mini Converter Specifications:

  • Manufacturer Part #: CONVMSDIDA4K
  • Connections:
    • SDI Video Input: Switchable between SD, HD and 6G-SDI
    • SDI Video Output: 8 outputs automatically match the SDI video input
    • Multi Rate Support: Auto detection of 6G-SDI, HD or standard definition SDI inputs
    • Reclocking: Yes
  • Standards:
    • SD Format Support: 525/29.97 NTSC, 625/25 PAL
    • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
    • 2K Format Support: 2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25
    • 4K Format Support: 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE425M
    • SDI Video Rates: SDI video connections are switchable between 6G-SDI, HD and SD-SDI
    • SDI Video Sampling: 4:2:2 and 4:4:4
    • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
    • SDI Color Precision: 4:2:2 and 4:4:4
    • SDI Color Space: YUV and RGB
    • SDI Auto Switching: Automatically selects between SDSDI, HD-SDI, and 3G-SDI.
    • ASI Support: Yes
  • Power Requirements:
    • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
    • Power Consumption: 4.8 Watts
    • Operational Voltage Range: 12V-30V
  • Environmental:
    • Operating temperature: 0° to 40° C (32° to 104° F)
    • Storage temperature: -20° to 45° C (-4° to 113° F)
    • Relative Humidity: 0% to 90% non-condensing
  • Warranty: 3 Year Limited Manufacturer's Warranty
