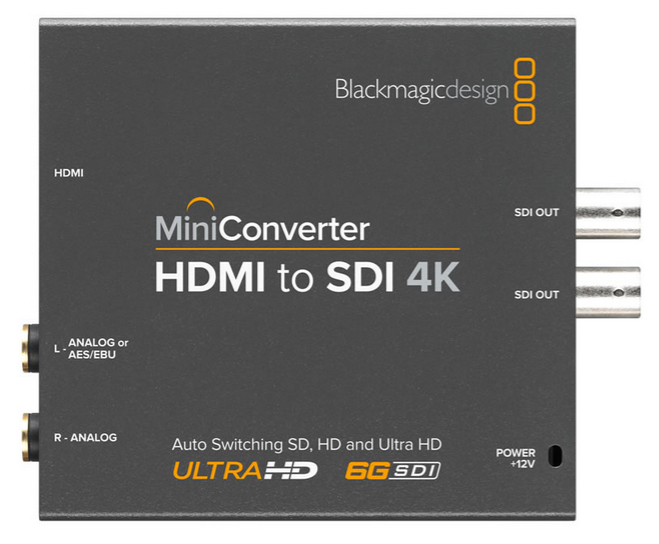

Blackmagic Design CONVMBHS24K
HDMI to SDI 4K Mini Converter

OUR PART #:  CONVMBHS24K

The Blackmagic Design Mini Converter HDMI to SDI 4K includes everything you need to convert from HDMI devices to SD, HD, 3G and 6G-SDI video in SD, HD and Ultra HD video formats.
Learn More
Our Price: $280.25
List Price: $295.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design CONVMBHS24K
Qty:
In Stock

Similar Products

The Blackmagic Design Mini Converter HDMI to SDI 4K includes everything you need to convert from HDMI devices to SD, HD, 3G and 6G-SDI video in SD, HD and Ultra HD video formats.  You can easily embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs.  Get the perfect solution to convert HDMI consumer cameras to SDI, or add SDI outputs to computers with HDMI connections.

The Mini Converter range are the world's most advanced converters because they include the latest 6G-SDI technology, plus automatically detect the input video format and instantly change between virtually all SD, HD and Ultra HD video standards.  Simply plug in and Mini Converters will convert between your equipment all automatically.

Blackmgic Design CONVMBHS24K Includes:

  • HDMI to SDI 4K Mini Converter
  • 12V universal power supply with international socket adapters

You get advanced features such as redundant SDI inputs, re-clocked loop outputs and full analog and AES/EBU audio inputs and outputs so you can convert between formats as well as embed or de-embed audio all on the one converter.

Easy To Use Features

Broadcast, post production and professional AV environments are built using SDI equipment and cabling.  It's essential when converting to and from SDI that you maintain the highest possible video and audio quality.  Mini Converters are compact, affordable and easy-to-use.  Settings can be changed quickly using built-in mini switches, and with a diagram showing pin settings printed on the back you never need to refer to a manual.  Mini Converters use standard broadcast video and audio connections, so you get the convenience and cost savings of using your own cables.

Ultra HD and 6G-SDI Technology

Make the move to Ultra HD, the broadcast standard of the future, easy.  Be prepared now by installing equipment that is fully compatible with all your SD and HD-SDI infrastructure, but will also switch over to Ultra HD via 6G-SDI when you need to run Ultra HD.  This means you're ready for the future and can build your system with full Ultra HD compatibility.  Ultra HD features an incredible 4 times the resolution of regular 1080 HD video for a massive 3840 x 2160 frame size.  The advanced 6G-SDI design also means the Blackmagic Mini Converters models perform better when used in SD and HD formats than simple HD-only converters.

Standard Audio Connections

Mini Converters support embedded SDI and HDMI audio and several models let you separately embed or de-embed analog or digital audio.  Mini Converters support 24 bit analog and AES/EBU audio and use standard 1/4" audio jacks so you don't need custom cables.

Powerful Performance

Unlike other converters that can be confusing to operate and sometimes identify, Mini Converters combine powerful performance with a simple, compact design.  Built-in connections are easy to access and all use standard cables that you're already likely to own.

Optical Fiber Conversion

Mini Converter is available in a 6G-SDI to optical fiber model.  You get bi-directional 6G-SDI to optical fiber conversion, with each direction independent of each other.  Optical fiber cables span distances up to 28 miles without any deterioration to the signal.

Highest Quality Processing

With the highest quality video processing, Mini Converters are ideal for all broadcast, post production and professional AV applications. Multiple internal power supplies ensure incredibly low noise levels when moving between analog and digital video formats. Specific models include up/down/cross conversion that lets you move easily between PAL and NTSC SD video standards and the high number of HD formats in up to 3840 x 2160 Ultra HD resolutions.

Easy Settings Control

Changing Mini Converter's built-in mini switch settings is as easy as using a pen.  This is great when you need to change settings quickly as there are no complicated menus to navigate.  You can also control settings using the included Converter Utility software.

Connect a Mini Converter to any Mac OS X or Windows based laptop or desktop computer.  All models can be updated via USB 2.0 by simply downloading software upgrades directly from the Blackmagic Design website.

Blackmagic Design CONVMBHS24K Specifications:

  • SDI Video Output: Automatically matches the SD, HD and 6G-SDI HDMI video input.
  • Analog Audio: 2 channels of professional balanced analog audio with standard 1/4" jack connections.
  • AES/EBU Digital Audio: 2 channels of professional balanced digital withstandard 1/4" jack connections.
  • HDMI: HDMI type A in
  • Multi Rate Support: Auto detection of 6G-SDI, HD or standard definition SDI inputs.
  • Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
  • Reclocking: Yes
  • SD Format Support: 525/29.97 NTSC, 525/23.98 NTSC,625/25 PAL
  • HD Format Support: 720p59.94, 720p60, 1080i50, 1080i59.94,1080i60,1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 2K Format Support: 2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24,2048x1080p24, 2048x1080PsF25, 2048x1080p25
  • 4K Format Support: 3840x2160p23.98, 3840x2160p24, 3840x2160p25,3840x2160p29.97, 3840x2160p30, 4096x2160p24
  • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-RBT.601.
  • SDI Video Rates: SDI video connections are switchable between standard definition and high definition.
  • SDI Video Sampling: 4:2:2
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
  • SDI Color Precision: 4:2:2
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and6G-SDI.
  • HDMI Format Support: 625/25 PAL, 525/29.97 NTSC, 525/23.98 NTSC, 720p50,720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25,1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p23.98,2048x1080p24, 2048x1080p25, 3840x2160p23.98, 3840x2160p24, 3840x2160p25,3840x2160p29.97, 3840x2160p30, 4096x2160p24
  • HDMI Color Space: YUV and RGB
  • HDMI Color Precision: 4:2:2 and 4:2:2
  • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
  • Format Conversion: HD down conversion
  • Software Control: Mac OS X™ and Windows™ software upgrade via USB.
  • Internal Software Upgrade: Via included updater application.
  • Settings Control: Mini Switches or USB software.
  • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  • Power Consumption: 4.44Watts
  • Operational Voltage Range: 12V 31 Vdc
  • Dimensions: 4.88 mm x 3.63 mm x 0.9"
  • Weight: 8.6 oz
  • Operating temperature: 0° to 40° C (32° to 104° F)
  • Storage temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity: 0% to 90% non-condensing
  • Warranty: 3 Year Limited Manufacturer's Warranty
