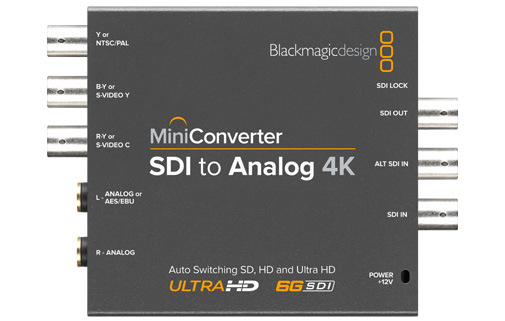

Blackmagic Design CONVMASA4K
SDI to Analog 4K Mini Converter


The Blackmagic Design Mini Converter SDI to Analog 4K includes everything you need to convert from SD, HD, 3G and 6G-SDI video to analog in HD/SD component, NTSC and PAL video.
Learn More
Our Price: $295.00
Write the first review.
Blackmagic Design CONVMASA4K
In Stock

Related Products

The Blackmagic Design Mini Converter SDI to Analog 4K includes everything you need to convert from SD, HD, 3G and 6G-SDI video to analog in HD/SD component, NTSC and PAL video.  The built-in down converter means you can even connect Ultra HD sources to component video in SD or HD as well as NTSC and PAL video.  Easily connect any analog equipment such as Betacam SP, VHS, and video monitors.

The Mini Converter range are the world's most advanced converters because they include the latest 6G-SDI technology, plus automatically detect the input video format and instantly change between virtually all SD, HD and Ultra HD video standards.  Simply plug in and Mini Converters will convert between your equipment all automatically.

You get advanced features such as redundant SDI inputs, re-clocked loop outputs and full analog and AES/EBU audio inputs and outputs so you can convert between formats as well as embed or de-embed audio all on the one converter.

Easy To Use Features

Broadcast, post production and professional AV environments are built using SDI equipment and cabling.  It's essential when converting to and from SDI that you maintain the highest possible video and audio quality.  Mini Converters are compact, affordable and easy-to-use.  Settings can be changed quickly using built-in mini switches, and with a diagram showing pin settings printed on the back you never need to refer to a manual.  Mini Converters use standard broadcast video and audio connections, so you get the convenience and cost savings of using your own cables.

Ultra HD and 6G-SDI Technology

Make the move to Ultra HD, the broadcast standard of the future, easy.  Be prepared now by installing equipment that is fully compatible with all your SD and HD-SDI infrastructure, but will also switch over to Ultra HD via 6G-SDI when you need to run Ultra HD.  This means you're ready for the future and can build your system with full Ultra HD compatibility.  Ultra HD features an incredible 4 times the resolution of regular 1080 HD video for a massive 3840 x 2160 frame size.  The advanced 6G-SDI design also means the Blackmagic Mini Converters models perform better when used in SD and HD formats than simple HD-only converters.

Standard Audio Connections

Mini Converters support embedded SDI and HDMI audio and several models let you separately embed or de-embed analog or digital audio.  Mini Converters support 24 bit analog and AES/EBU audio and use standard 1/4" audio jacks so you don't need custom cables.

Powerful Performance

Unlike other converters that can be confusing to operate and sometimes identify, Mini Converters combine powerful performance with a simple, compact design.  Built-in connections are easy to access and all use standard cables that you're already likely to own.

Optical Fiber Conversion

Mini Converter is available in a 6G-SDI to optical fiber model.  You get bi-directional 6G-SDI to optical fiber conversion, with each direction independent of each other.  Optical fiber cables span distances up to 28 miles without any deterioration to the signal.

Highest Quality Processing

With the highest quality video processing, Mini Converters are ideal for all broadcast, post production and professional AV applications. Multiple internal power supplies ensure incredibly low noise levels when moving between analog and digital video formats. Specific models include up/down/cross conversion that lets you move easily between PAL and NTSC SD video standards and the high number of HD formats in up to 3840 x 2160 Ultra HD resolutions.

Easy Settings Control

Changing Mini Converter's built-in mini switch settings is as easy as using a pen.  This is great when you need to change settings quickly as there are no complicated menus to navigate.  You can also control settings using the included Converter Utility software.

Connect a Mini Converter to any Mac OS X or Windows based laptop or desktop computer.  All models can be updated via USB 2.0 by simply downloading software upgrades directly from the Blackmagic Design website.

Blackmagic Design CONVMASA4K Mini Converter Includes:

  • SDI TO ANALOG 4K Mini Converter
  • Software CD
  • 12V universal power supply with international socket adapters

Blackmagic Design CONVMASA4K Mini Converter Specifications:

  • SDI Video Input: Switchable between SD, HD and 6G-SDI
  • SDI Video Output: Automatically matches the SD, HD and 6G-SDI video input
  • Analog Video: NTSC, PAL and S-Video from and component HD from 6G-SDI input
  • Analog Audio: 2 channels of professional balanced analog audio with standard 1/4" jack connections
  • AES/EBU Digital Audio: 2 channels of professional balanced digital with standard 1/4" jack connections
  • SDI Redundant Input: Automatically switches over if main SDI input is lost
  • Multi Rate Support: Auto detection of 6G-SDI, HD orstandard definition SDI inputs
  • Updates and Configuration: Via USB 2.0 high speed.(480 Mb/s)
  • Reclocking: Yes
  • SD Format Support: 525/29.97 NTSC, 625/25 PAL
  • HD Format Support: 720p50, 720p59.94, 720p60,1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24,1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
  • 2K Format Support: 2048x1080PsF23.98,2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25
  • 4K Format Support: 3840x2160p23.98, 3840x2160p24,3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
  • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M,ITU-R BT.656 and ITU-R BT.601.
  • SDI Video Rates: SDI video connections are switchable between standard definition and high definition and UHD
  • SDI Video Sampling: 4:2:2
  • SDI Audio Sampling: Television standard sample rateof 48 kHz and 24 bit.
  • SDI Color Precision: 4:2:2
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically selects between SDSDI, HD-SDI and 3 Gb/s SDI.
  • Analog Format Support: 625/25 PAL, 525/29.97 NTSC,720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98,1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97,1080PsF29.97, 1080p30, 1080PsF30
  • Analog Color Space: YUV
  • Analog Color Precision: 4:2:2
  • Format Conversion: HD down conversion
  • Software Control: Mac OS X™ and Windows™ software upgrade via USB.
  • Internal Software Upgrade: Via included updaterapplication.
  • Settings Control: Mini Switches or USB software.
  • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  • Power Consumption: 8.04 Watts
  • Operational Voltage Range: 12V
  • Dimensions: 4.88 mm x 3.63 mm x 0.9"
  • Weight: 10.68 oz
  • Operating temperature: 0° to 40° C (32° to 104° F)
  • Storage temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity: 0% to 90% non-condensing
  • Warranty: 3 Year Limited Manufacturer's Warranty
