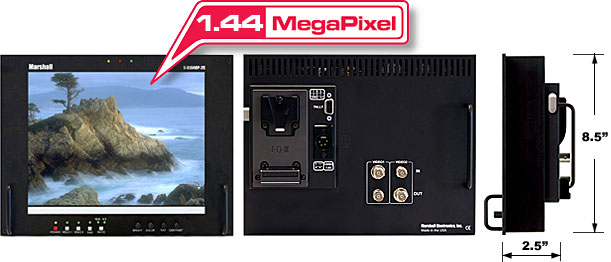

Marshall Electronics V-R104DP-2C [RESTOCK ITEM]
10.4" LCD Monitor with 2 Composite Video Inputs

OUR PART #:  V-R104DP-2C-RST-01

The Marshall Electronics full-feature V-R104DP-2C, With 20% more display in a smaller package, is the perfect alternative to 8 and 9-inch CRTs used in broadcast...
Learn More
Sale Price: $343.03
List Price: $1,599.00
You save 79%!
Write the first review.
Marshall Electronics V-R104DP-2C [RESTOCK ITEM]
Qty:
In Stock
Similar Products

The Marshall Electronics full-feature V-R104DP-2C, With 20% more display in a smaller package, is the perfect alternative to 8 and 9-inch CRTs used in broadcast, professional video and multimedia applications. This model includes the Award Wining Digital TFT-MegapixelT system with 1.44 million pixels plus Hyper Process for interlace image motion compensation.

Inputs are provided for 2 Composite sources that are switch selectable. The analog signals are digitized using a 10 bit process and images are scaled to fit on screen in high resolution using our state of the art LSI with 4x4 pixel interpolation and Match Color Conversion to emulate SMPTE-C phosphor of a CRT. Standard features include V-Mount battery adapter, 4 pin XLR power jack, and optical grade polycarbonate screen protection.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged.  It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your sales representative for more information on this and other products.

Marshall Electronics V-R104DP-2C Features:

  • Large 10.4-inch screen
  • 800x600 Dots (1.44 million RGB pixels)
  • Hyper Process for Interlace Images
  • Match Color Conversion
  • 100% digital processing
  • 5 Year /50,000 backlight life
  • Wide viewing radius - 130°
  • 600 (cd/m2) luminance
  • 500:1 contrast ratio
  • Response rates less than 25 ms
  • 4:3 and 16:9 screen aspect ratios
  • Direct access for all adjustments
  • Three color tally indicators
  • On Screen Display (OSD)
  • Blue Screen for color adjustment
  • Color Temperature adjustment
  • Adjustment Settings Memory
  • Standard Inputs/Outputs:
    2Composite with auto PAL/NTSC recognition
    Loop throughof all input signals
  • Durable metal enclosure
  • Configurable ¼ 20 Mounting
  • "V" Mount for Battery included
  • Runs 4 to 6 hours on optional battery
  • Power Supply Included
  • Optical grade polycarbonate screen cover

Marshall Electronics V-R104DP-2C Specifications:

  • Display (Viewing Area): 10.4 Inch diagonal (211.2mm W x 158.4 mm H)
  • Resolution (Pixels): 800 Wide x 600 High (1.44Million RGB Pixels)(262,000 colors)
  • Dot Pitch: .264mm square pixel l
  • Brightness (in cd/m²): 600
  • Contrast Ratio: 500:1
  • Inputs: 2 Composite
  • Dimensions (W,D,H): 10.25" x 8.5" x 2.5" (260.4x 215.9 x 38.1 mm)
  • Approx. Weight: 4 lbs (1.8 kg)
  • Power Consumption: App. 50 Watt (5 Amp 12 VDC Class 2 power supply included)
