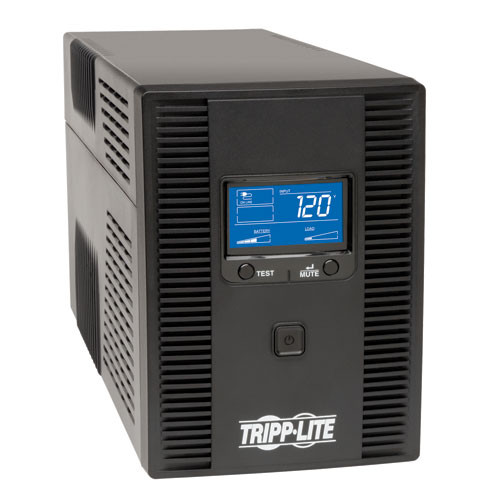

Tripp Lite SMART1300LCDT
1300VA Smart LCD Tower UPS

OUR PART #  SMART1300LCDT

Our Price: $182.21
List Price: $246.60
You save 26%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Tripp Lite's SMART1300LCDT Line-Interactive Tower UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers, network workstations, home entertainment systems and media centers. Internal UPS circuits support entry-level PCs or individual VCR/DVR components during power failures. Prevents data loss, viewing interruptions, lost recordings and loss of component programming. Automatic Voltage Regulation (AVR) circuits continuously regulate brownouts and overvoltages from 92V to 150V back to usable levels, all while maintaining a full battery charge. Offers complete power protection in an attractive all-black cabinet design. Includes 8 built-in outlets, 4 with full battery backup and surge suppression for vital system components and another 4 with surge-suppression only for accessories not requiring battery support. Built-in USB port and included cable enables optional unattended system shutdown without data loss in case of extended power failure.

PowerAlert software is available via free download from Tripp Lite's website. HID-compliant USB interface also enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Built-in surge dataline surge suppression jacks protect equipment with single-line dialup/DSL or network Ethernet connection. Built-in audible alarm and large LCD front panel display offers easy to read icon-based status indicators and detailed numeric data regarding input voltage, output voltage, frequency, load percentage, load watts, battery voltage and runtime in minutes. 1300VA/720W power-handling capacity supports entry-level PCs, home entertainment systems, network workstations and audio/video components.

Tripp Lite SMART1300LCDT Includes:

  • SMART1300LCDT UPS
  • USB cabling
  • Manual with warranty information

Tripp Lite SMART1300LCDT Features:

  • SMART1300LCDT line interactive UPS offers network-grade voltage regulation, surge suppression and long lasting battery support
  • 8 built-in NEMA 5-15R outlets, 4 with UPS and surge suppression for vital components and 4 additional outlets with surge-only protection for devices not requiring battery support
  • NEMA 5-15P input plug; 6ft / 1.8m line cord
  • Maintains operation of connected equipment to prevent data loss, equipment damage and downtime associated with power failures and severe voltage fluctuations
  • Line Interactive Automatic Voltage Regulation / AVR circuits continuously correct brownouts and overvoltages from 92 to 150V without using battery power
  • Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges
  • Offers 10 minutes runtime 50% load (360 watts)
  • Supports an entry level desktop system with LCD screen for up to 64 minutes during power failures (75 watts)
  • LCD display continuously reports operating mode and battery charge level, plus additional UPS and site power data, such as input & output voltage, frequency, load percentage, load watts, battery voltage and estimated runtime in minutes
  • USB monitoring port enables optional unattended system shutdown using PowerAlert UPS management software available via free download from Tripp Lite's website.
  • HID-compliant USB interface also enables automatic integration with built-in power management and auto shutdown features of Windows and Mac OSX
  • Built-in data line surge suppression offers protection for equipment with single-line dialup or network ethernet connection, plus one set of coax jacks for CATV / broadcast line protection

Tripp Lite SMART1300LCDT Specifications:

OUTPUT

  • Output Volt Amp Capacity (VA):  1300
  • Output kVA capacity (kVA):  1.3
  • Output Watt Capacity (watts):  720
  • Nominal Output Voltage(s): Supported  120V
  • Frequency compatibility:  60 Hz
  • Output voltage regulation (line mode):  -10%, +6%
  • Output voltage regulation (Battery mode):  +/- 5%
  • Built-in UPS output receptacles:  8 5-15R outlet(s)
  • Surge suppression only outlets:  4 UPS outlets, 4 surge-only outlets
  • Output AC waveform (AC mode):  Sine wave
  • Output AC waveform (battery mode):  PWM sine wave

INPUT

  • Rated input current (at maximum load):  12A
  • Nominal Input Voltage(s) Supported:  120V AC
  • UPS input connection type:  5-15P
  • Input circuit breaker:  20A
  • UPS Input cord length (ft.):  6
  • UPS Input cord length (m):  1.8
  • Recommended Electrical Service:  15A 120V
  • Phase:  Single-Phase

BATTERY

  • Half load runtime (minutes):  10 minutes (360 watts)
  • DC system voltage (VDC):  24
  • Battery recharge rate (included batteries):  Less than 6.3 hours from 10% to 90%
  • Replacement battery cartridge (internal UPS battery replacement):  RBC51 (requires 2)

VOLTAGE REGULATION

  • Voltage regulation description:  Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 92 to 150
  • Overvoltage correction:  Input voltages between 129 and 150 are reduced by 15%
  • Undervoltage correction:  Input voltages between 92 and 108 are boosted by 18%

LEDS ALARMS & SWITCHES

  • Front panel LCD display:  LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Output load in watts, Battery voltage and Estimated runtime in minutes
  • Alarms:  Audible alarm indicates power-failure and low-battery conditions
  • Alarm cancel operation:  Power-fail alarm can be silenced using alarm-cancel switch
  • Switches:  Power switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test

SURGE / NOISE SUPPRESSION

  • UPS AC suppression joule rating:  650
  • UPS AC suppression response time:  Instantaneous
  • UPS Dataline suppression:  1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet; Coax jacks (1 set)
  • EMI / RFI AC noise suppression:  Yes

PHYSICAL

  • Installation form factors supported with included accessories:  Tower
  • Primary form factor:  Tower
  • UPS / Power Module dimensions in primary form factor (height x width x depth / inches):  8 x 5.75 x 15.4
  • UPS / Power Module dimensions in primary form factor (height x width x depth / cm):  20.3 x 14.6 x 39.1
  • UPS / Power Module weight (lbs):  26.5
  • UPS / Power Module weight (kg):  12
  • UPS Shipping dimensions (height x width x depth / inches):  9 x 11.25 x 19.25
  • UPS Shipping dimensions (height x width x depth / cm):  22.9 x 28.6 x 48.9
  • Shipping weight (lbs):  26.5
  • Shipping weight (kg):  12
  • Cooling method:  Fan

ENVIRONMENTAL

  • Operating Temperature Range:  +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
  • Storage Temperature Range:  +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
  • Relative Humidity:  0 to 95%, non-condensing
  • AC mode efficiency rating (100% load):  95%

COMMUNICATIONS

  • Communications interface:  USB (HID enabled)
  • Network monitoring port description:  Supports detailed monitoring of UPS and site power conditions
  • PowerAlert software:  Free download from Tripp Lite's website.
  • Communications cable:  USB and DB9 Serial cabling included
  • WatchDog compatibility:  Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER

  • Transfer time:  2 milliseconds (AC to battery mode), 6 milliseconds (battery to AC mode)
  • Low voltage transfer to battery power (setpoint):  92
  • High voltage transfer to battery power (setpoint):  150

SPECIAL FEATURES

  • Cold Start (startup in battery mode during a power failure):  Cold-start operation supported
  • High availability UPS features:  hot-swap batteries
  • Green & high efficiency features:  Greater than 95% efficiency - GREEN UPS

CERTIFICATIONS

  • UPS Certifications:  Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)

WARRANTY

  • Product Warranty Period (U.S. & Canada):  3-year limited warranty
  • Product Warranty Period (International):  2-year limited warranty
  • Product Warranty Period (Mexico):  3-year limited warranty
  • Product Warranty Period (Puerto Rico):  3-year limited warranty
  • Connected Equipment Insurance (U.S., Canada & Puerto Rico):  $250,000 Ultimate Lifetime Insurance

Tripp Lite SMART1300LCDT
1300VA Smart LCD Tower UPS

OUR PART #  SMART1300LCDT

Product Information:

Tripp Lite's SMART1300LCDT Line-Interactive Tower UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers, network workstations, home entertainment systems and media centers. Internal UPS circuits support entry-level PCs or individual VCR/DVR components during power failures. Prevents data loss, viewing interruptions, lost recordings and loss of component programming. Automatic Voltage Regulation (AVR) circuits continuously regulate brownouts and overvoltages from 92V to 150V back to usable levels, all while maintaining a full battery charge. Offers complete power protection in an attractive all-black cabinet design. Includes 8 built-in outlets, 4 with full battery backup and surge suppression for vital system components and another 4 with surge-suppression only for accessories not requiring battery support. Built-in USB port and included cable enables optional unattended system shutdown without data loss in case of extended power failure.

PowerAlert software is available via free download from Tripp Lite's website. HID-compliant USB interface also enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Built-in surge dataline surge suppression jacks protect equipment with single-line dialup/DSL or network Ethernet connection. Built-in audible alarm and large LCD front panel display offers easy to read icon-based status indicators and detailed numeric data regarding input voltage, output voltage, frequency, load percentage, load watts, battery voltage and runtime in minutes. 1300VA/720W power-handling capacity supports entry-level PCs, home entertainment systems, network workstations and audio/video components.

Tripp Lite SMART1300LCDT Includes:

  • SMART1300LCDT UPS
  • USB cabling
  • Manual with warranty information

Tripp Lite SMART1300LCDT Features:

  • SMART1300LCDT line interactive UPS offers network-grade voltage regulation, surge suppression and long lasting battery support
  • 8 built-in NEMA 5-15R outlets, 4 with UPS and surge suppression for vital components and 4 additional outlets with surge-only protection for devices not requiring battery support
  • NEMA 5-15P input plug; 6ft / 1.8m line cord
  • Maintains operation of connected equipment to prevent data loss, equipment damage and downtime associated with power failures and severe voltage fluctuations
  • Line Interactive Automatic Voltage Regulation / AVR circuits continuously correct brownouts and overvoltages from 92 to 150V without using battery power
  • Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges
  • Offers 10 minutes runtime 50% load (360 watts)
  • Supports an entry level desktop system with LCD screen for up to 64 minutes during power failures (75 watts)
  • LCD display continuously reports operating mode and battery charge level, plus additional UPS and site power data, such as input & output voltage, frequency, load percentage, load watts, battery voltage and estimated runtime in minutes
  • USB monitoring port enables optional unattended system shutdown using PowerAlert UPS management software available via free download from Tripp Lite's website.
  • HID-compliant USB interface also enables automatic integration with built-in power management and auto shutdown features of Windows and Mac OSX
  • Built-in data line surge suppression offers protection for equipment with single-line dialup or network ethernet connection, plus one set of coax jacks for CATV / broadcast line protection

Tripp Lite SMART1300LCDT Specifications:

OUTPUT

  • Output Volt Amp Capacity (VA):  1300
  • Output kVA capacity (kVA):  1.3
  • Output Watt Capacity (watts):  720
  • Nominal Output Voltage(s): Supported  120V
  • Frequency compatibility:  60 Hz
  • Output voltage regulation (line mode):  -10%, +6%
  • Output voltage regulation (Battery mode):  +/- 5%
  • Built-in UPS output receptacles:  8 5-15R outlet(s)
  • Surge suppression only outlets:  4 UPS outlets, 4 surge-only outlets
  • Output AC waveform (AC mode):  Sine wave
  • Output AC waveform (battery mode):  PWM sine wave

INPUT

  • Rated input current (at maximum load):  12A
  • Nominal Input Voltage(s) Supported:  120V AC
  • UPS input connection type:  5-15P
  • Input circuit breaker:  20A
  • UPS Input cord length (ft.):  6
  • UPS Input cord length (m):  1.8
  • Recommended Electrical Service:  15A 120V
  • Phase:  Single-Phase

BATTERY

  • Half load runtime (minutes):  10 minutes (360 watts)
  • DC system voltage (VDC):  24
  • Battery recharge rate (included batteries):  Less than 6.3 hours from 10% to 90%
  • Replacement battery cartridge (internal UPS battery replacement):  RBC51 (requires 2)

VOLTAGE REGULATION

  • Voltage regulation description:  Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 92 to 150
  • Overvoltage correction:  Input voltages between 129 and 150 are reduced by 15%
  • Undervoltage correction:  Input voltages between 92 and 108 are boosted by 18%

LEDS ALARMS & SWITCHES

  • Front panel LCD display:  LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Output load in watts, Battery voltage and Estimated runtime in minutes
  • Alarms:  Audible alarm indicates power-failure and low-battery conditions
  • Alarm cancel operation:  Power-fail alarm can be silenced using alarm-cancel switch
  • Switches:  Power switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test

SURGE / NOISE SUPPRESSION

  • UPS AC suppression joule rating:  650
  • UPS AC suppression response time:  Instantaneous
  • UPS Dataline suppression:  1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet; Coax jacks (1 set)
  • EMI / RFI AC noise suppression:  Yes

PHYSICAL

  • Installation form factors supported with included accessories:  Tower
  • Primary form factor:  Tower
  • UPS / Power Module dimensions in primary form factor (height x width x depth / inches):  8 x 5.75 x 15.4
  • UPS / Power Module dimensions in primary form factor (height x width x depth / cm):  20.3 x 14.6 x 39.1
  • UPS / Power Module weight (lbs):  26.5
  • UPS / Power Module weight (kg):  12
  • UPS Shipping dimensions (height x width x depth / inches):  9 x 11.25 x 19.25
  • UPS Shipping dimensions (height x width x depth / cm):  22.9 x 28.6 x 48.9
  • Shipping weight (lbs):  26.5
  • Shipping weight (kg):  12
  • Cooling method:  Fan

ENVIRONMENTAL

  • Operating Temperature Range:  +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
  • Storage Temperature Range:  +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
  • Relative Humidity:  0 to 95%, non-condensing
  • AC mode efficiency rating (100% load):  95%

COMMUNICATIONS

  • Communications interface:  USB (HID enabled)
  • Network monitoring port description:  Supports detailed monitoring of UPS and site power conditions
  • PowerAlert software:  Free download from Tripp Lite's website.
  • Communications cable:  USB and DB9 Serial cabling included
  • WatchDog compatibility:  Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER

  • Transfer time:  2 milliseconds (AC to battery mode), 6 milliseconds (battery to AC mode)
  • Low voltage transfer to battery power (setpoint):  92
  • High voltage transfer to battery power (setpoint):  150

SPECIAL FEATURES

  • Cold Start (startup in battery mode during a power failure):  Cold-start operation supported
  • High availability UPS features:  hot-swap batteries
  • Green & high efficiency features:  Greater than 95% efficiency - GREEN UPS

CERTIFICATIONS

  • UPS Certifications:  Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)

WARRANTY

  • Product Warranty Period (U.S. & Canada):  3-year limited warranty
  • Product Warranty Period (International):  2-year limited warranty
  • Product Warranty Period (Mexico):  3-year limited warranty
  • Product Warranty Period (Puerto Rico):  3-year limited warranty
  • Connected Equipment Insurance (U.S., Canada & Puerto Rico):  $250,000 Ultimate Lifetime Insurance
