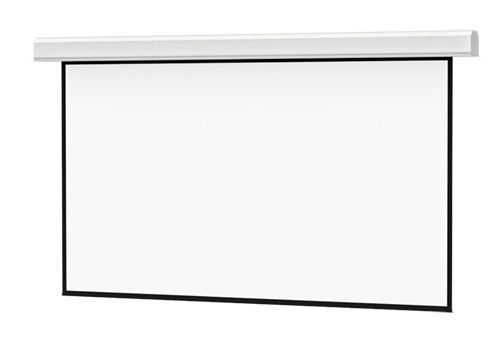

Da-Lite 36984L 144" x 144" Large Advantage Electrol Matte White Projector Screen, LVC

The Da-Lite 36984L is part of Da-Lite's Large Advantage® Electrol® Series of Electric Projection Screens. This particular model is the 14 ' (168") x 14' (168") Square Matte White version.

For larger venue installs, the Large Advantage Electrol is designed to eliminate the extra step of finishing the screen with trim. The Advantage line of projection screens is designed with ceiling trim already in place. Once the screen is installed, the screen’s trim conceals the rough opening eliminating the need to complete additional trim work.

Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling.

The Large Advantage Electrol screen features simple in ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage and the fabric assembly can be completed during the finishing stage.

The Large Advantage Electrol does not include the automatic closure door or the Tensioning Cable System. See Tensioned Large Advantage Electrol for Tensioning Cable System or Tensioned Large Advantage Deluxe Electrol for both the Tensioning Cable System and the additional aesthetic of the automatic closure door.

Matte White is a fiberglass surface for non high-definition projection and environments with controllable ambient light that preserves color as well as black and white images. Seamless sizes vary by product. Contact a Sales Partner for more information or consult the Specification Sheet.

Matte White can be cleaned with mild soap and water, is flame retardant, mildew resistant, and has achieved GREENGUARD GOLD Certification.

Da-Lite 36984L Features:

• Standard Low Voltage Control (LVC) to keep your screen operation flexible
• Simple Installation with a new installation kit and user-friendly packaging to keep you on schedule
• Support includes a comprehensive five-year warranty to keep you confident in your purchase
• UL Plenum rated case
• White powder-coated case for a clean aesthetic
• Available with SCB-100 (RS-232 serial control board) built into the case for easy installation
• Decora-style, three-button wall switch
• Standard black backing retains projected brightness

Da-Lite 36984L Specifications:

• Viewing Area: 14 ft. (168 in.) x 14 ft. (168 in.) (427cm x 427cm)
• Overall Length of Case: 183-1/2 in. (466cm)¹ ²
• Approx. Shipping Weight: 565 lbs. (256.3kg)

Note

¹Overall case length dimensions +/- ¼" (6mm)".

²Case length does notinclude flange

Specifications subject to change without notice.
