Pelican Cases 9470
Remote Area Lighting System

OUR PART #  9470

Selected Model Price: $3,038.29
List Price: $3,709.75

Save up to 18%! (Low Price Guarantee)
Select model: (shipping times are approximate)

The Pelican 9470 Remote Area Lighting System (RALS) uses solid-state mounted LED's coupled with a thermally efficient light engine and Pelican's 1610 Pelican Protectorâ„¢ Case to give the user the ultimate maintenance free portable floodlight station to get the job done efficiently, safely and on time. The RALS 9470 houses all four of it's light heads and it's multi-stage charger for that total self contained convenience, it is also equipped with a telescopic handle and rugged wheels for ease of transport. Comes with convenient low battery warning system and waterproof activation switch.

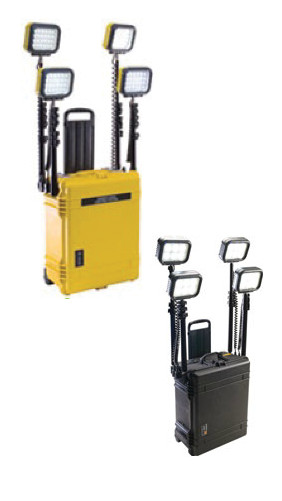

NOTE: Picture shown is to illustrate 2 product color choices.  This listing is for a single 9470 ONLYPlease specify color when ordering.  For more information, contact your sales representative.

CAUTION: The Pelican Products RALS models 9450, 9460 and 9470 contain sealed lead acid batteries that can generate hydrogen gas when charging. It is imperative that these products are charged, as instructed, with the case lid open to allow any gases to escape as charging with the lid closed poses a significant hazard. Failure to abide by this instruction could result in injury and/or damage to property. Please refer to the warnings provided in the instructions for the unit and on a decal affixed to the inside of the case adjacent to the cavity where the charger unit is packed.

Pelican Remote Area Lighting (RALS) Products have a new one year limited warranty.

Pelican 9470 Specifications:

  • Light Source:  High Flux LED
  • Light Output:  12,000 Lumens (High) 1000Lumens (Low)
  • LED Life:  50,000 hrs.
  • Lamp Heads:  4
  • Number of LEDs per Head:  6
  • Beam Spread: 120°
  • Runtime:  7 hrs. (High) 40 hrs. (Low)
  • Batteries:  12V Rechargeable, Sealed
  • Weight:  88.18 lbs. (40 kg)
  • Flashlight Colors:  Black, Yellow (specify when ordering)
  • Voltage:  12
  • Charge Time:  8 hrs. from full discharge
  • Brightness Settings:  Variable
  • Battery Life:  500 Cycles
  • Low Battery Warning:  iControl
  • 12V Primary Sockets:  4
  • Head Length:  6.5" (16.5 cm)
  • Head Width:  7.78" (20 cm)
  • Head Depth:  2.56" (6.5 cm)
  • Width (Closed):  19.57" (49.7 cm)
  • Length (Closed):  24.83" (63 cm)
  • Height (Closed):  11.93" (30.3 cm)
  • Mast Height (Extended):  72.85" (185 cm)
  • Cord Length:  13.78" (35 cm)


  • CE, RoHS Approved
  • CE Certificate:  Yes
