Pelican Cases 9500
Shelter Lighting System in Black


Our Price: $2,848.56
List Price: $3,478.09
You save 18%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The 9500 Shelter Lighting System from Pelican provides shelters with safe, secure and silent interior lighting. The 9500 contains three LED light heads equipped with both white and red LEDs allowing for maximum visibility or if needed, preservation of night vision. Each light head produces 2,000 lumens (6,000 total) of white light and 400 lumens of red light (1,200 total). The system is extremely rugged and deploys quickly.

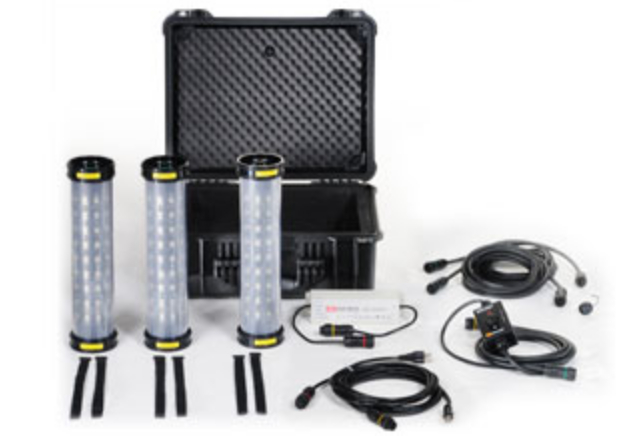

It contains three red/white LED light heads, universal transformer, inline switch, fixing straps for easy mounting and a series of color coded industrial grade connecting cables. The light heads are linked together and secured via hanging straps inside the shelter/accommodation. The light color (red or white) is selected via an inline switch and each light head can be independently switched on or off. The lighting system can be powered by a variety of sources including 110-240v AC wall power as well as 12-30v DC options. Unlike conventional glass light tubes, the 9500 light heads are virtually indestructible.

Pelican 9500 Features:

  • White and red LED’s in each head
  • Silent operation
  • Housed in a Pelican protector case
  • Virtually indestructible
  • Daisy-chain up to three light heads

Pelican 9500 Specifications:

Light Source

  • LED Type: High Flux LED
  • LED Life: 50000 hrs.
  • Tested Lumen Value:
      -  6000 (White LED)
      -  1200 (Red LED)
  • Lamp Heads: 3
  • Number of LEDs:
      -  36 LEDs per head
      -  24 White/12 Red
  • Beam Spread: 210° Diffused

Power Source

  • 12V Primary Sockets: N/A
  • 12V Auxiliary Sockets: N/A
  • Watts: 24
  • Voltage: 0
  • Switch Settings: White / Off / Red
  • Input Voltage: 12 - 30vdc or 110-240vac

Dimensions & Weight

  • Head Length: 16.3" (41.4 cm)
  • Head Width: 4.09" (10.4 cm)
  • Head Depth: 0" (0 cm)
  • Width Closed: 16.87" (42.8 cm)
  • Length Closed: 20.62" (52.4 cm)
  • Height Closed: 8.12" (20.6 cm)
  • Cord Length (Retracted): 157.5" (399.9 cm) 0" (0 cm)
  • Weight: 29.8 lbs. (13.52 kg)


  • CE Approval: Approved
  • CE Certificate Certificate: Yes
  • RoHS (Restriction of Hazardous Substances) Compliant: Approved
