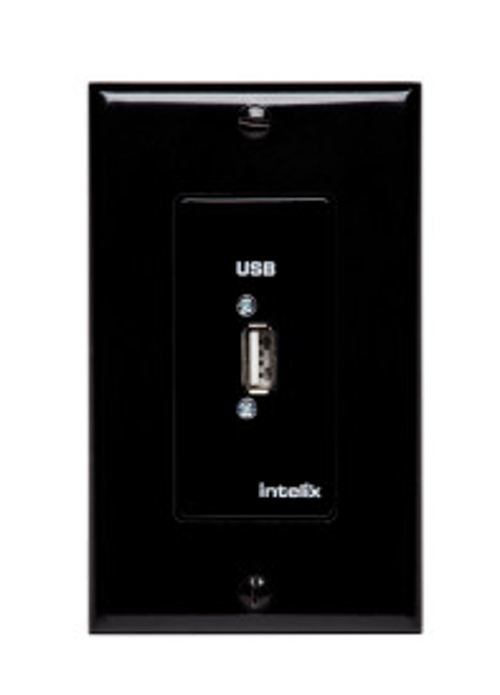

Intelix USB-WP-C-B
Client Side USB Extender Decora Wall Plate Insert in Black

OUR PART #:  USB-WP-C-B

The Intelix USB-WP-C-B extender transmits low speed USB 1.0, 1.1, and 2.0 signals up to 330 feet...
Learn More
Our Price: $90.00
List Price: $99.99
You save 10%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Intelix USB-WP-C-B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Intelix USB-WP-C-B extender transmits low speed USB 1.0, 1.1, and 2.0 signals up to 330 feet, and full speed USB 1.0, 1.1, and 2.0 signals up to 100 feet over twisted pair cabling.  The USB-WP-C-B is installed at a remote location to connect peripherals to a host device.

Decora inserts allow installation in any setting, facilitating a clean low-profile installation.

The Intelix USB-WP-C-B is plug-and-play, does not require driver software, and uses the same USB circuit as our other USB bus power devices for installation flexibility.

Applications:

  • Uses any Cat5/5e/6/6A twisted pair cabling
  • Extension of USB 1.1 and 2.0 full speed signals
  • Plenum routing of USB 1.1 and 2.0 full speed
  • Ideal for education, government, house of worship, corporate, residential,and any other application requiring extended USB signal distribution

Intelix USB-WP-C-B Features:

  • USB 2.0 full speed 12Mbps, USB 1.1 legacy support
  • Up to 330 feet cable lengths on U/UTP category 5/5e/6
  • Not for USB 2.0 high speed
  • No external power required, uses host device's 5V power
  • USB "A" female (client) to RJ45 jack connectivity
  • Black Decora insert with matching surround
  • Requires compatible host end.

Intelix USB-WP-C-B Specifications:

  • USB: One (1) Female USB Type A
  • Twisted Pair: One (1) 8P8C port (Shielded RJ45)
  • Full Speed (12 mbps) Maximum Distance via Cat5e :100 ft
  • Low Speed (1.5 mbps) Maximum Distance via Cat5e: 300 ft
  • RJ45 Pin Configuration:
    • Pin 1: Data +
    • Pin 2: Data -
    • Pins 3, 4, 5, and 6: GND
    • Pins 7 and 8: 5V DC
  • Enclosure: ABS plastic
  • Housing Dimensions: 1.57" x 1.18" x 0.087" (40 x30 x 22 mm)
  • Total Product Dimensions including Decora insert: 1.65" x 4.0625" x 1.4374" (42 x 103.2 x 36.5 mm)
  • Shipping Weight: 0.45 lb (0.20 kg)
  • Operating Temperature (Environment): +32° to +104°F (0° to +40°C)
  • Operating Humidity (Environment): 20% to 90%, Non-condensing
  • Storage Temperature (Environment): +14° to +140°F (-10° to +60°C)
  • Maximum Power Consumption: 2.5 watts
  • Power: Via USB output of host device
  • Vbus Power: 5V DC
  • High Power Device Extension (<500 mAdraw): 30 ft.
  • Low Power Device Extension (<100 mAdraw): 200 ft.
  • Self Powered Device Extension (0 mA draw): 330ft.
  • ESD Protection:
    • Contact Discharge: 2 kV
    • Air Discharge: 4 kV
    • IEC61000-4-2 1995
  • Regulatory: CE, RoHS
  • Diagnostic LEDs: Power and Status LEDs
  • Standard Warranty: 2 Years
  • Included Accessories: Installation Guide
  • Compatible Products: AVO-USB-H, PMI-A9B, USB-WP-H

NOTE: Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches.  Intelix specifications are based on straight-through cabling with standard-grade Cat 5e unless noted otherwise.
