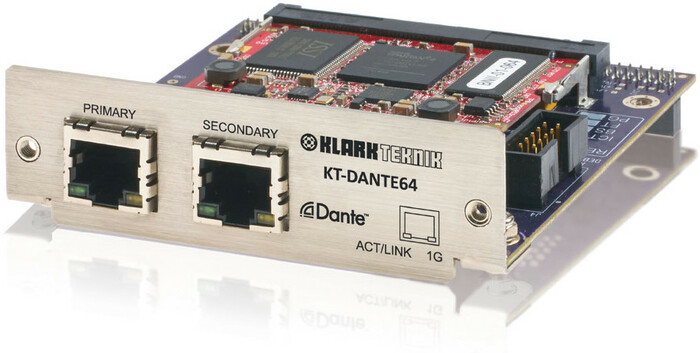

Klark Teknik KT-DANTE64
Dante Connectivity PCI Card

OUR PART #:  KT-DANTE64

The KT-DANTE64 Network Module is a groundbreaking, Ethernet compliant audio networking module, compatible with the KLARK TEKNIK DN9650 and DN9652 Network Bridges.
Learn More
Our Price: $749.99
Write the first review.
Klark Teknik KT-DANTE64
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The KT-DANTE64 Network Module is a groundbreaking, Ethernet compliant audio networking module, compatible with the KLARK TEKNIK DN9650 and DN9652 Network Bridges.  Using technology developed by Audinate, the KT-DANTE64 Network Module provides high performance direct to computer audio recording, flexible routing and true plug and play technology with automatic discovery.

Using CAT5/5e cable and standard networking components, KT-DANTE64 distributes multiple streams of audio plus integrated control data, ideal for the exacting demands of live sound environments.

KT-DANTE64 implements the latest Brooklyn II chipset from Audinate with up to 64 channels of bidirectional audio with low latency, low jitter and sub-microsecond synchronisation over Gigabit networks.

Klark Teknik KT-DANTE64 Features:

  • Audinate Dante network module in Cirrus Logic CobraNet CM-1 format
  • Up to 64 bidirectional channels @ 48 kHz and 32 bidirectional channels @ 96 kHz
  • Enables multichannel recording and playback through Dante Virtual Soundcard (PC or Mac computer)
  • Primary and secondary Ethernet interfaces for dual-redundant Dante networking
  • Operates from internal Dante network Precision Time Protocol (PTP) clock or external clock via host unit
  • Optional (sold separately) Dante Controller software for remote configuration (PC or Mac computer)
  • LED indicators monitor network activity and speed
  • 3-Year Warranty Program
  • Designed and engineered in England

Klark Teknik KT-DANTE64 Specifications:

  • Audio Capabilities:
    • Sample Rates: 44.1/48/88.2/96/176.4/192kHz
    • Audio Channels In/Out (44.1/48kHz): Up to 64 x 64 channels
    • Audio Channels In/Out (88.2/96kHz): Up to 32 x 32 channels
    • Audio Channels In/Out (176.4/192kHz): Up to 16 x 16 channels
    • Audio Flows In/Out: Up to 32 x 32 simultaneous streams
    • Digital Audio Format: TDM, I2S
    • Sample Bit Depth: 16, 24 or 32 bits per sample
    • Audio Buffering: Up to 2000 samples per channel
    • Clocking: Onboard word clock or external word clock
  • Interfaces:
    • Control Interfaces: SPI Master and Slave; GPIO; I2C
    • Network: RGMII/MII
  • Hardware:
    • Form Factor Card: edge module 4.5cm x 6cm (1.75" x 2.4")
    • FPGA: High performance Xilinx Spartan6 FPGA
    • Microprocessor: Soft-core Microblaze processor
    • Clock: High quality, low jitter onboard SiLabs
    • Ethernet Standard: RGMII/MII interface for Ethernet PHY or switch chip
    • Power: 3.3VDC @ 2W max
    • Physical Connector: Mini-PCI
