ETC/Elec Theatre Controls Ion 1000
Compact 1024 Outputs Lighting Console

OUR PART #:  ION-1000

With the ease, power and operational style of Eos® in a small, affordable package...
Learn More
Our Price: $9,155.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

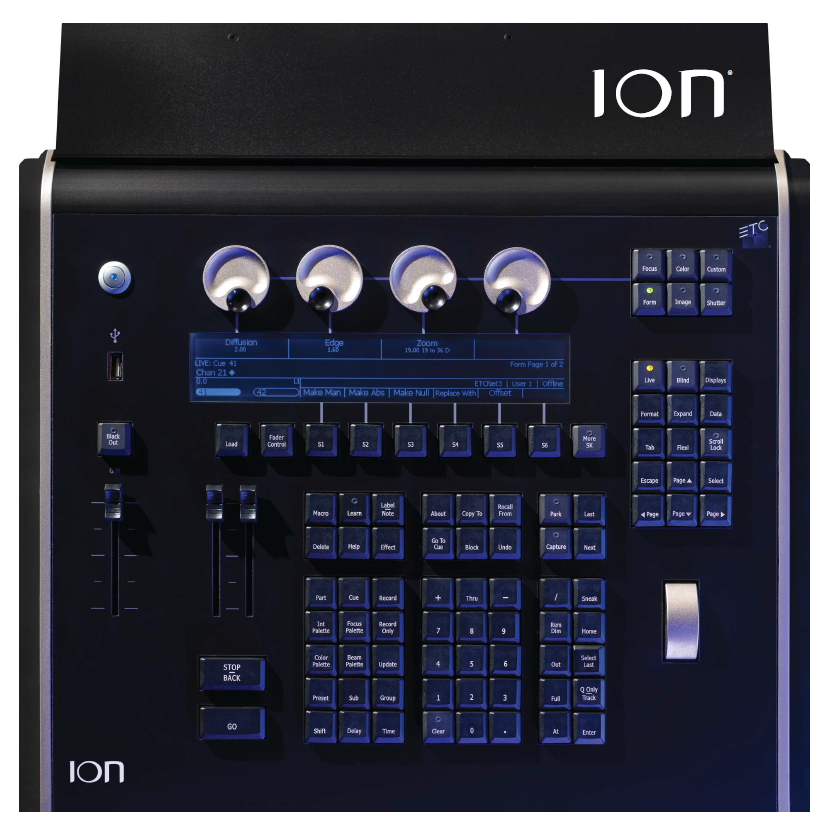

ETC/Elec Theatre Controls Ion 1000
Qty:
In Stock

Similar Products

With the ease, power and operational style of Eos® in a small, affordable package, the ETC Ion 1000's small footprint – 19" wide only – is the perfect solution for space-challenged environments and small venues.  Providing fully integrated control of conventional and moving lights, Ion packs a punch.

Elegant, highly intuitive and simple to use, Ion will satisfy the needs of beginners and pros alike.  But you don’t need a PhD in Ion to use it.  Start with the everyday (channel 5 at full) and let the full potential of Ion – like the powerful effects package, marking and timing functions – unfold with your experience.  And it's an easy step from Ion to Gio® or Eos, so the knowledge gained will work for you professionally for years to come.

Ion sports a generous programming keypad, dedicated encoders for non-intensity parameter control, a grand master and blackout button, as well as a master split fader.  For more hands on control, Ion hosts up to six USB fader wings – the 1x20, 2x10 and 2x20 - for a total of 300 additional submasters with paging controls.  The desk can support one or two external high-resolution DVI monitors, which can also be touch- or multi-touch screens.

The Ion supports 10,000 channels, which can be numbered from 1 to 99,999.  A networked Ion system can support four discrete control inputs, including a combination of Ion desks, Ion Remote Processor Units - for synchronized backup or stand-alone lighting applications, Net3 Remote Video Interfaces or PCs/Macs running the Eos Family Client Software.  Remote control is also provided with the Net3 Radio Focus Remote, iRFR or aRFR.

Use Ion in a stand-alone system or as a remote programming station for an Eos or Gio system.  When Ion is used as a client in an Eos or Gio system, it supports the full output of that host system.

ETC Ion Software Features:

  • Dedicated master playback fader pair
  • Dedicated grand master and blackout switch
  • 999 cue lists
  • 200 active playbacks
  • 300 submasters
  • 4x 1000 palettes (Intensity, Focus, Color, Beam)
  • 1000 presets, effects and macros
  • 4 pageable encoders
  • Channel summary or table views, user configurable in live/blind
  • Blind spreadsheet views
  • Offline programming on PC (Windows 7 or XP) and native on Macintosh (Intel)
  • Data import from ETC Obsession, Express/ion, Emphasis, Congo and Strand Show files via ASCII
  • Show file compatibility with Eos and Element
  • Client/server networking and synchronized backup

ETC ION Features:

  • Supports up to two high-resolution DVI monitors
  • Integral LCD for soft keys and non-intensity parameter control
  • 2x DMX512 outputs, RDM ready
  • ETCNet2 and Net3 native
  • Artnet and Avab UDP optional
  • Hard disk memory and USB compatible external storage
  • MIDI In/Out (additional time code functions via external gateways)
  • Contact Closure Triggers
  • 5 multipurpose USB bus (pointing devices, printer, mouse, keyboard, touchscreens, flash drives)
  • Audio In/Out
  • Phone remote control

ETC ION-1000 Specifications:

  • System Capacity:
    • 1,024 to 6,144 outputs, upgradeable in 512 increments
    • 16,000 Channels
    • 10,000 Cues
    • 999 Cue Lists
    • 200 Active Playbacks
    • 999 Submasters
    • 4x 1000 Palettes (Intensity, Focus, Color, Beam)
    • 1000 Presets (all palette)
    • 1000 Groups
    • 1000 Effects (relative, absolute or step)
    • 1000 Macros
    • 1000 Snapshots
    • 1000 Curves
    • 1000 Color Paths
    • Supports two external DVI monitors or one Display Port monitor at 1280x1024 minimum resolution or multi-touch screen control
    • Solid-state hard drive
    • USB ports for flash drives, pointing devices, keyboards
  • Interfaces:
    • 2 DMX-512 / RDM Ports
    • Ethernet (ETCNet2™, Net3™,Artnet and Avab UDP output protocols)
    • Contact Closure triggers via D-Sub connector
    • Two DVI connectors support two external DVI displays (1280x1024) with optional touch- or multi-touch screen control
    • One Display Port connector (Note: only 2 of Ions 3 monitor ports may be used at once)
    • Seven multipurpose USB ports
    • Phone Remote
    • Net 3 Radio Focus Remote
    • MIDI In/Out (Timecode, Show Control)
    • Additional MIDI Timecode, Show Control through Gateway
    • SMPTE Timecode through Gateway
    • Additional contact closure (12 analog inputs, 12 SPDT contact outputs, RS-232) through Gateway
    • One eSATA port
    • OSC Transmit and Receive
    • UDP Transmit and Receive
  • Dimensions: 5.2" H x 17.9" W x 18.2" D (132 x 455 x 462 mm)
  • Weight: 20.35 lbs (9.23 kg)
