Teradek TER-BOLT-732
Pro Wireless HD-SDI Video 1Trns 2Rcv

OUR PART #  TER-BOLT-732

Our Price: $3,401.75
List Price: $3,490.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The Teradek BOLT-732 is a professional wireless latency-free 3G-SDI transmitting/receiving system that includes 1 transmitter and 2 receivers.  It's capable of transmitting 4:2:2, 1080p60 video up to 300ft.  Bolt transmits uncompressed video using WSDI Pro™ (5GHz), and can coexist with other wireless equipment by dynamically adjusting the frequency bands used in real time.

For optimal performance in challenging RF environments, Bolt systems can utilize Dynamic Frequency Selection (DFS) to avoid interference. As an added bonus, Bolt Pro units can pass metadata and fan control over the wireless SDI link.

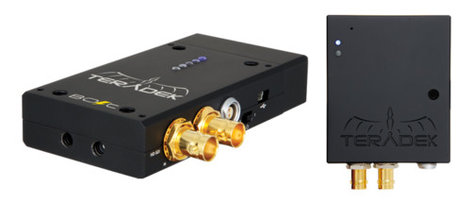

Bolt transmitters are housed in a milled aluminum chassis with multiple 1/4" mounting holes. The receiver is enclosed in a durable ABS plastic shell. The transmitter requires approximately 4W of power, while the receiver consumes only 6W. To power these units for long periods of time, Bolt ships with a Lemo to P-tap cable that can be used to connect with external power sources such as V-mount or AB Gold-mount batteries.

NOTE: Actual product may vary in appearance slightly from that shown in picture.

Teradek BOLT-732 Features:

  • Transmitter:
    • Low power ~4.5W
    • Can coexist with WiFi and 5GHz cordless phones
    • Chargeable over mini USB port or DC input
    • Milled aluminum chassis
    • Multiple mounting options with 1/4" holes
    • Hot-shoe mount
    • 2 channel audio
  • Receiver:
    •  Dual SD/HD/3G-SDI outputs or single HDMI output
    •  Low power ~6W
    • 1/4" Through-hole for easy mounting

Teradek BOLT-732 Specifications:

  • Transmitter:
    • Resolutions up to 1080p60
    • Wireless range:  up to 300 ft.
    • Lemo 6-28V DC Input (Pin 1 GND, Pin 2 +DC, 0B 302 series Lemo)
    • Encryption:  AES128
    • Weight:  7 oz.
    • Size:  58mm x 110 mm
    • Temperature:  0-50 deg C
    • WSDI Pro™ (5GHz)
  • Receiver:
    • Resolutions up to 1080p60
    • Lemo 6-28V DC
    • Size:  75mm x 110mm
For 2nd Generation BoltTeradek SKB Protective Case For 2nd Generation Bolt

This protective case constructed by SKB is designed for 2nd Generation Teradek Bolts. The case can carry one transmitter and up to two receivers.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$148.64List Price: $150.00

6 ft AC Adapter Cable with 2-Pin Lemo ConnectorTeradek BIT 056 6 ft AC Adapter Cable with 2-Pin Lemo Connector

Teradek's BIT 056 is a 6-foot adapter cable with an 18-Watt AC adapter on one end and a 2-pin Lemo connector on the other. Includes interchangeable, international AC plugs and is compatible with all Teradek Bolt transceivers and Cube ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$130.00
