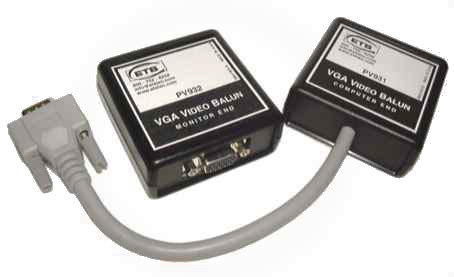

ETS ETS-PV930
Active RGBHV to VGA Baluns

OUR PART #:  ETS-PV930

The ETS PV974G Active VGA Video Balun Set allows computer video signals that adhere to the VGA/ SVGA/XVGA standards to be transmitted over Category 5 or better UTP wiring.
Learn More
Our Price: $145.96
List Price: $185.00
You save 21%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

ETS ETS-PV930
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ETS PV974G Active VGA Video Balun Set allows computer video signals that adhere to the VGA/ SVGA/XVGA standards to be transmitted over Category 5 or better UTP wiring. All modes and resolutions operate normally. Distance and quality of transmission are dependent on type of cable used and monitor sync circuitry. The circuitry in the PV930 set of VGA Video baluns is fully passive, requiring no external power.

NOTE: This product does not work with most LCD and other flat panel displays. For running multiple monitors and/or daisy-chaining applications, please look at the PV937-2 Active VGA product set.

Applications:

  • Meeting Halls
  • Churches
  • Schools
  • Classrooms
  • Auditoriums
  • Information Kiosks
  • Monitoring Stations

ETS ETS-PV930 Features:

  • Transparent operation
  • Compatible with all VGA/ SVGA/XVGA modes
  • Supports EPA “Energy Star” standard
  • Rugged plastic cases
  • Made in USA
  • 100% tested

ETS ETS-PV930 Specifications:

  • Bandwidth: Flat to 60 MHz (RGBHV)
  • Connectors:
  • 15p HDD to RJ45
  • Red : HDD 1(& 6) to 1 & 2 RJ45
  • Green: HDD 2 (& 7) to 4 & 5 RJ45
  • Blue: HDD 3 (& 8) to 7 & 8 RJ45
  • H & V sync: HDD 13, 14 to 3 & 6 RJ45
  • Distance: Resolution 1024 x 768 – 490 ft
  • Dimensions:
  • 66mm x 66mm x 28mm (PV931, PV932)
  • + 6” pigtail on PV931
  • Net Weight: 0.2kg

NOTE: Results may vary depending on quality of cable as well as monitor circuitry. Category 5e or better cable recommended.
