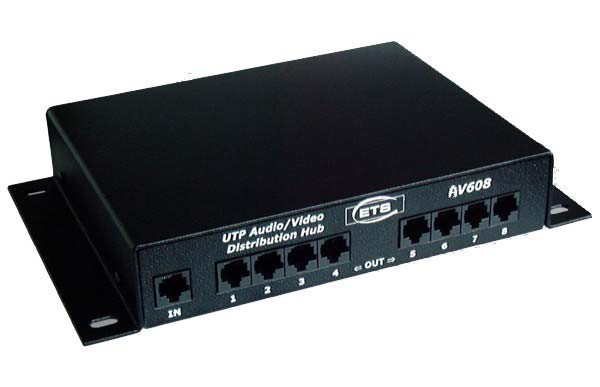

ETS ETS-AV608
8-Ch Audio/Video Distribution Hub

OUR PART #:  ETS-AV608

The ETS CAT5 A/V Broadcast System is a UTP Audio/Video Distribution Hub.
Learn More
Our Price: $535.08
List Price: $625.00
You save 14%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

ETS ETS-AV608
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ETS CAT5 A/V Broadcast System is a UTP Audio/Video Distribution Hub. It has baseband video with two channels of line-level audio transmit through the distribution amplifier, creating 8 out- put sets (video + stereo audio) from a single source. The powered AV608 can be cascaded twice (three tiers) yielding a total distribution of 512 displays from a just one input source.

NTSC, PAL, SECAM or CCTV signals are converted to and from UTP using standard ETS AV900 or AV901 Baseband Audio/Video Baluns. Alternatively, the AV602 or 603 Isolated Video/Audio Source Balun may be used between the signal source and the first AV608. The AV602 or 603 provides full isolation of the video signal, preventing the visual artifacts that can be caused by ground loops.

The AV600 System supports color video and stereo audio over a total run length in excess of 330 meters (inclusive of all cable segments) on Category 5 or better cable. Black and white signals will typically be supported up to 750 meters.

Features:

  • Run video and stereo audio signals over Cat5 wiring
  • Up to 512 outputs possible from a single source
  • For efficiency, the system balances the input signal, distributes on UTP, and converts back at each display
  • Complete system design flexibility, with components that can be 100’s of feet apart
  • Low power requirements for the Hubs, display baluns need no external power
  • Made in USA 100% tested

Specifications:

  • Dimensions: 260 x 165 x 32 mm (10.3 x 6.5 x 1.3 in)
  • Net Weight: AV608: 1.5 kg (3.4#)
