Product Overview

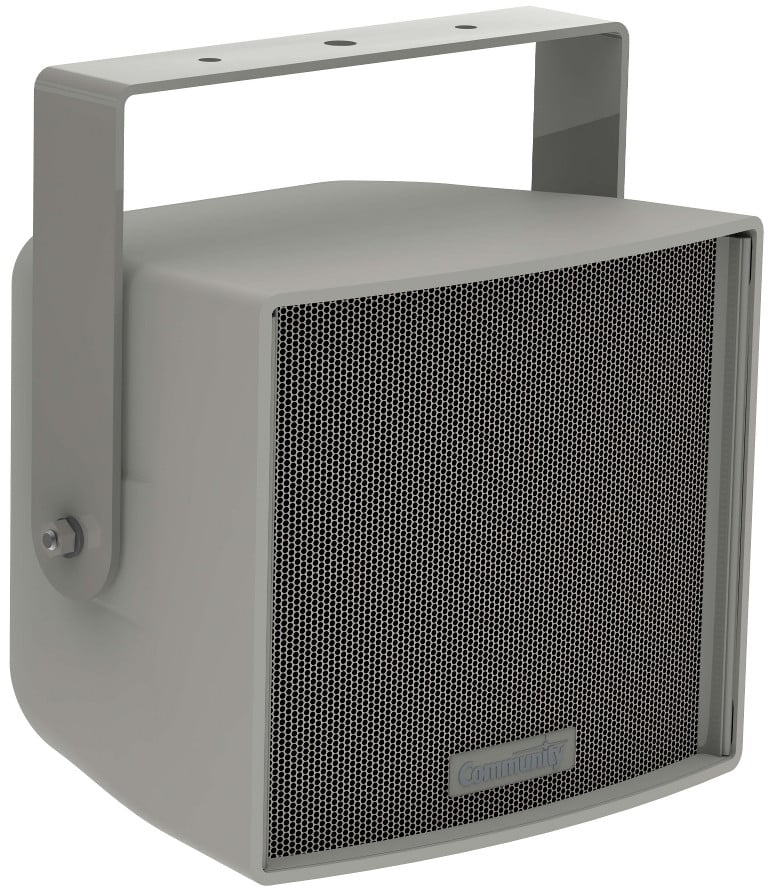

The Community R.15COAX is a two-way, full-range loudspeaker system designed to provide high-quality voice and music reproduction in applications requiring extreme weather resistance. It is designed to withstand long-term exposure to tough, environmental conditions and to provide performance normally associated only with indoor loudspeakers. The R.15COAX has a 1.25" (32mm) exit HF compression
driver and an 6.5" (165mm) carbon ring cone LF driver. The HF assembly is coaxially mounted with the LF driver allowing wide 100° coverage with low distortion. The flangeless cone design provides a cone area nearly equivalent to a typical 8" driver cone.
The Music / Voice switch provides an out-of-the-box selectable response allowing for additional application flexibility. The design uses Community's proprietary Tru-Phase phase plug to provide wide dispersion, low distortion and increased intelligibility. The enclosure is sealed to provide maximum vocal clarity and increased intelligibility. The sealed enclosure also provides supreme weather protection for all of the interior components.
Community R.15COAX Features:
- Excellent musicality and intelligibility, and low distortion in an extremely compact enclosure
- Weather-resistant, compact, matte finish paintable high-impact ABS plastic modified-trapezoidal enclosure
- NeverWet™ treated grille and LF driver cones, polymer HF diaphragm, and moisture-sealed crossover
- Corrosion-resistant zinc-rich epoxy dual-layer powder-coated steel grille and low-profile yoke
- Real compression driver on Tru-Phase waveguide
- 120W Autoformer (standard), selectable 8 ohm or 70V/100V operation
- High sensitivity, high output
- Five-year product warranty / Fifteen-year enclosure warranty
Community R.15COAX Specifications:
- Loudspeaker Type: Full-range, two-way, coaxial, weather-resistant
- Operating Range: 90 Hz to 16 kHz (-10 dB)
- Frequency Response: 125 Hz to 12.5 kHz (-3 dB)
- Max Input Ratings: 150W RMS, 300W Program, 35 volts RMS, 69 volts momentary peak
- Autoformer Taps:
- 70V: 120W, 60W, 30W, 15W and low impedance
- 100V: 120W, 60W, 30W
- Maximum Output:
- Music: 116 dB (122 dB peak)
- Speech: 117 dB (123 dB peak)
- Sensitivity (1W / 1m) Free Space SPL:
- Music: 94 dB(125 Hz - 10 kHz), 92 dB (250 Hz - 4 kHz)
- Speech: 95 dB (125 Hz - 10 kHz), 93 dB (250 Hz - 4 kHz)
- Nominal Impedance: 8 ohms, 4.2 ohms @12.5 kHz minimum
- Nominal Beamwidth (-6dB): 100° x 100° , 2 kHz to 10kHz
- Axial Q / DI: 13.2/11.2, 2 kHz to 10 kHz
- Crossover Frequency: 1.3 kHz
- Recommended High Pass: 90 Hz 24 dB / Octave
- Recommended Amplifier : 300W to 450W at 8 ohms
- Coaxial Transducers:
- Low Frequency: 1x 6.5" Carbon ring NeverWet treated cone, 2" VC
- High Frequency: 1x 1.25" exit compression
- Input Connection: NL4 Speakon-type connector and 2-position terminal strip for low impedance or constant voltage operation
- Controls: 5-position wattage/low impedance selector switch, Music / speech switch
- Enclosure: ABS plastic, matte finish, paintable
- Finish: Light Grey
- Mounting/Rigging Provisions: Two M8 rigging points, zinc-rich epoxy dual-layer powder-coated yoke, included integral safety cable mounting point
- Grille: 3-layer Weather-Stop featuring NeverWet treated polyester mesh, foam, zinc-rich dual-layer powder coated perforated steel color-matched to enclosure
- Input Panel Weather Cover: Color-matched ABS plastic with 13.5mm ID gland nut installed in 0.82" knockout
- Environmental: IP55W per IEC 529 at 5° down-tilt, designed to MIL-STD-810G
- Dimensions: 9" H x 10.15" W x 10.2" D (229 x 258 x2 59 mm)
- Loudspeaker Unit Weight: 17 lbs (7.7 kg) with included yoke
- Shipping Weight: 21 lbs (9.5 kg)
