Cables To Go 56784

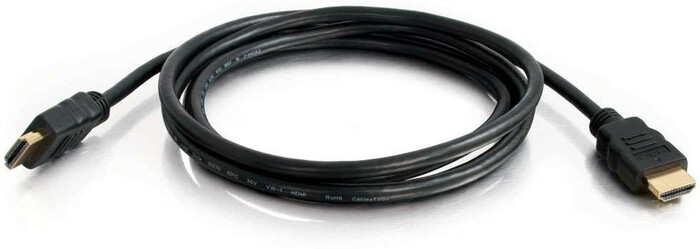

10 ft High Speed HDMI Cable with Ethernet

OUR PART #:  56784

The C2G High Speed HDMI with Ethernet Cable is perfect for home theater or desktop audio video applications requiring high speed HDMI features and video resolutions up to 1080p.
Learn More
Our Price: $8.59
List Price: $14.99
You save 43%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Cables To Go 56784
Qty:
Similar Products

The C2G High Speed HDMI with Ethernet Cable is perfect for home theater or desktop audio video applications requiring high speed HDMI features and video resolutions up to 1080p. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection for accessing interactive online content or updating device firmware. Experience the latest HDMI features including:

  • 4K@50/60, (2160p), which is 4 times the clarity of 1080p/60 video resolution
  • 3D video, Deep Color and x.v. Color™
  • Dolby® True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience
  • Up to 1536kHz audio sample frequency for the highest audio fidelity
  • Simultaneous delivery of dual video streams to multiple users on the same screen
  • Simultaneous delivery of multi-stream audio to multiple users (up to 4)
  • Support for the wide angle theatrical 21:9 video aspect ratio
  • Dynamic synchronization of video and audio streams
  • CEC extensions for control of consumer electronics devices through a single control point

This fully-functional, high bandwidth cable is tested to perform at industry standards and is backed by a lifetime warranty.

Note: Both the source device and display must support a HDMI feature in order to pass that feature through this cable

Electrical Characteristics:

  • Nominal Velocity of Propagation - 10.2Gbps
  • DC Resistance - 300V
  • Dielectric Strength - AC 500V/minute
  • Insulation Resistance - 100 Ohms
  • Nominal Attenuation - 300kHz-825MHz - <5dB,825MHz-2.475GHz - <5dB,2.475GHz-4.125GHz - <12dB, 4.125GHz-5.1GHz -<20dB
  • HDMI (3D, Deep Color, x.v.Color™, Dolby® True HD, and DTS-HD MasterAudio), Full 1080p resolution
  • 4K@50/60, (2160p), which is 4 times the clarity of1080p/60 videoresolution
  • 3D video, Deep Color and x.v. Color™
  • Dolby® True HD, DTS-HD Master Audio and up to 32 audio channels for amulti-dimensional immersive audio experience
  • Up to 1536kHz audio sample frequency for the highest audio fidelity
  • High bandwidth (340 MHz/10.2 Gbps) for high speed data transfer
  • HDMI-CEC system control compatibility
  • HDMI Ethernet Channel (when used with HDMI Ethernet channel supportedsource and sync equipment).

Physical Characteristics:

  • Voltage Rating - 30V
  • Minimum Bend Radius - 60°
  • Temperature Rating - 80°C
  • Operating Temperature Range - -20° - 80°C
  • Storage Temperature Range - -25° - 85°C
  • Approvals - RoHS Compliant
  • Package Type - Polybag
  • Conductor 1 (5 pair):
    • Conductor Type - 30AWG (7/0.10), Tinned Copper
    • Insulation - Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D. - 0.8mm
    • Drain Wire - 30AWG (7/0.10), Tinned Copper
    • Shield - Aluminum Foil, 100% Coverage
  • Conductor 2 (4 conductors):
    • Conductor Type - 30AWG (7/0.10), Tinned Copper
    • Insulation - HDPE, Yellow, Red, Green, Purple, O.D. - 0.6
  • Overall Cable:
    • Drain Wire - 30AWG (07/0.10), Tinned Copper
    • Foil Shield - Aluminum Foil, 100% Coverage
    • Braided Shield - 16/4/0.12, Al/Mg
    • Jacket - PVC, Black, O.D. - 6.0 ± 0.2mm
  • Connectors (2):
    • Connector Type - HDMI - Type A
    • Pin Construction - Phosphor Copper
    • Plating - 1µm Gold
    • Dimensions (HxWxL) - 10.0 x 20.1 x 37.1mm
