Gepco CT604/500-SEG-20 20 ft Segment of 23 AWG, 500 MHz CAT6 Wire

OUR PART #: CT604/500-SEG-20

Copied to clipboard

Gepco category 6 cables feature designs that meet or exceed the latest TIA/EIA standards... ...Read more

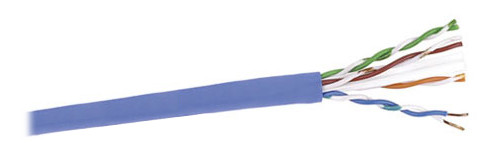

Gepco CT604/500-SEG-20 20 Ft Segment Of 23 AWG, 500 MHz CAT6 Wire Image 1
Gepco CT604/500-SEG-20 20 Ft Segment Of 23 AWG, 500 MHz CAT6 Wire
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Gepco category 6 cables feature designs that meet or exceed the latest TIA/EIA standards, thereby providing reliable interconnect solutions for the latest high speed protocols and formats. Each cable is designed to meet specific criteria for PSNEXT, PSARC, and RL (among others) up to 500 MHz bandwidth. Unique to the category 6 is a thermoplastic pair separator that improves both PSUM and ELFEXT performance. Each cable type is UL rated and available in plenum or riser constructions to enable installation in a variety of locations.

Applications:

  • Ethernet or Gigabit Ethernet
  • High Data-rate Applications

Gepco CT604/500 Features:

  • Low Insertion Loss, Crosstalk, and Return Loss
  • Precision 100 ohm impedance
  • Four Twisted-pairs
  • Characterized up to or Beyond TIA/EIA Standards
  • Category 6 compliant
  • ETL Verified

Gepco CT604/500 Specifications:

  • # of Pairs: 4
  • Nominal OD: .240"
  • Conductors: 23 AWG Solid BC
  • Insulation: PE
  • Jacket: PVC with Central Spacer
  • UL Type: CMR
  • Weight: 27 lbs/Mft
