Sony RCP-1501
Remote Control Panel (Standard)


Call for price! Not available online.
List Price: $6,620.00

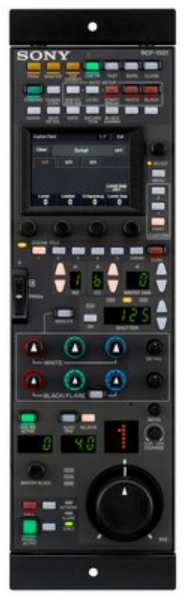

The RCP-1501 from Sony is a highly versatile control panel with a touch panel LCD display and user friendly buttons which makes it a remote control panel that offers both ease of operation and multi-functionality which compares favorably with the MSU. The iris and master black adjustment block employs Dial (Knob) type control. Illuminated buttons with high visibility flash and light to notify you of the operation status to enable operation even in dark locations. By connecting the system using Ethernet cable, large scale of the system operation can be achieved Up to 4 units can be mounted in a SONY MSU19" Rack Drawer.

Sony RCP-1501 Features:

  • Dial( Knob) type IRIS/Master Pedestal Control
  • Both CCA cable( 8 pins connector) and or EtherNetcable operation
  • All-new design of menu.GUI and control buttons
  • Customizable menu
  • Successor model of RCP-751

Sony RCP-1501 Specifications:

  • Power Requirements: 10.5 V DC to 30 V DC
  • Operating Temperature: 5°C to 40°C (41°F to 104°F)
  • Mass: 1.8 kg (3 lb 15 oz)
  • Dimensions (W x H x D): 102 x 310 x 85 mm (4 1/8 x 121/4 x 3 3/8 inches)
  • Remote Control:
      -  CCU/CNU: 8-pin multi-connector,female (x1)
      -  AUX: 8-pin multi-connector, female(x1)
      -  EXT I/O: 9-pin, female (x1)
