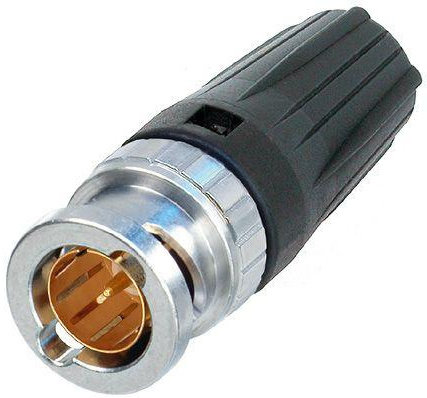

Neutrik NBNC75BRU11
rearTWIST BNC Male Cable Connector for Cables with 4-8mm OD

OUR PART #:  NBNC75BRU11

Neutrik's rearTWIST BNC cable connector offers a true 75 ohm design and is perfectly suitable for HD applications.
Learn More
Our Price: $2.43
List Price: $3.10
Save up to 34% when you order by quantity!
  • Buy 25: $2.19 each.
  • Buy 50: $2.12 each.
  • Buy 100: $2.04 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NBNC75BRU11
Qty:
Similar Products

Neutrik's rearTWIST BNC cable connector offers a true 75 ohm design and is perfectly suitable for HD applications.  The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable cables: Belden 1694F

Crimp size:

  • Pin: 1.6 mm (square)
  • Shield: 7.36 mm (hex)

Neutrik NBNC75BRU11 Features:

  • "rearTWIST Principle" locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
  • Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
  • True 75 Ohm design meets the stringent HDTV / DVD requirements
  • Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles
  • Snug-fit center pin insert provides tactile feedback
  • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
  • Excellent cable protection and retention
  • Precise Swiss machined brass parts for outstanding durability
  • Accessories include color coded boots in 10 standard colors, crimp tool and dies (all sold separately)

Neutrik NBNC75BRU11 Technical Information:

  • Contact resistance: = 3 mOhm (inner) (inner)
  • Comment: = 2
  • Dielectric strength: 1.5 kV dc
  • Impedance: 75 ohm
  • Insulation resistance: > 5 GOhm
  • Rated voltage: 500 V
  • VSWR:
    • = 1.050 / > 32 dB up to 1 GHz
    • = 1.065 / > 30 dB up to 2 GHz
    • = 1.100 / > 26 d
  • Cable O.D.: <8 mm
  • Cable retention: > 30 N (Center)
  • Crimp Mass: 7.36 Hex crimp (shield) acc. MIL22520/5-41(A)
  • Crimp size: 1.6 Square crimp (pin) acc. IEC 60803 (die designation 2)
  • Insertion force: < 25 N
  • Lifetime: > 1000 mating cycles
  • Locking device: Bayonett
  • Cable anchoring: Jacket crimping
  • Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
  • Insert: PTFE
  • Shell: Brass (CuZn39Pb3)
  • Shell plating :Optalloy®
  • Standard compliance: IEC 6016908, MIL 348A
  • Temperature range: -30 °C to +85 °C
  • Contact crimpability: Complies with IEC 60803 and IEC 60352-2
