Atlas Sound GPN1200K
TSD-GPN1200 Sound Masking Generator Kit with Power Supply and Rack Mount

OUR PART #:  GPN1200K

Atlas Sound's GPN1200K is a sound masking kit that includes their TSD-GPN1200 sound masking generator, TSD-PS24V250MA 24V DC power supply, and TSD-RMK 1 RU rack mount kit.
Learn More
Our Price: $241.99
List Price: $301.99
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound GPN1200K
Qty:
In Stock

Similar Products

Atlas Sound's GPN1200K is a sound masking kit that includes their TSD-GPN1200 sound masking generator, TSD-PS24V250MA 24V DC power supply, and TSD-RMK 1 RU rack mount kit.

Atlas Sound GPN1200K Features:

  • Balanced Line Output Plus 4W, 70.7V Output
  • Global Input Voltage
  • 1RU Height
  • Supports up to 4 TSD Series Modules
  • Adjustable Gain and Hi-Cut Filter
  • EQ & Gain Bypass for Line Output
  • Black Brushed Aluminum Finish
  • Pink or White Noise Source
  • Security Covers Included for All Rear Panel Controls

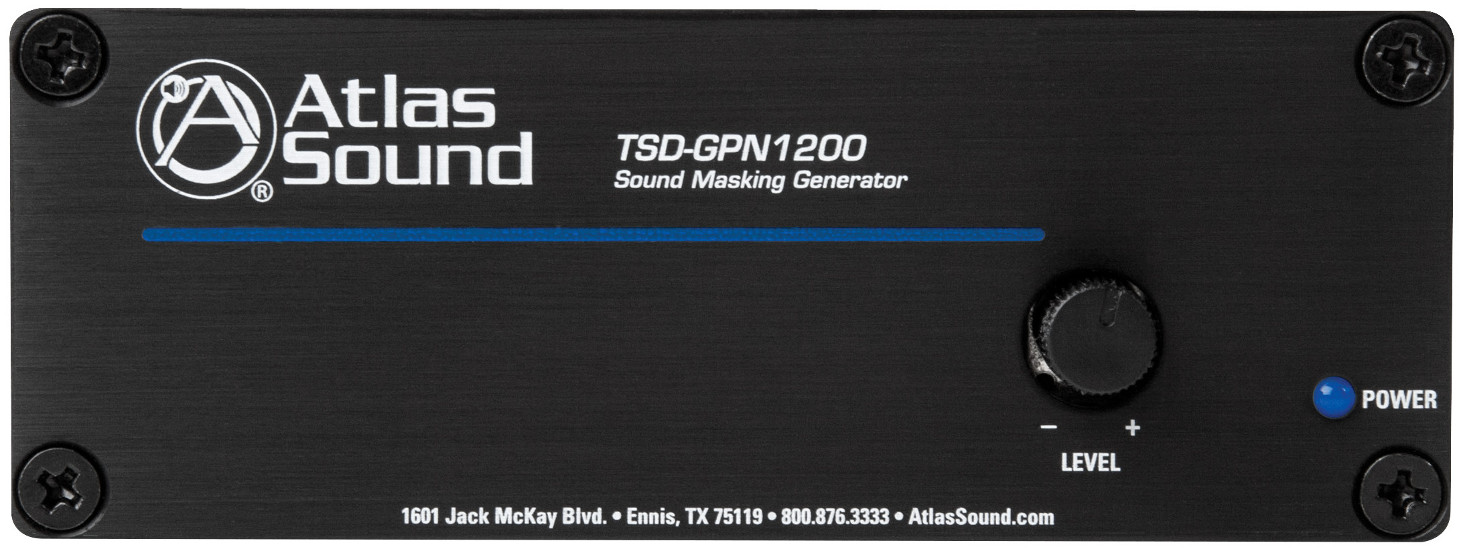

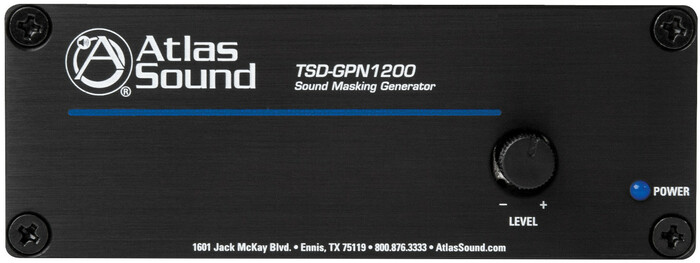

Atlas Sound TSD-GPN1200 Sound Masking Generator

The Atlas Sound TSD-GPN1200 sound masking generator is perfectly suited for basic sound masking systems. The analog topology design eliminates repeating cycles commonly found in other manufactures low cost digital designs.

The TSD-GPN1200 allows selection between pink or white noise sources and incorporates a variable balanced outputto match input requirements of Atlas Sound equalizers and amplifiers. In addition to the line level output, a 4W, 70V output is provided to power up to six masking loudspeakers tapped at .5W each.

A variable hi-cut filter with operating range between 1kHz and 8kHz at a slope of 6dB per octave supports equalization requirements for most basic Sound Masking systems. Both outputs may be used simultaneously allowing large zones tobe addressed with external equalization and amplification while a smaller zone is powered by the internal 70.7V amplifierwith spectrum control provided by the on board hi-cut filter.

Atlas Sound TSD-GPN1200 Specifications:

  • Line Output Impedance: 300 Ohm Balanced, 150 Ohm Unbalanced
  • Line Output Level: Max 500mV
  • Frequency Response: 20Hz - 20kHz, Line Out Pre EQ Only
  • EQ Filter: High Cut Variable,1kHz - 7kHz/6dB
  • 24VDC Power Requirement: 250mA
  • Dimensions: 1.5" H x 4" W x 2.5" D (39 x 101 x 70 mm)
  • Weight: 6 oz (0.165 kg)
