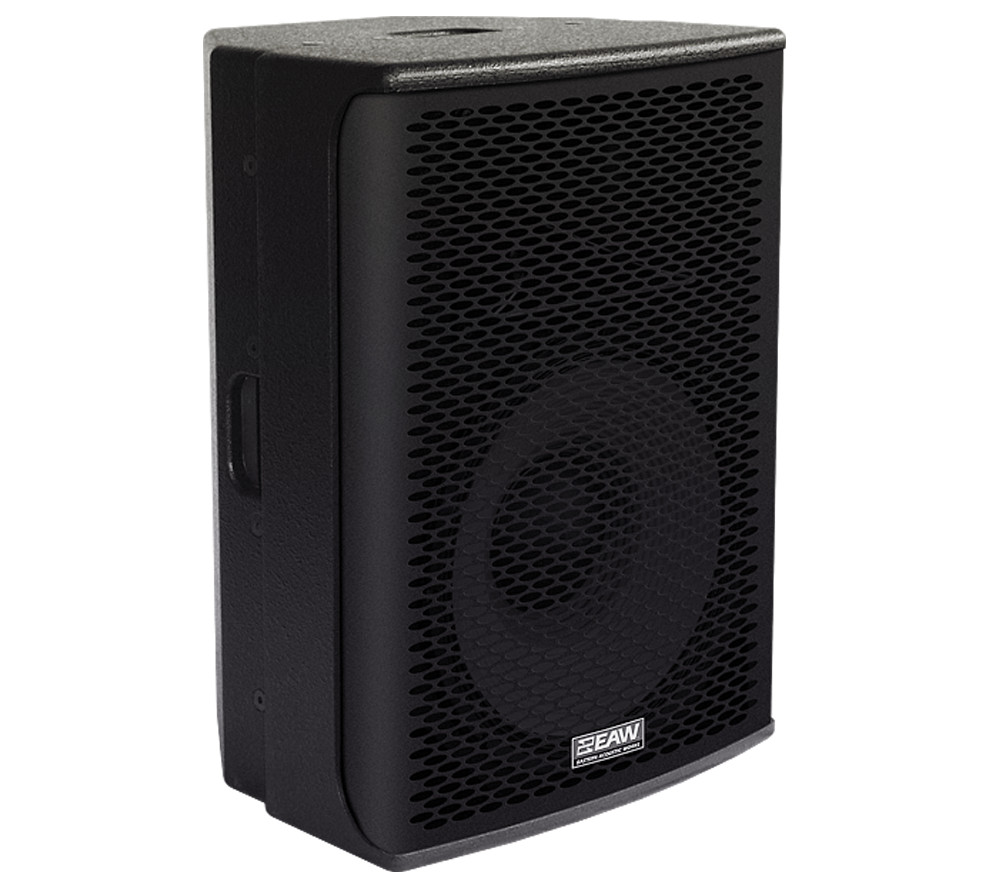

EAW JF56 2-Way Speaker, 600W, Black

The newest additions to the celebrated JF Series of 2-way loudspeakers redefine the concept of application flexibility. The integration of premium neodymium components and legendary crossover design in an incredibly adaptable package offers unprecedented utility. All models natively offer a combination of portable features and M10 installation points.

Available universal accessories include trim plates that hide handles and provide a connection point for u-brackets, quick release flytrack segments that integrate into any enclosure and adjustable legs for use as a stage monitor. Add revolutionary EAW Focusing in the UX8800 Processor for the pinnacle of performance in any venue.

EAW JF56 Features:

• Premium Performance
• Application Flexibility
• Neodymium Components
• NT upgrade capability
• Switch configurable powering modes

EAW JF56 Specifications:

• Subsystem:
  • Transducer: LF 1x 15 in. cone; HF 1x 1.4 in. exit, 3 in. voice coil compression driver
  • Loading: LF - Vented; HF - Horn-loaded
• Operating Mode:
  • Amplifier Channels: Single amp LF/HF; Bi-amp LF, HF
  • External Signal Processing: High Pass Filter; DSP w/ EAW Focusing
  • Operating Range (-10 dB, Hz): 47 – 20k
• Axial Sensitivity (1W @ 1m, dB SPL):
  • LF: 98
  • HF: 107
  • Full Range: 98
• Power Handling / Impedance (Watts @ Ohms):
  • LF: 650 @ 8
  • HF: 200 @ 8
  • Full Range: 650 @ 8
• Calculated Maximum Output Peak (dB SPL):
  • LF: 132
  • HF: 136
  • Full Range: 132
• Calculated Maximum Output Long Term (dB SPL):
  • LF: 126
  • HF: 130
  • Full Range: 126
• Nominal Coverage (degrees):
  • Horizontal: 60
  • Vertical: 45
• Subsystems:
  • LF: 15-in cone, vented
  • HF: 1.4-in exit compression driver, horn-loaded
• Powering: Switchable: bi-amplified/passive
