Radio Design Labs D-RC2ST
2 Channel Remote Control for STICK-ON Modules

OUR PART #:  D-RC2ST

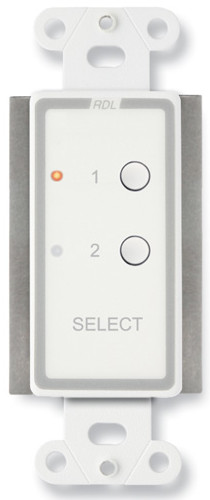

The front panel of the Radio Design Labs D-RC2ST features two push buttons with two associated LEDs.  Upon initial power-up, source 1 is selected.
Learn More
Our Price: $102.72
List Price: $137.39
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Radio Design Labs D-RC2ST
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The front panel of the Radio Design Labs D-RC2ST features two push buttons with two associated LEDs.  Upon initial power-up, source 1 is selected.  Touching the other button de-selects source 1 and immediately selects source 2.  An LED adjacent to each button shows which source is selected.

In a typical installation, the D-RC2ST may be used to select between two audio or video sources, or to route audio to two destinations.  To select between two audio sources, the D-RC2ST is connected to an RDL ST-SSR1 Solid-State Audio Switch.  For video switching, an RDL TX-MVX may be used.  For audio routing, an RDL ST-RX2 is used. In each of the above examples, only one output terminal is needed for triggering.  Therefore a single shielded pair (or 3-conductor cable) is required for remote connection.  For more complex switching networks, both outputs may be used.

In installations where ULTRASTYLE™ wall controls are preferred, use the RUC-4 Universal Remote Control.

Radio Design Labs D-RC2ST Features:

  • Remote Selection of 2 Audio Sources, Destinations orFunctions
  • Single-Button Selection for Each Source
  • Open-collector Switching of 1 of 2 Module Functions
  • 3-wire or 4-wire Remote Wiring
  • Professional Aesthetic Appearance
  • Companion to other RDL® Remote Controls

Radio Design Labs D-RC2ST Specifications:

  • Selectors (2): Momentary push buttons, (1 for eachchannel)
  • Indicators (2): Red LEDs, (indicates channelselected)
  • Connections: Detachable terminal block; Power input;open-collector outputs (25 mA current limited)
  • Ambient Operating Environment: -10° C to 55° C
  • Power Requirement: GROUND-REFERENCED, 24 Vdc @ 30 mA
  • Mounting: Mounts in standard US electrical box, RDLWB- or SMB- series boxes; cover plate available separately
  • Package Type: Cardboard Box
  • Package Dimensions: 3.625" x 4.625" x 2.125"
  • Shipping Weight: 0.365 lbs
  • WEEE weight: 0.215 lbs
  • Tariff code: 8517.62.0050
