Cables To Go 54311

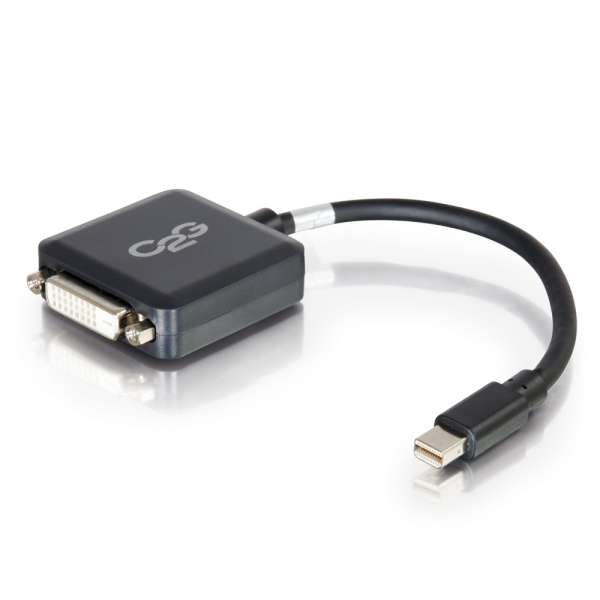

8in Mini DisplayPort Male to Single Link DVI-D Female Adapter Converter in Black

OUR PART #:  54311

Our Price: $15.97
List Price: $16.99
You save 6%!
Write the first review.
Cables To Go 54311
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The 54311 is adapter converter from C2G that is an ideal solution for adapting the Mini DisplayPort output of a small laptop or tablet so that it may be connected to a monitor which accepts a DVI-D input. This adapter converter carries a digital video signal, supports up to a 1920x1200 resolution and meets the requirements of high performance applications.

Cables To Go 54311 Features:

  • Adapts a Mini DisplayPort output to Single-Link DVI-D
  • Carries a digital video signal
  • Supports up to a 1920x1200 resolution

Cables To Go 54311 Specifications:

  • Color: Black
  • Warranty: 1 Year
  • Vendor: C2G
  • Weight: 0.094 LB

Electrical Specifications:

  • Voltage Rating: 30v
  • Conductor Resistance: @ 20°C max
  • Insulation Resistance: 10Mohm/km
  • Time Delay: 5.2ns/m (max)
  • Attenuation: 5.02dB @ 100-450MHz, 7.69dB @ 1GHz, 12.595dB @ 2GHz, 17.495dB@ 3GHz, 22.395dB @ 4GHz, 27.295dB @ 5GHz, 32.195dB @ 6GHz, 37.095dB @ 7GHz

Physical Specifications:

  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -25°C to 70°C
  • Approvals: CE
  • Warranty: Lifetime

Conductor (2 Conductor, 5 Pair)

  • Conductor: 32AWG (7/0.08TC)
  • Insulation: FM-PE, ID:0.63±0.05mm
  • Color: White/Brown, White/Red, White/Orange,White/Green, White/Blue
  • Drain: 32AWG (7/0.08TC), HD-PE ID:0.63±0.05
  • Shield: AL-Mylar Wrap, Coverage—100%

Conductor (5 Conductors)

  • Conductor: 32AWG (7/0.08TC)
  • Insulation: HD-PE, ID:0.5±0.05mm
  • Color: Red/Orange/Yellow/Green/White

Overall Cable

  • Jacket: PVC
  • Shield: AL-Mylar—Coverage 100%, Braid—16/9/0.12
  • Drain: 2:30AWG (7/0.08 BC)
  • OD: 5.2±0.
