Product Overview

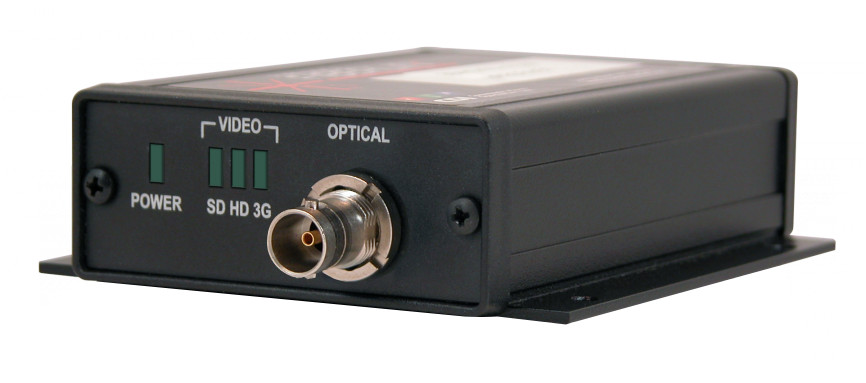

Communication Specialties, Inc.'s 3350-B7S, part of CSI's Fiberlink 3350 series, allows you to transmit 3G, HD or SD-SDI as per SMPTE 424M-2006, 292 and 259, with or without embedded audio and data, as well as DVB-ASI over one single mode or multimode fiber. Signals are equalized and re-clocked prior to fiber optic transmission. The 3350-B7S is the small footprint box version transmitter (it also comes in a card version-contact your Full Compass Sales Representative for more information) with an ST-type optical output connector, that features a re-clocked and equalized SDI loop through and the 3351 receiver features two re-clocked and equalized SDI outputs.
The 3350 Series is compliant with SMPTE 297-2006 and has the ability to operate seamlessly with Fiberlink Matrix and other SMPTE 297-2006 fiber optic compliant devices.
The 3350 Series is immune to pathological signals over the entire budget link and operating temperature range.
It's ideal for broadcast or corporate studios, OB vans, rental and staging, auditoriums, stadiums and theaters, airport or transportation hubs, distance learning, surgical or medical imaging and more!
Communications Specialties, Inc. 3350-B7S Features:
Communications Specialties, Inc. 3350-B7S Features:
Communications Specialties, Inc. 3350-B7S Features:
Communications Specialties, Inc. 3350-B7S Features:
- Signal is equalized and re-clocked prior to fiber optic transmission
- Transmitter features an equalized and re-clocked SDI loop through
- Receiver features two equalized and re-clocked SDI outputs
- Designed for fiber optic interoperability with other SMPTE 297-2006 fiber optic compliant devices up to 2.97 Gbps
- Immunity to pathological signals over entire link budget and operating temperature range
- Compliant with SMPTE 424M-2006, 259M-2006, 292-2006,297-2006
- Supports transmission of SMPTE 305M-2005, 310M-2004,344M-2000, DVB-ASI
- Supports both Single Mode and Multimode ( 62.5u &50u) fiber types
- Supports 3G/HD/SD-SDI inputs with embedded audio and data and DVB-ASI.
- 14db Optical Link Budget - 2.97 Gbps
- Wide operating temperature range: -10º C to +50º C
- Available in Box and Card versions
- Card version compatible with the Fiberlink® 6000A Rack Card Cage
- Designed and Manufactured in the USA by CSI
Communications Specialties, Inc. 3350-B7S Specifications:
- Serial Video BNC Input
- Number of Inputs: 1
- Data Rate Range: 19.4 Mbps to 2.97 Gbps
- Supported Standards: SMPTE 259M, 292, 297-2006, 424M-2006, 305M, 310M, 344M, DVB-ASI
- Re-clocked Data Rates: 270 Mbps (SMPTE 259M, DVB-ASI-270), 1.485 Gbps (SMPTE 292), 2.97 Gbps (SMPTE 424M-2006)
- Equalization: Automatic up to 100m of Belden 1694A at 3.0 Gbps, 200m at 1.485 Gbps and 350m at 270 Mbps
- Return Loss: >10dB up to 2.97 Gbps
- Serial Video BNC Loop Through
- Number of Loop-Throughs: 1
- Signal Level: 800mV ± 10%
- DC Offset: 0V ± 0.5V
- Rise/Fall Time:
- < 135 ps at 2.97 Gbps per SMPTE 424M-2006;
- < 270 ps at 1.485 Gbps per SMPTE 292;
- 0.4 ns to 1.5 ns at 270 Mbps per SMPTE 259M
- Overshoot: < 10% of amplitude
- Timing Jitter:
- < 0.2 UI at 270 Mbps; < 1.0 UI at
- 1.485 Gbps; < 2.0 UI at 2.97 Gbps
- Alignment Jitter:
- < 0.2 UI at 270 Mbps; < 0.2 UI at
- 1.485 Gbps; < 0.3 UI at 2.97 Gbps
- Re-clocking: At 270 Mbps, 1.485 Gbps & 2.97 Gbps
- Optical Output
- SMPTE 297-2006 Labeling: L-PC-ABCD-1310
- Connector: ST receptacle
- Wavelength: 1310nm (nominal)
- Emitter Type: FP Laser
- Output Power (Nominal):
- -3.5 dBm at 270 Mbps;
- -3.5 dBm at1.485 Gbps;
- -3.5 dBm at 2.97 Gbps
- Re-clocking: At 270 Mbps, 1.485 Gbps & 2.97 Gbps
- General Specifications
- Indicators: Power, Data Rate lock (3G, HD, SD/DVB-ASI)
- Dimensions: 5.21" x 3.50" x 1.15" (133mm x 89mm x 30mm)
- Weight: 6.9 oz. (196 grams)
- Slots in 6000A Card Cage: 1
- Power:
- 9-24 volts, AC or DC
- 1.6 watts, 5.46 BTU/Hr
- Operating Temperature: -10º C to +50º C
