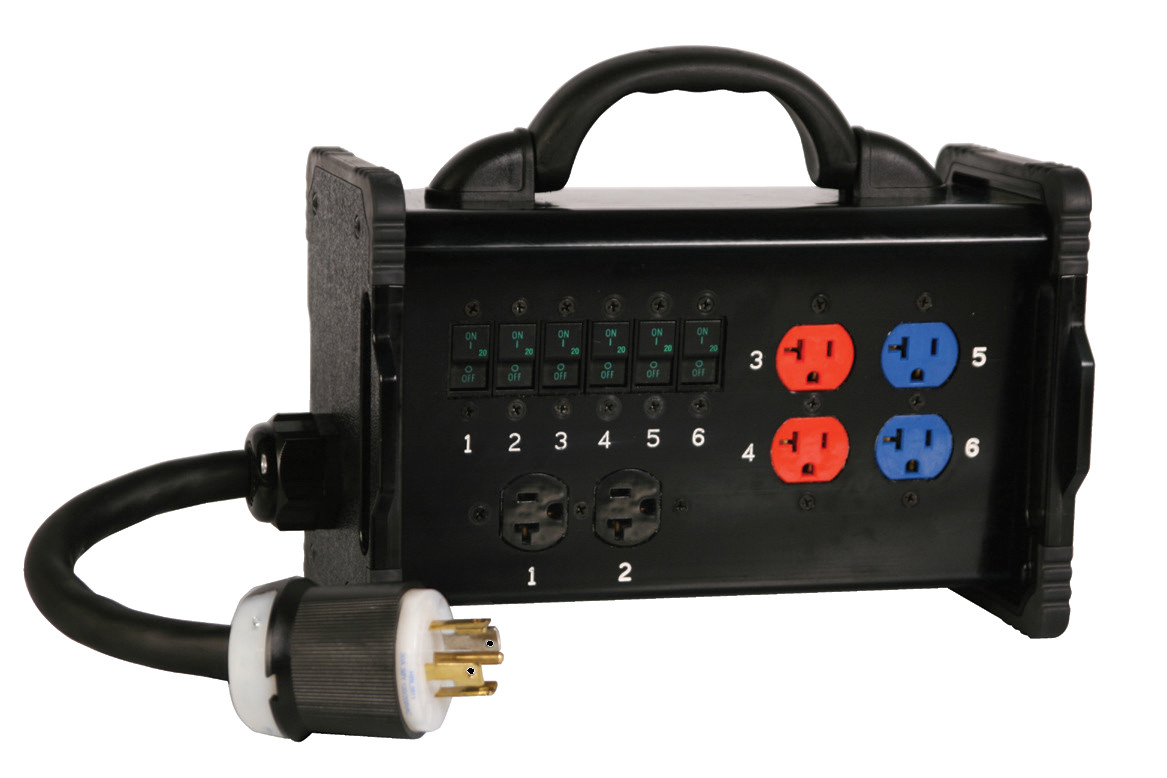

Lex Products Corp BNB3-3B
30 Amp 3 Phase Bento Box with Tail Input to (6) 20 Amp Circuits


30 Amp, 3 Phase, 4 Pole...
Learn More
Our Price: $584.08
List Price: $713.20
You save 18%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Lex Products Corp BNB3-3B
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

30 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC, Bento Enclosure, NEMA L21-30, 30 Amp locking plug on 12 inch 10/5 SOW-A tail to (3) NEMA 5-20, 20 Amp color-coded duplex receptacles split wired for (6) 20 Amp circuits, NEMA 1 Indoor

Fed from 30 Amp power, this box provides 20 Amp duplex receptacles for lights, audio equipment and tools for a wide range of applications.

LEX BNB3-B3 Features:

  • Hydraulic magnetic breakers help prevent nuisance tripping at higher temperatures
  • Stackable and compact for easy storage
  • Heavy-duty extruded engineered theromplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
  • Circuit breakers are mounted flush for easy access and numbered for easy circuit identification
  • Collapsible handle and end plate grips for easy handling in tight spaces

LEX BNB3-B3 Specifications:

  • Rating: 30 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) NEMA L21-30, 30 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC locking plug on 12 inch 10/5 SOW-A tail
  • Output: (3) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC color-coded duplex receptacles split wired for (6) 20 Amp circuits
  • Feed Thru: None
  • Overcurrent Protection: (6) 20 Amp hydraulic magnetic branch-rated circuit breakers
  • Enclosure Type: Bento
  • Dimensions: 11.5"L x 5.9"W x 7.6"H
  • Weight: 6.5 lbs.
