ETC/Elec Theatre Controls 4M36L-T
Track Mount Source Four Mini LED with 36-Degree Field Angle in Black

OUR PART #:  4M36L-T

ETC offers the 4M36L-T - a Source Four Mini LED that is a Track Mount, 36° field angle fixture that comes in black.
Learn More

Call for price! Not available online.

Similar Products

ETC offers the 4M36L-T - a Source Four Mini LED that is a Track Mount, 36° field angle fixture that comes in black. This 12W Source Four Mini LED features the same crisp optics, user-friendly functionality and sleek look of the legendary Source Four fixture, but in a compact format at a fraction of the size.

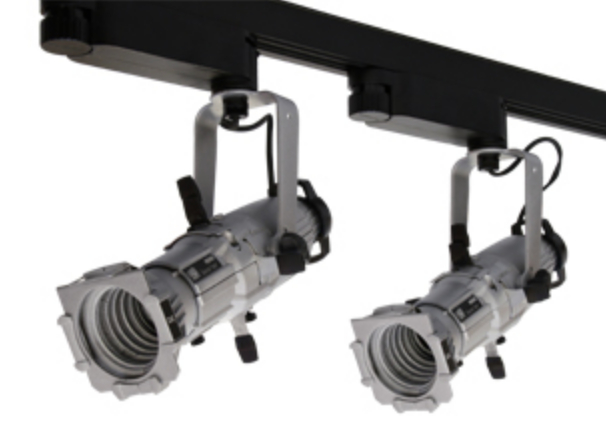

NOTE: Product shown in image is for illustrative purposes only. Actual product is black in appearance.

The Source Four Mini™ is everything you expect from the Source Four® brand – ease of use, superior optics, crystal-clear image projection and a bright, even field – but packaged in a tiny fixture that’s just one-third the size of a traditional Source Four. A mere nine inches long the Source Four Mini can go anywhere: museums, retail outlets, restaurants, light labs, children’s theaters, and other small scale installations where size matters.

The Source Four Mini is available in four field angles: 19°, 26°, 36° and 50°, with a 2.5-inch diameter lens. It comes in a portable version with a miniature C-clamp, a canopy-mount design with an integral transformer, or a track-mount design. There is also a low-voltage (12V) tungsten version. All Source Four Mini models include an E-sized pattern holder and a gel media frame, with a range of additional accessories.

Applications:

  • Museums
  • Retail stores
  • Restaurants
  • Lobbies
  • Light labs
  • Theaters

ETC Source Four Mini LED Features:

  • 19°, 26°, 36° and 50° field angles
  • 9” long, 2.5” diameter
  • Available in 50W tungsten/halogen MR16 lamp(5,000-hour life), 12V tungsten/halogen lamp, or 12W LED (35,000-hour life)
  • Portable, canopy-mount and track-mount versions
  • E-size pattern holder
  • Gel media frame
  • Rotating barrel ± 175°
  • Three-plane stainless-steel shutter blade assembly
  • Tool-free lamp replacement
  • Line-dimmable, forward or reverse phase
  • Insulated rear handle
  • Rugged die-cast aluminum construction
  • Black, white, silver or custom colors available

Additional Track Mount features:

  • Same great light designed for 2-circuit trackinstallation
  • ETL-Listed and compatible with EUTRAC-brand track
  • Black or white track adapter included (black adapter on silverfixture)

ETC Source Four Mini LED Specifications:

Physical

  • Die-cast aluminum construction (A380 grade)
  • Fine-texture, high-temperature powder-coated paint
  • Steel yoke with 0.406” diameter mounting hole
  • Rotating shutter assembly ±175°
  • E-size gobo pattern holder (included) - 37.5mm with a25.4mm image area
  • Stainless steel, full hard shutters in a tri-planeassembly, 0.40mm (A301 grade)
  • Fixed-beam angles to suit a range of throw distances
  • Tool-free tilt and beam adjustment
  • High-impact resistant, thermally insulated knobs andshutter handles
  • Captive accessory slot for pattern holder (included)
  • Dual captive accessory slots for media frame (included)
  • Track mount:
      -  Compatible andETL-listed for EUTRAC brand track
      -  EUTRAC (#98-549)two-circuit track adapter included
      -  LED factory-installed in color-matched adapter (black adapter for silver fixtures)
  • Black or white power lead

Electrical

  • Power at full intensity: 12W typical, 14W max
  • 18 AWG input wire size
  • Input voltage options:
      -  90-135V, 50/60Hz
      -  190-250V,50/60Hz
  • Dimmable (forward and reverse phase)
  • Inrush (first half-cycle):
      -  120V: 3A
      -  240V: 4A

Lamp

  • Cree LED (Available in 80+ and 90+ CRI)
  • Long-life lamp: 35,000 hours L70 lumen maintenance
  • 3000K color temperature

Optical

  • Fixed-beam options of 19°, 26°, 36° and 50° fieldangles
  • Projector-quality, high-contrast lenses
  • Beam edge continually adjustable hard to soft
  • Thermal: 0°C to +40°C

Weights

  • Portable: 2.7 lbs / 1.2 kgs
  • Install Canopy: 2.6 lbs / 1.2 lbs
  • Track Mount: 2.4 lbs.  / 1.1 kgs
