Gefen Inc DVI ELR Lite
DVI Extender via Cat5

OUR PART #:  EXT-DVI-1CAT5-SR

The DVI ELR Lite Extender over one CAT5 allows the extension of any DVI source to a monitor or touch screen display, up to 230 feet (70 meters) using a CAT-6A cable...
Learn More
Our Price: $493.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

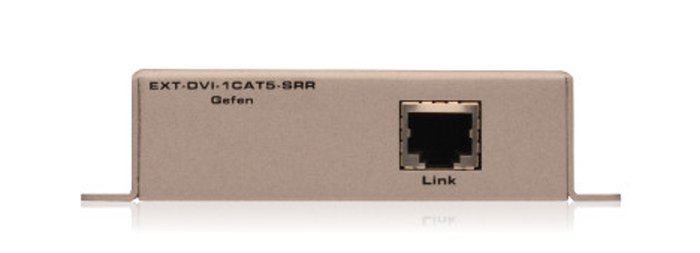

Gefen Inc DVI ELR Lite
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DVI ELR Lite Extender over one CAT5 allows the extension of any DVI source to a monitor or touch screen display, up to 230 feet (70 meters) using a CAT-6A cable, and up to 200 feet (60 meters) over one CAT-5e. This product is HDCP compliant. It uses Gefen's ELR Lite implementation of HDBaseT® Lite™ technology, allowing the DVI source to be extended over a single CAT-5e or CAT-6 cable, reducing cable costs and facilitating simple and effective installation.

Connect the included DVI cable to the computer or other DVI source and the Sender unit. Connect the Receiver unit to a Hi-Def display with another DVI cable. Use up to 230 feet (70m) of CAT-6A cable or up to 200 feet (60 meters) of CAT-5e to connect the Sender to the Receiver unit. Connect the included locking power supplies to the Sender unit and the Receiver units and plug the power supplies to available electrical outlets. Power On all connected source and display equipment.

Gefen, LLC DVI ELR Lite Features:

  • Extends DVI up to 230 feet (70 meters) over oneCAT-6A cable
  • Extends DVI up to 200 feet (60 meters) over oneCAT-5e cable
  • Supports resolutions up to 1920 x 1200 (WUXGA)
  • EDID management for rapid integration of source anddisplay
  • HDCP compliant
  • Locking power supplies
  • Surface-mountable

Gefen, LLC DVI ELR Lite Specifications:

  • Maximum Pixel Clock: 165 MHz
  • Video Input Connector (Sender): (1) DVI-I, 29-pin,female (digital only)
  • Video Output Connector (Receiver): (1) DVI-I, 29-pin,female (digital only)
  • Link Connector (Sender / Receiver): (1) RJ-45
  • Internal/External EDID Selector (Sender): (1) DIPswitch
  • HPD Pass-Through Selector (Sender): (1) DIP switch
  • HDCP Pass-Through Selector (Sender): (1) DIP switch
  • Power Indicator (Sender/Receiver): (1) LED, blue
  • Link Indicator (Sender/Receiver): (1) LED, green
  • Power Supply (Sender / Receiver): 5V DC, Locking
  • Power Consumption (Sender/Receiver): 10 W per unit(max.)
  • Operating Temperature: 0 to +45°C
  • Operating Humidity:0 to 90% RH, non-condensing
  • Dimensions (W x H x D): 4.3" x 1" x 3.4" (110mm x26mm x 86mm)
  • Shipping Weight: 3 lbs (1.4 kg)
