EAW KF394 Passive 3-Way Full Range Loudspeaker

OUR PART #: KF394 MFR #: 2034959-00-90

Copied to clipboard

The newest additions to the legendary KF Series of premium 3-way loudspeakers pack even more capability and application flexibility into an ultra-compact package. ...Read more

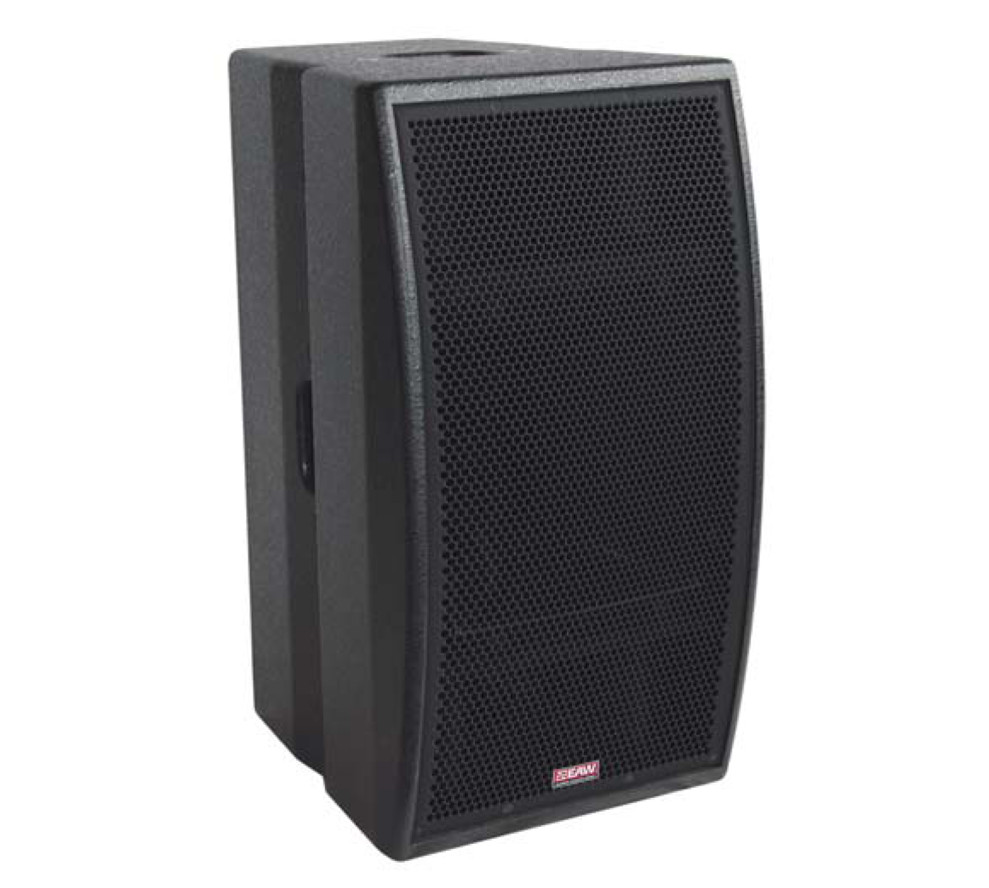

EAW KF394 Passive 3-Way Full Range Loudspeaker Image 1
EAW KF394 Passive 3-Way Full Range Loudspeaker
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The newest additions to the legendary KF Series of premium 3-way loudspeakers pack even more capability and application flexibility into an ultra-compact package. The integration of premium neodymium components, a co-axial mid/high frequency component and world-renowned crossover design into an adaptable enclosure offers unprecedented utility. They natively offer both portable features and M10 installation points.

Available universal accessories include trim plates that hide handles, u-brackets, quick release flytrack segments that integrate into any enclosure and adjustable legs for use as a stage monitor. Add revolutionary EAW Focusing in the UX8800 Processor for the pinnacle of performance in any venue.

EAW KF394 Features:

  • Premium Performance
  • Application Flexibility
  • Neodymium Components
  • NT upgrade capability
  • Switch configurable powering modes (passive/bi-amp)

EAW KF394 Specifications:

  • CONFIGURATION
    • Subsystem:
      • Transducer: LF – 2x 10 in. cone; MF -1x 1.4 in. cone, 3.5 in. coil compression mid; HF - 3x.75 in. exit, 1.75 in voice coil compression driver
      • Loading: LF – Vented; MF – Horn-loaded; HF – Horn-loaded
    • Operating Mode:
    • Amplifier Channels: Passive; Bi-amp LF,MF/HF
    • External Signal Processing: High pass filter; DSP w/EAW Focusing
  • PERFORMANCE
    • Operating Range (-10 dB, Hz): 64 – 20k
    • Axial Sensitivity (1W @ 1m, dB SPL):
      • LF: 99
      • Passive MF/HF: 111
      • Full Range: 98
    • Power Handling / Impedance (Watts @ Ohms):
      • LF: 750 @ 8
      • Passive MF/HF: 150 @ 8
      • Full Range: 1100 @ 8
    • Calculated Maximum Output Peak (dB SPL):
      • LF: 134
      • Passive MF/HF: 137
      • Full Range: 134
    • Calculated Maximum Output Long Term (dB SPL):
      • LF: 128
      • Passive MF/HF: 131
      • Full Range: 128
    • Nominal Coverage (degrees):
      • Horizontal: 90
      • Vertical: 45
    • Powering: Switchable: bi-amplified/passive
    • Dimensions (inches/millimeters):
      • Height: 25.50/648
      • Width (front): 13.94/354
      • Width (rear): 8.86/225
      • Depth: 17.13/435
    • Trap. Angle (degrees per side): 10.15
    • Weights (pounds/kilograms):
    • Net: 65/29.5
    • Shipping: 75/34.0
