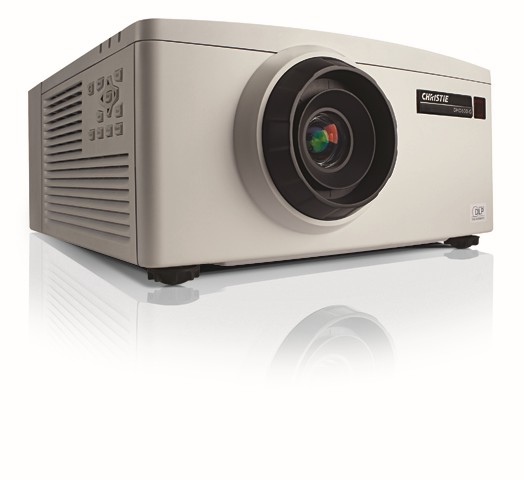

Christie Digital DHD600-G
5,950 ANSI Lumens 1-Chip Single Lamp DLP Projector

OUR PART #:  DHD600-G

The Christie® DHD600-G offers unsurpassed value and is a perfect fit for a variety of applications.
Learn More
Similar Products

The Christie® DHD600-G offers unsurpassed value and is a perfect fit for a variety of applications. Its single lamp design lowers total cost of ownership by reducing maintenance and energy cost.

Christie® DHD600-G Features:

  • Single-lamp design
  • 1-chip DLP technology for excellent image quality and reliability
  • Built-in color matching for a more uniform image in a multiple projector configuration
  • Blending and warping capabilities for curved surfaces
  • 24/7 use capability
  • 2,000 hours long lamp life contributes to a low cost of ownership
  • Filter-free and dust-sealed for low maintenance and costs
  • Eco-friendly features
  • Dynamic Contrast, which enhances images by increasing the contrast ratio to 4800:1
  • Optional wireless module available for device flexibility and easy presentation set up (sold separately)
  • DICOM simulation

Christie® DHD600-G Specifications:

  • Brightness:  6,200 center (5,950 ANSI) lumens
  • Contrast:
    • 4800:1 (dynamic contrast enabled)
    • 1200:1 (full on/ full off)
    • 250:1 (ANSI)
  • Display technology and resolution:
    • 1-chip 0.65" DMD
    • 1920 x 1080 HD
  • Lamp:
    • 465W NSH
    • 2000 hrs. minimum @ 465W
    • 2500 hrs. typical @ 360W
  • Inputs:
    • Standard
      • 1x HDMI
      • 1x DVI-D (digital only)
      • 1x DisplayPort
      • 1x HD15
      • 1x RCA (composite video)
      • 1x S-Video (mini DIN)
      • Component video (RCA)
      • 1x USB (type B mini) - display over USB
      • 1x USB (type A) - image viewer or Wi-fi dongle (optional)
      • 1x RJ45
    • Signals
      • HDTV formats VGA through to WUXGA (1920 x 1200)
      • Horizontal and vertical scaling while maintaining aspect ratio, all inputs
  • Pixel clock:  162 MHz
  • Scan rates:
    • Horizontal: 15 kHz to 100 kHz
    • Vertical: 24 kHz to 85 kHz
  • ?Outputs:  ?1x HD15
  • Control and networking:
    • RS232 in
    • Ethernet (10/100) RJ45 with ChristieNET™ connectivity
    • Build-in backlit keypad
    • Wired remote control (3.5mm stereo) - wire not included
  • Optical system:
    • Tool-free lens insertion system
    • Boresight adjustable
    • Motorized zoom, focus and lens offset
  • Lenses:
    • 1.22-1.52:1 (HD) zoom lens (included)
    • 1.52-2.89:1 (HD) zoom lens (optional)
    • 0.95-1.22:1 (HD) zoom lens (optional)
  • Offsets:
    • Vertical: +/-120% (+/- 648 pixels)
    • Horizontal: +/-20% (+/-192 pixels)
  • Standard accessories:
    • IR remote w/ wired remote jack (wire not included)
    • AC line cord for projector head
    • User manual
  • Optional accessories (all sold separately-contact your Full Compass Representative for more information):
    • 1DWUSB-BGN (Wireless dongle)
    • Warp module
    • Cable cover
    • Ceiling mount
    • Ceiling mount extension
  • Power requirements:
    • Operating voltage: 100 VAC to 240 VAC @ 50/60 Hz
    • Operating current: 6.5A max
    • Power consumption: 580W max, 450W eco mode
    • Dissipation: 1979 BTU/hr max, 1535 BTU/hr eco mode
  • Dimensions and weight:
    • Size: (L x W x H): 15.28 x 17.13 x 8.15” (388 x 435 x 207 mm) without feet
    • Shipping size: 23.27 x 23.03 x 17.44" (591 x 501 x 443mm)
    • Weight: 33.7 lb (15.3 kg)
    • Shipping Weight: 45.2 lb (20.5 kg)
  • Operating environment:
    • Temperature: 40 – 95°F (5 – 35°C)
    • Humidity: 10 – 85% non-condensing
  • Regulatory approvals:
    • UL/CSA/IEC 60950-1
    • FCC Class A, CE, CCC, KC, EAC, PSE, CU, SABS, BIS and RCM
    • This product conforms to all relevant European directives, standards, safety, health and environmental concerns
    • This product is designed to comply to the rules and regulations required for the product to be sold in various regional markets, including USA/Canada, EU, Norway, Australia/New Zealand, Kuwait, China, Korea, Japan, Mexico, Ukraine, India, Russia, South Africa and Saudi Arabia
    • RoHS, REACH, WEEE
  • Limited warranty:
    • 3 years parts and labor (including light engine)
    • Contact an authorized Christie representative for full details of our limited warranty
465W NSH Lamp for 600-G Series Projectors
Christie Digital 003-004808-01 465W NSH Lamp for 600-G Series Projectors
The 003-004808-01 from Christie Digital is a replacement lamp for their 600-G series of projectors. This lamp typically lasts for 2000 hours at 465W and 2500 hours at 360W.
595.00

In Stock
Free Shipping Available
0.95-1.22:1 Zoom Lens for Christie G-Series Projectors
Christie Digital 140-101103-01 0.95-1.22:1 Zoom Lens for Christie G-Series Projectors
The Christie 140-101103-01 Zoom Lens is a projector lens for the Christie DHD550-G and DWU550-G DLP projectors. It features a 0.95-1.22:1 throw ratio.
2,055.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
1.52-2.89:1 Zoom Lens for Christie G-Series Projectors
Christie Digital 140-102104-01 1.52-2.89:1 Zoom Lens for Christie G-Series Projectors
The Christie 140-102104-01 Zoom Lens is a projector lens for the Christie DHD550-G and DWU550-G DLP projectors. It features a 1.52-2.89:1 throw ratio.
1,850.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
1.22-1.52:1 Zoom Lens for Christie G-Series Projectors
Christie Digital 140-100102-01 1.22-1.52:1 Zoom Lens for Christie G-Series Projectors
The Christie 140-100102-01 Zoom Lens is a projector lens for the Christie DHD550-G and DWU550-G DLP projectors. It features a 1.22-1.52:1 throw ratio.
975.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
Wireless Dongle for Select Christie Projectors
Christie Digital 1DWUSB-BGN Wireless Dongle for Select Christie Projectors
The Christie 1DWUSB-BGN wireless dongle for video and control works with the Christie E-Series and G-Series projector lines.  The Christie Presenter application allows up to four remote desktops from host PC’s to be displayed ...
67.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
