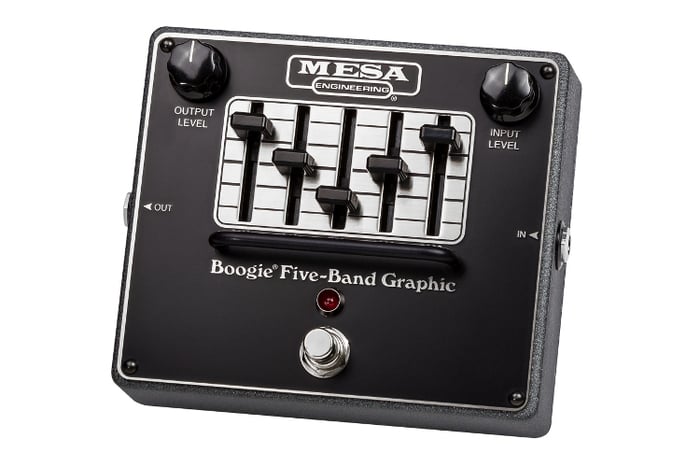

Mesa Boogie Ltd Graphic EQ
5-Band EQ Pedal

OUR PART #:  BOOGIE-GRAPHIC-EQ

Boogie® Five-Band Graphic - Legendary “Boogie” 5-Band Graphic EQ in a Pedal.
Learn More
Our Price: $249.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Mesa Boogie Ltd Graphic EQ
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Boogie® Five-Band Graphic - Legendary “Boogie” 5-Band Graphic EQ in a Pedal! For well over four decades now the Boogie Five Band Graphic EQ has been at the heart of chart topping guitar sounds and it’s hard to ignore the impact its now-classic “V-Curve” has had on modern guitar sounds and popular music. Now Mesa offers this powerful tool in a stand alone pedal format that packs the same shaping power and quality as those found in our high-end amplifiers.

In the early ’70s Boogie® sounds were most associated with singing, vocal-inspired lead work as artists learned the newfound possibilities of its high gain tube preamp and it’s game-changing sustain. The Graphic EQ aboard most fully loaded “Hun-Revs” of the day found their sliders set for a subtle widening effect or enhanced Bass response to mimic bigger cabinets with the little 1x12 combo. As the era of Classic Rock faded and the dawn of Metal appeared on the horizon in the late ‘70s and early ‘80s, the potential power of this on-board tool began to be fully realized. Graphic-loaded MARK II™ Boogies became the norm and most of these on-board EQs were used to scoop the mids to extreme levels while boosting lows and highs and this “V-Curve” became a new standard: the “other sound” (non-Brit) in Hard Rock and Metal.

Since then MARK III™, MARK IV™ and MARK V™ Boogies all have their place in Rock history through iconic artists and the Graphic EQ has been an integral part of their sound. The Five Band Graphic EQ aboard the current MARK V Boogie is again at the forefront of emerging styles as a new generation crafts their own unique brand of heavy sounds in Djent and Nu-Metal genres. Mesa is proud to introduce the stand-alone Pedal version of this piece of Rock history, built with the same quality parts and handmade in our Petaluma facility. Now you can incorporate this powerful shaping tool into any setup (including non-guitar applications) whether in the Front End or in an Effects Loop and create your own unique signature Tones. The same long-throw Sliders are used to achieve maximum resolution and finite adjustment. Both INPUT and OUTPUT LEVEL Controls are fitted to ensure optimum matching of both your Source and Destination regardless of your application. Whether used in front of your amplifier’s Input or in your Effects Loop, it gives you a footswitchable Tone option you can employ on demand. And when it’s not engaged, your sound is pure and unaltered thanks to the Hard Bypass Feature.

The Boogie Five Band Graphic runs on one 9 Volt battery and can also be powered by a standard DC Wall Transformer. Now this affordable package brings the power of the Boogie Five Band Graphic and its classic “V-Curve” Tone – as well as near-limitless other Tone possibilities – to players of all experience levels, musical needs and amplifier brands in a small pedal board-friendly format that’s hand-built in the USA using the finest materials.

Mesa Boogie Graphic EQ Features:

  • True Bypass On/Off Switching - Bypasses all circuitrywhen off to ensure no tonal coloring
  • Input Level Control provides Unity Gain Detent and ability to boost by +6dB or cut by -40dB
  • Output Level Control provides Unity Gain Detent and ability to boost by +6dB or cut by -40dB
  • Slider Controls provide Mesa’s legendary tone-shaping power with +/- 12dB of boost or cut at 80Hz, 240Hz, 750Hz, 2.2kHz and6.6kHz
  • On/Off Status LED
  • 9V Battery Powered or Externally Powered (optional) via External Power Jack Input
  • Input & Output Jacks (Nominal Input -20dB)

Mesa Boogie Graphic EQ Specifications:

  • Dimensions (WxDxH): 5.78" x 4.76" x 2.30" (146.8 x121 x 58.4mm)
  • Weight:
    • 1.6 lbs. (725.7g) with battery
    • 1.5 lbs. (680.4g) without battery
  • True Bypass Switching
  • Battery Type: 9VDC (one)
  • Power Consumption (Current Draw): 9VDC/25mA
  • External Power Supply (Not Included): To avoid immediate damage and voiding the warranty, the External Power Supply must be9VDC  with a NEGATIVE CENTER plug polarity and a jack plug size of 2.1mmx 5.5mm.
  • Input Impedance: 1M Ohm (500 kOhm minimum)
  • Output Impedance: 10 kOhm
