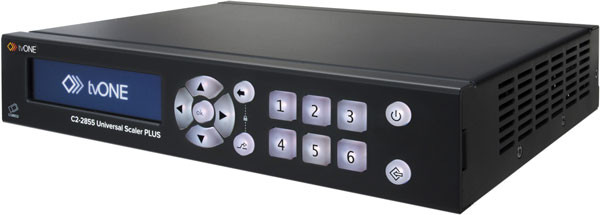

TV One C2-2855
Universal Video Scaler PLUS

OUR PART #  C2-2855

Our Price: $3,495.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

The tvONE C2-2855 Universal Scaler PLUS is first in a new generation of high performance scalers that provides best-in-class video scaling and format conversion along with revolutionary, intuitive user interface tools. The crystal clear OLED display intuitively guides users through setup and control using color-modulated, backlit buttons. Alternatively, a graphic user interface for computer or tablet can be used to set up and control the unit remotely via IP. RS232 is also provided as a direct control interface for 3rd party control systems. The video performance of the C2-2855 is based on tvONE's exclusive CORIO®2 technology, which provides high quality bi-directional conversion and switching between a wide variety of analog and digital video formats. Living up to its designation as a "Universal Scaler" the C2-2855 supports SD/HD/3G-SDI, HDMI, DVI, Composite Video, YC, YUV, YPbPr or RGB, on both inputs and outputs, and the signal parameters of the incoming video may be adjusted. The high resolution RGB/YPbPr output is selectable at virtually any PC or HDTV resolution and NTSC, PAL, PAL-M, and PAL-N standards are all supported. Crisp, clear images are ensured by a high sampling rate and advanced Digital Flicker Elimination circuitry on CV & YC outputs, while full bandwidth chroma sampling ensures faithfully reproduced, high resolution colors. Motion compensation, diagonal interpolation and a 3:2 Pull-down feature provide for the best possible NTSC image quality, while temporal interpolation refines frame-rate conversion by merging successive frames.

Designed for commercial 24/7/365 use, the C2-2855 automatically stores all settings in non-volatile memory for automatic restoration of the most recent settings even when power is switched off. Twelve user-defined presets are readily available for instant, on-the-fly adjustment to diverse customized applications.

tvONE's AutoSet feature automatically sizes and positions computer images to fit exactly on the video display, and the 10X Variable Zoom can enlarge and position any part of an input to fill the entire video output display. Variable Shrink with as much as 90% size reduction allows almost any image to fit on the tiniest screen.

Advanced Features - Keying allows one input to be keyed over a second input. The keyed image may be faded in and out. Precise keying at the pixel level is possible due to 4:4:4 sampling format for RGB sources. Transitions permit Seamless Cut, Fade or Wipe transitions when switching between input sources. Picture-In-Picture (PIP) functionality allows an input to be inset in a window over a second input or vice versa, and the PIP window may be placed anywhere on the screen. Genlock ensures precise synchronization of the incoming signals.

Audio - Integral Stereo Audio switching is provided by an integral 4x1 audio routing switcher. The four impedance-independent unbalanced inputs follow the video input selection. A rear panel terminal block and a 3.5mm jack-socket provides access.

Embedded Audio Support allows any audio input to be embedded on all outputs which support embedded audio data (HDMI/DVI-U/SDI). The unit is housed in a desktop case and can be rack-mounted with an optional 19-inch rackmount kit that holds one or two units.

tvONE C2-2855 Key Features:

  • Up/Down/Cross Conversion
  • Digital Inputs: SD/HD/3G-SDI, DVI-U*, HDMI (DVI 1.0, HDCP 1.4)
  • Analog Inputs: YUV/YPbPr, RGB/YPbPr, CV, YC
  • Digital Outputs: SD/HD/3G-SDI, DVI-U*, HDMI (DVI 1.0, HDCP 1.4)
  • Analog Outputs: DVI-U* (RGB/YPbPr/YUV), CV, YC
  • Analog: PC to 1920x1080, HDTV to 1080p/60
  • HDMI & DVI : PC to 1920x1200, HDTV to 1080p/60
  • Supports: NTSC, PAL, PAL-M, PAL-N
  • Motion Compensation & 3:2 Pulldown
  • Temporal Interpolation & Diagonal Interpolation
  • Automatic Incoming Resolution Detection
  • AutoSet - Automatic picture sizing of PC inputs
  • 4:4:4 Full bandwidth Chroma Sampling for RGB sources. 4:2:2 for SDI, YC and CV sources. HDMI YUV support for either 4:4:4 or 4:2:2 sampling
  • Video signal parameter adjustments
  • Integral 4x1 Stereo Analog Audio Routing Switcher, fully integrated with digital audio
  • Stereo Audio Embedding on capable outputs (DVI-U*, HDMI,SDI)
  • RS-232 and IP Interface for Control Software
  • Variable Image Zoom to 10X and Shrink to 10%
  • Genlock
  • Framelock
  • PIP, Chromakey and Lumakey
  • Optional Single/Dual Rackmount Kit
    * DVI-U is a tvONE proprietary interface. It is fully DVI-I compliant and offers analog (YC, CV, RGB &YPbPr) & HDMI connectivity in addition to DVI-I, via a range of low-cost dongles.

tvONE C2-2855 Specifications:

  • Video Input
    • Television Standards:  NTSC, PAL, PAL-M, PAL-N, SECAM
    • Composite Video:  1x via BNC & 1x via DVI-U*
    • YC (S-Video):  1x via 4-Pin Mini-DIN & 1x via DVI-U*
    • HDTV:  1x via HDMI (DVI 1.0, HDCP 1.4) & 1x via DVI-U*
    • SD/HD/3G-SDI:  1x via BNC
  • Computer Inputs
    • Signal Type:  1x Analog via PC/HD HD15, 1x DVI-U*
    • Format:  RGBHV, RGBS, RGsB, YPbPr, YUV
    • Sync:  TTL Level, 10K , Pos or Neg
    • Termination:  75O
    • R-G-B Level Range:  0.5-2.0 Vp-p
    • Scan Rate Detection:  Automatic
    • Analog Signals:  PC to 1920x1080, HD to 1080p/60
    • DVI & HDMI signals:  PC to 1920x1200, HD to 1080p/60
    • Max Horiz. Scan Rate:  150kHz
    • Computer Compatibility:  PC, Mac, Workstations
  • Video Outputs
    • Television Standards:  NTSC, PAL, PAL-M, PAL-N
    • Impedance:  75O
    • Composite Video:  1x via BNC
    • YC (S-Video):  1x via 4-PIN Mini-DIN
    • YUV, YPbPr:  1x via DVI-U*
    • HDTV:
    • 1x via HDMI
    • CEC pass-through for HDMI In to Out
    • SD/HD/3G-SDI:  1x via BNC
    • Maximum Latency:  1-2 Frames
  • Computer Outputs
    • Signal Type:  1x DVI-U* & 1 x HDMI
    • Format:  RGBHV, RGBS, RGsB, YPbPr
    • R-G-B Level:  0.7 Vp-p
    • Analog Signals:  PC to 1920x1080, HD to 1080p/60
    • DVI & HDMI Signals:  PC to 1920x1200, HD to 1080p/60
    • Size and Position:  Automatic via AutoSet or Manual
    • Image Size:  User-Definable Presets
    • Image Freeze:  One Video Frame
    • Settings Memory:  Non-Volatile
    • Zoom Range:  Variable to 10X Zoom
    • Shrink Range:  Variable to 10%
    • Image Mirroring:  Horizontal and/or Vertical
    • Horizontal Filtering:  Full Digital
    • Conversion Technology:  Proprietary-CORIO®2
    • Framerate Conversion:  Temporal
    • Color Resolution:  24-bit (16.8 Million Colors)
    • Sampling Rate:  162MHz
    • Digital Sampling:  24-bit, 4:4:4 or 4:2:2 format  depending on input source
    • Firmware Memory:  Flash upgradeable via RS-232 or IP
    • Video Encoder & Decoder:  8-bit Digital
    • De-Interlacing (NTSC-PAL):  Pixel-level Motion Adaptive, Diagonal Interpolation
    • Film Mode (NTSC):  3:2 Pulldown
    • Maximum Latency:  1-2 frames
    • Video Adjustments:  CV/YC: Contrast, Brightness, Saturation, Hue (NTSC), Analog RGB/YPbPr levels
  • Audio Input/Output
    • Inputs:
      • 3x Unbalanced via Terminals,
      • 1x Unbalanced via 3.5mm jack,
      • 1x HDMI, 1x DVI-U*
      • 1x SDI
    • Outputs:
      • Unbalanced via Terminals
      • 1x HDMI, 1x DVI-U*
      • 1x SDI
    • I/O Impedance:  Impedance-Independent
    • De-embedding support 1 stereo pair at 32 kHz, 44.1 kHz, 48kHz from HDMI, 48kHz SDI
    • Embedded support:  1 stereo pair at 48kHz
  • Operational Modes
    • Key:  Chromakey or Lumakey
    • Mix:  PC to/from Video and SIS
    • PIP:  Variable Window Size & Position
  • SDI Jitter
    • SMPTE259M-C (SD-SDI):  (270Mbps: 525/625 Line) Jitter < 0. 1 UI
    • SMPTE292M (HD-SDI):  (1.485/1.4835Gbps: 720p, 1035i,1080i,1080p) Jitter < 0.2 UI
    • SMPTE424M (3G-SDI):  (2.97/2.967Gbps: 1080p50/60) Jitter < 0.3 UI
  • SDI Input Cable Equalization
    Under optimal conditions:
    • SMPTE259M-C (SD-SDI):  300m
    • SMPTE292M (HD-SDI):  166m
    • SMPTE424M (3G-SDI):  100m
  • I/O Vertical Rates-SMPTE 259M-C (SD-SDI)
    • 525i (720x487):  59.94Hz
    • 625i (720x576):  50Hz
  • I/O Vertical Rates-SMPTE 292M (HD-SDI)
    • 720p (1280x720):  29.97, 30, 50, 59.94, 60Hz
    • 1080i (1920x1080):  50, 59.94, 60Hz
    • 1080p (1920x1080):  23.98, 24, 25, 29.97, 30Hz
  • I/O Vertical Rates-SMPTE424M (3G-SDI)
    • 1080p (1920x1080):  50, 59.94, 60Hz
  • Control Methods
    • Local:  via Front Panel Buttons & OSD
    • RS-232 Interface:  via D9 Female Connector
    • IP Interface:  RJ45 Connector Control Software included
  • Warranty
    • Limited Warranty:  5 Years Parts and Labor
  • Regulatory Compliance
    • Main Units:  FCC Class B, CE, RoHS
    • Power Supplies:  UL, cUL, CE, PSE, GS, RoHS
  • Mechanical
    • Size (H-W-D):  1.63 in. x 8.6 in. x 7.4 in. (42mm x 218mm x 189mm)
    • Weight (Net):  2.78 lbs. (1.26 Kg) excluding PSU
  • Environmental
    • Operating Temperature:  0° to +40°C (+32° to +104°F)
    • Ambient Operating Humidity:  10% to 85%, Non-condensing
    • Storage Temperature:  -10° to +70°C (+14° to +158°F)
    • Storage Humidity:  10% to 85%, Non-condensing
  • Power Requirement
    • External Power Supply 12V DC @ 1.5A
  • Accessories Included
    • 1x Operations Manual on USB stick
    • 1x PC Control Software (Microsoft Vista and above)
    • 1x Quick Start Guide
    • 1x Universal Power Supply ('brick' type)
    • 1x Regional Power Cable
    • Product Item Number:  C2-2855
    • Optional Accessories:  RM-220 Single/Dual Rackmount Kit

* DVI-U is a tvONE proprietary interface. It is fully DVI-I compliant and offers analog (YC, CV, RGB &YPbPr) & HDMI connectivity in addition to DVI-I, via a range of low-cost dongles.

NOTE: Specifications subject to change
