StageScreen 150" NTSC Matt White Portable Projection Screen

OUR PART #:  383485

Here's Draper's model 383485 StageScreen® Portable Projection Screen.  The StageScreen® is a totally new concept in projection screen design.
Learn More
Our Price: $2,870.00
List Price: $3,588.00
You save 20%!
Write the first review.
Draper Shade and Screen 383485
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Here's Draper's model 383485 StageScreen® Portable Projection Screen.

The StageScreen® is a totally new concept in projection screen design. It's designed for stages, lecture halls, and large venues, and is also designed specifically to be flown, but can also be used with legs. Either way, it is the strongest and most rigid screen on the market.

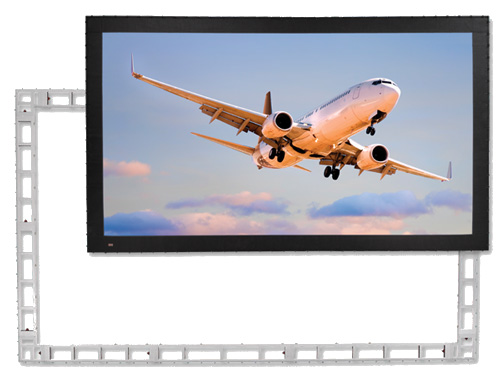

The truss system is completely modular. All available sizes of StageScreen® are built from combinations of the same 6 standard color-coded frame sections pictured in the images above. Not only does this make screen assembly faster and easier, but if a frame section should ever become damaged you can replace it in seconds without tools.

AV rental dealers can easily streamline their inventory with the StageScreen®. You can change a Multiformat to an NTSC, HDTV, or 16:10 format at minimal cost by exchanging or removing a few frame sections (separate viewing surface required). The return on investment becomes immediately evident when comparing the cost of several sizes of folding truss screens to the StageScreen®. Legs are constructed using the same truss sections as the frame. The StageScreen® ships with frame segments, surface, carrying case and tarp (legs sold separately-contact your Sales Representative for more information). An optional Dress Kit is available (sold separately-contact your Sales Representative for more information).

Surface Material Information

Matt White XT1000V

The perfect matt white diffusing surface. Recommended for use with all types of projectors provided ambient light can be reasonably controlled. Reflects a uniformly bright image over complete 180° viewing cone with precise resolution and accurate color balance. This surface was previously named “M1300.”This surface is GREENGUARD Children and SchoolsSM certified. Available with black backing and without.

The Matt White XT1000V is part of the OptiFlex Family of surface materials. OptiFlex surfaces are suitable for tensioning and are available on permanently tensioned screens, tab tensioned roller operated screens, or both. Choose OptiFlex for the flattest front projection viewing surfaces.

Draper 383485 StageScreen® Features:

  • The StageScreen® utilizes an 8” truss that is significantly stronger than traditional truss folding screens.
  • It is engineered to hold tolerance after repeated usage.
  • Color coded frame sections ensure fast and easy assembly.
  • Draper performedin-house testing of the strength of the StageScreen® truss compared to a folding truss screen. The results were dramatic: StageScreen® proved to be over 60% stronger, holding strong long after the folding truss failed.
  • The image area of each screen is exact and true to format.
  • StageScreen® can be assembled in about half the time of a comparable truss folding screen.
  • No hinges, no snaps, and no Handy Cranks are required.
  • Frame sections are connected with permanently attached threaded links and guide pins. No lost handy cranks.
  • Easy to follow color-coded assembly instructions are included with each StageScreen®
  • StageScreen®features a revolutionary new viewing surface attachment method. Using the attached DuraLoop™ bungee cord loops with handy nylon pull-tabs, simply hook the surface to the posts on the frame. DuraLoops are longer lasting than traditional snaps, and provide even self-centering tension for the viewing surface. You’ll never want to use snaps again.
  • The viewing surface is stretched perfectly flat, resulting in the highest picture quality.

Draper 383485 StageScreen® Specifications:

  • General Specifications:
    • Part Number:  383485
    • Surface Material:  Matt White XT1000V
    • Frame Color:   Black
    • Image Format:  NTSC 4:3
    • Diagonal Size:  150 in.
    • Image/Viewable Area:  90 in. x 120 in. (229cm x 305cm)
    • Overall Size:  106-1/2 in. x 136-1/2" (271cm x 347cm)
    • Product Weight:  122 lbs. (55 kg)
    • Shipping Weight:  145 lbs. (66 kg)
  • Surface characteristics and reflective performance
    • Maximum Height Without Seams: 144"
    • Weight (g/sm):  396
    • Weight (oz./yd2):  11.68
    • Thickness (mm):  0.3
    • Cleaning:  Mild soap and water
    • Composition:  Flexible PVC
    • Gain On Axis/0° Gain:  1
    • Half Gain Angle:  Material does not reach half gain.
