Blackmagic Design VHUB/WSC
Smart Control for Videohub Routers

OUR PART #:  VHUB/WSC

The Blackmagic Design VHUB/WSC allows you to control your router from anywhere in your building.
Learn More
Our Price: $470.25
List Price: $495.00
You save 5%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design VHUB/WSC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Blackmagic Design VHUB/WSC allows you to control your router from anywhere in your building.  When you want the fastest routing you can get, then Videohub Smart Control lets you route with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button! Powers via DC or the Ethernet connection.

Wide Array of Control Options

Videohub routers have more control options because you can select from hardware panels or innovative software control panels that let you route cross points on your desktop. If you're using Mac or PC based editing and design systems, routing from your desktop costs nothing and saves space in your studio.  For cut-bus style routing, then the VHUB/WSC Videohub Smart Control features 40 customizable buttons that can be set to any router label. Videohub Smart Control can be setup for 1, 2 or more destinations, as well as macros and more.

Route From Your Desktop

With so much post production equipment based on desktop computers these days, the best place to control your router is right from your desktop. All Videohub models include free software so you can simply install on your Windows or Mac, and get an incredibly attractive icon based router control panel. You can install on as many computers as you like! The Pushbutton view allows you to see images in the buttons of common video equipment. If you want the most incredible XY control panel, then Pushbutton view looks fantastic when installed on a dedicated all in one computer with touch screen such as a HP TouchSmart, with all routing performed by pressing buttons directly on screen.

Hardware Control Panels

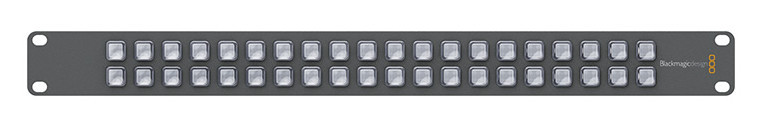

When you're working in larger facilities with rack mounted equipment then you need a serious hardware based control panel! Videohub Smart Control features 40 crystal look WRGB illuminated buttons that can be set to any router output. To set the input to any SDI equipment now just requires a single button press.

Easy to Use

You can install the Videohub Smart Control under a monitor, then the output of the router you have connected to that monitor can be set to a different source each time a different button is pressed. Thats a "cut-bus" style of router control and is extremely fast to use! Just punch along the buttons to look at anything on your router. Install under broadcast decks or edit suites so you can set the video input the same way. It's just as simple on your Mac or PC where you can also setup simple graphic buttons for the simple and elegant router panels on your computer.

Single or Multiple Destinations

Even though Videohub Smart Control is a cut bus type of hardware control panel, it's smart enough to allow multiple destinations. If you want a true cut-bus, such as when dedicating the control panel to a video monitor, just select to a single destination and then all buttons are sources that change the route to that destination when pressed.

Elegant Design

Router control panels don't need to be ugly, and Videohub hardware control panels have been designed to fit into the most creative post production facilities and broadcasters! You get attractive crystal look buttons that are illuminated by both RGB and white LEDs so that a wider range of rich and clean colors can be displayed. Videohub hardware control panels allow the front panel can be unscrewed and slid off so labels can be inserted under the buttons. You get Adobe Illustrator™ files with crop marks that you can use as templates to generate your own custom labels! All buttons can be variably backlit so you can always read button labels even in dark rooms! Videohub hardware control panels use only a single rack unit and are less than an inch thick!

Easy to Install

No other router panel is so easy to install! You can customize buttons, sources and destinations using the easy to use Windows and Mac software included with each Videohub control panel. To setup the panel, just connect to the built in USB connection and then run the software! You can select where the Videohub is on your network, as well as how many destinations you want on the panel. You can even select the backlighting brightness, as well as if you want a "take" button!

Connects via Ethernet

Videohub Smart Control uses standard ethernet networking so you can simply plug into the existing computer network. If you want to use your Videohub in mission critical environments, you can even connect Videohub control panels to routers via a dedicated ethernet switch. Videohub Smart Control features power over ethernet so if used with an ethernet switch that includes power over ethernet support, then no power supply is required. For non powered ethernet switches, we also included a power supply with international power socket adapters. Videohub hardware control panels also include loop through ethernet connections, perfect for looping to other control panels or computers. You can chain dozens of control panels so you save hundered's on ethernet cabling.

Blackmagic Design VHUB/WSC Specifications:

  • Connections:
    • SDI Video Input:  16 x 10 bit SD-SDI, HD-SDI, 3Gb/s HD and 2K switchable
    • SDI Video Output:  16 x 10 bit SD-SDI, HD-SDI, 3Gb/s HD and 2K switchable.
    • Reference Input:  Blackburst and TriSync for SD, HD and 2K.
    • Multi Rate Support:  Auto detection of SD, HD or 3 Gb/s SDI. Simultaneous routing of 2K, HD, SD video and DVB-ASI.
    • Updates:  USB 2.0 high speed (480Mb/s) interface.
    • Router Control:  32 buttons for local control of Videohub or use either RJ45 Ethernet or USB 2.0 high speed interface shared over IP network.
    • Router Configuration:  Use either RJ45 Ethernet or USB 2.0 high speed interface shared over IP network.
    • RS-422 Router Control:  1 x input for controlling router crosspoint switching.
    • Reclocking:  On all SDI outputs, auto switching between standard definition, high definition or 3 Gb/s SDI video.
  • Standards:
    • SD Format Support:  625/25 PAL and 525/29.97 NTSC.
    • HD Format Support:  1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60, 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60.
    • 2K Format Support:  2048 x 1556/23.98/24/25.
    • SDI Compliance:  SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.
    • SDI Video Rates:  SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI.
    • SDI Video Sampling:  4:2:2 and 4:4:4.
    • SDI Audio Sampling:  Television standard sample rate of 48 kHz and 24 bit.
    • SDI Color Precision:  4:2:2 and 4:4:4 10 bit.
    • SDI Color Space:  YUV or RGB.
    • SDI Auto Switching:  Automatically selects between SD-SDI, HD-SDI, 3 Gb/s SDI and DVB-ASI on each input so that each input can be running a different television standard.
    • SDI Metadata Support:  Video payload identification ancillary data as per SMPTE 352M.
  • Extras:
    • Software Control:  Router control included free for Windows™ and Mac OS X™.
    • Internal Software Upgrade:  Via included updater application.
    • Physical Installation:  1 rack unit size. Less than an inch deep.
    • Power Fail Protection:  Router connections preserved and restored instantly at power on independently of host computer.
    • Power Supply:  1 x power supply included. IEC power cable required.
    • Product Warranty:  3 Year Limited Manufacturer's Warranty.
