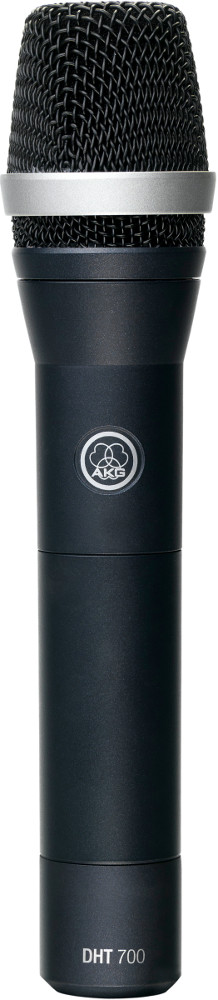

Wireless Handheld Transmitter with D5 Capsule

OUR PART #:  DHT700D5-V2

The DHT700 V2 reference digital wireless handheld transmitter comes with a robust and slim metal body and works with the receivers of the DMS700 V2 digital wireless system.
Learn More
Our Price: $619.00
List Price: $1,199.00
You save 48%!
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The DHT700 V2 reference digital wireless handheld transmitter comes with a robust and slim metal body and works with the receivers of the DMS700 V2 digital wireless system. The DHT700 V2 is available in three different versions. With AKG's legendary D5, D7 dynamic or C5 condenser microphone heads, it delivers a powerful sound, even on the noisiest stage.

Note: Appearance may differ slightly between models depending on which Capsule is included.

The DHT700 V2 provides an ultra-wide bandwidth of 155MHz and a selectable radio output power of 10, 20, 30 or 50mW. The built-in helix antenna provides reliable wireless audio transmission. The state-of-the-art 512-bit encryption technology keeps the audio signal secure against tapping.


  • Robust metal housing- rugged and reliableconstruction
  • Helix antenna -optimized signal strength withswitchable RF power
  • D5, D7 or C5 microphones available - in differentstyles for demanding vocals
  • Two-hour quick-charging - of standard rechargeableNiMH batteries by integrated charging contacts
  • Quick and easy setup - via infrared data communication

AKG DHT700 V2 Specifications:

  • Audio
    • Audio Frequency bandwidth: 25 to 20000 Hz
    • Signal to Noise: 120 dB-A
    • THD at 1 kHz: 0.05 Prozent
  • Enhanced: Operating temperature range: -10 to 55Celsius
  • Radio
    • Switching bandwidth: 155 MHz
    • Recommended simultaneous channels: 40
    • Number of selectable frequencies: 6160 (selectable in 25kHz steps)
    • Frequency Selection: Selectable frequency in 25kHz steps
    • Wireless channels within device  -
    • Radio Range (Line of Sight): 100m (depending on antenna system)
    • Switchable RF Power: yes
    • Modulation: Digital FSK
    • Encryption: 512 bit
    • Diversity: Digital Diversity
    • Pilot Tone: no
  • Transmitter
    • Radio Output Power (min/max): 10 to 50 mW
    • Microphone head versions: D5; D7; C5; C5
    • Interchangeable Microphone Head: no
    • Transmitter Synchronization: Infrared
  • Battery: 1
    • Battery tyope: LR6 AA alkaline battery
    • Compatible Charging System: CU700
    • Number of Batteries: 2
    • Operating Time: 7 h
  • Battery: 2
    • Batterietype: HR 6 AA (NiHM) rechargeable battery
    • Number of Batteries: 2
    • Operating Time: 8 h
  • Design
    • Body: Metall
    • Finish: dark blue
    • Dimensions: 9.874"(H) x 2"(W)
    • Net Weight: 336 g

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
