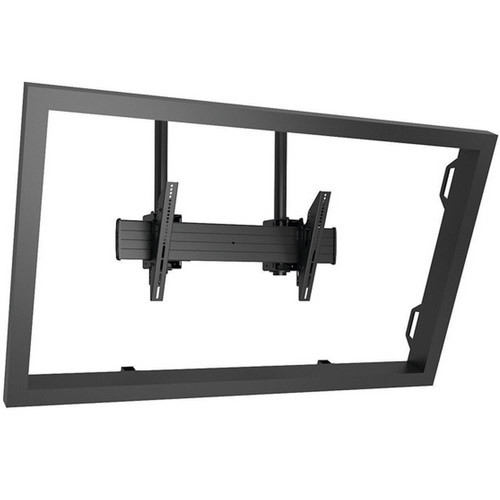

Chief Manufacturing XCM7000
Fusion X-Large Dual Pole Flat Panel Ceiling Mount

OUR PART #:  XCM7000

Chiefs FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for X-large flat panel screens.
Learn More

Add to Cart to See Price

Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Chief Manufacturing XCM7000
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Chiefs FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for X-large flat panel screens. Great for digital signage installations.

Chief's XCM7000 is a dual pole drop ceiling mount for XL displays over 5" deep.  See the Chief XCM1U single pole ceiling mount for lighter and thinner XL displays.

Chief XCM7000 Features:

  • Ceiling  Plate and extension column are required and must be ordered separately
  • Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
  • Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
  • Simple on/off connection for ease of installation and service.SIMPLE & SECURE
  • Tool free screen engagement with optional padlock security.
  • Dual pole drop along with locking tilt angles provide a more stable systemfor extremely heavy and deep displays.

Chief XCM7000 Specifications:

  • Certifications:  UL Listed
  • Color:  Black
  • Mounting Pattern Compatibility (Universal Versions):  200 x 100 mm - 800 x 400 mm
  • Overall Dimensions (H x W x D):  16.8" x 34.8" x 7.9" (423 x 885 x 200mm)
  • Post-Installation Leveling (Roll):  Yes
  • Shipping Weight:  34.00 lbs
  • Tilt:  + 5° , - 20°
  • Typical Screen Sizes:  60 - 90"
  • Weight Capacity:  300 lbs (136 kg)
