Interactive Technologies SS-315 Portable SceneStation 3 Kit

Interactive Technologies offers the SS-315, a portable wireless SceneStation Kit that is a completely self-contained lighting playback solution packaged as a handy portable kit. SceneStation sets a new standard for full-featured, easy to use, cost-effective DMX playback. Perfect for restaurants, churches, high-end residential, trade show booths and more, SceneStation can control nearly any DMX device (RGB fixtures, moving lights, dimmers, effects, etc.), while also remaining simple for the end-user.

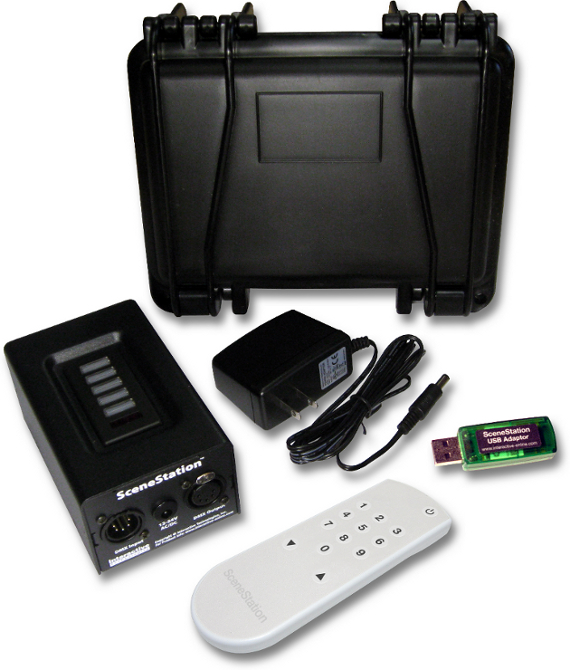

Interactive Technologies SS-315 Includes:

• Portable Wireless SceneStation Unit with XLR andPower Input Pigtails
• USB StationLink Adaptor
• Programmer's Remote
• Power Supply (part number: AC-12)
• AA Batteries (for Remote)
• Getting Started Documentation

Interactive Technologies SS-315 Features:

• Completely Self-Contained
• 64 Scene Capacity
• Static, Sequential, Toggle, Chase, Momentary &Pile-On Modes for Each Button
• Programmable RGB Backlit Buttons
• Includes 2.4GHz Wireless SceneStation Module
• DMX-512 Output (44Hz)
• DMX Input Snapshot and/or Manual Channel Editing
• IR Remote Setup and Operation
• Optional "Power-On" Scene Selection
• AC or DC Operation
• Available in White, Black, Ivory or Light Almond

Interactive Technologies SS-315 Specifications:

• Connections
  • Power: 2.1mm Female Power Input Jack
  • DMX Output: 5-Pin Female XLR
  • DMX Input: 5-Pin Male XLR
• Power Requirements
  • Input:
  • - 14-28V AC (5VA minimum)
  • - 11-28V DC (5W minimum), 420mA @ 12VDC
• Physical
  • Width: 3.1" (79 mm)
  • Length: 5.7" (144 mm)
  • Height: 2.7" (69 mm)
  • Weight: 14.2 oz (0.4 Kg)
• Environmental
  • Operating Temp: -40° to 158° F (-40° to 70° C)
  • Storage Temp: -40° to 176° F (-40° to 80°C)
  • Relative Humidity: 5% to 95% noncondensing
  • Altitude: 10,000 feet maximum
• Warranty: Two years from the date of purchase by the original owner (limited to defects in material or workmanship under normal use and service).
