OUR PART # OWCM3QX2T12.0S
Mac / PC / USB 3.0 & 2.0 / FireWire 800 (FireWire 400 Backwards Compatible) / eSATA

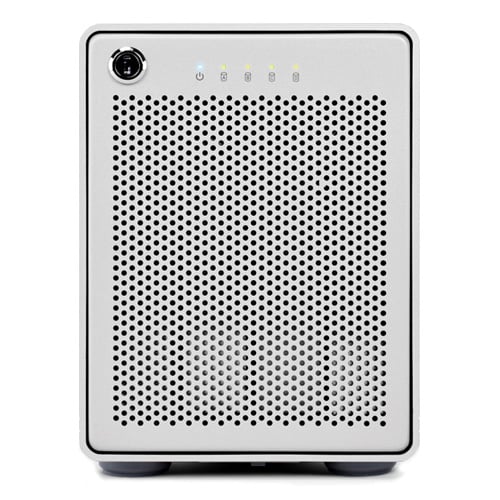

The high-capacity, high-performance Mercury Elite Pro Qx2 was engineered for performance-intensive applications such as HD-video, digital photography, professional music, graphics and backup.
Four 3.5" Serial ATA (SATA I/II) hard disk drives in a brushed aluminum enclosure with Hardware RAID setting flexibility and up to 300MB/s data transfer speed for high performance data storage and redundancy.
User-Selectable Hardware RAID Settings
Thanks to a front-panel selector switch, the Mercury Elite Pro Qx2 enables easy configuration of the Hardware RAID settings - Span, 0, 1, 5, 10 - so you can select the best combination of speed, capacity, redundancy, or any combination of the three.
Combines the capacity of two or more drives of the same size without any RAID data distribution scheme into one logical desktop volume. Will also combine the capacity of varying size drives based on the lowest capacity drive in the set.
RAID 0 (Stripe)
Data is split into blocks over two or more drives at same time for high speed and large capacity.
RAID 1 (Mirror)
Data is written at same time to two drives only for highest level of data safety and redundancy.
RAID 5 (Stripe with Parity)
Data is Striped (RAID 0) while incorporating redundancy over three or more drives for the best combination of speed, capacity, and redundancy. The Multi-Interface 4 Bay Enterprise Class Performance RAID Solutions are pre-configured as RAID 5.
RAID 10 (1+0)
Data is Striped (RAID 0) over two Mirrored sets (RAID 1) of drives for fast redundancy.
JBOD/Independent drive operation
Each drive mounts as an individual volume.
OWC Mercury Elite Pro Qx2 Specifications:
OWC 3 Year Solution Warranty
The best warranty is one you never have to use, but should the need occur – OWC is proud to provide a superior level of support and warranty coverage to our customers. Even when not used, we understand the peace of mind afforded by a longer warranty period. OWC's industry leading coverage is a testament to our confidence in the reliability of the solutions that we offer. OWC solutions are engineered to demanding quality standards in order to deliver the most reliable, highest performance available on the market in each storage category.
Note: Do not disassemble or otherwise open your OWC solution prior to the conclusion of OWC's 3 year Warranty period. Doing so will void the remainder of the OWC warranty.
Manufacturer provided specifications for Other World Computing p/n M3QX2T12.0S UPC#: 794504334852
*The use of FireWire 800 interface while the Qx2 is in RAID 5 setting is not recommended for optimum drive speed performance.
