iCON GuitarU
Synthesizer Plug-In Module

OUR PART #:  GUITARU

iCON's GuitarU is a 24-Bit 96/192KHz 1 guitar-In/2-Out USB recording interface that offers 2x2 analog I/O full duplex recording and playback.
Learn More
Sale Price: $39.00
List Price: $110.99
You save 65%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

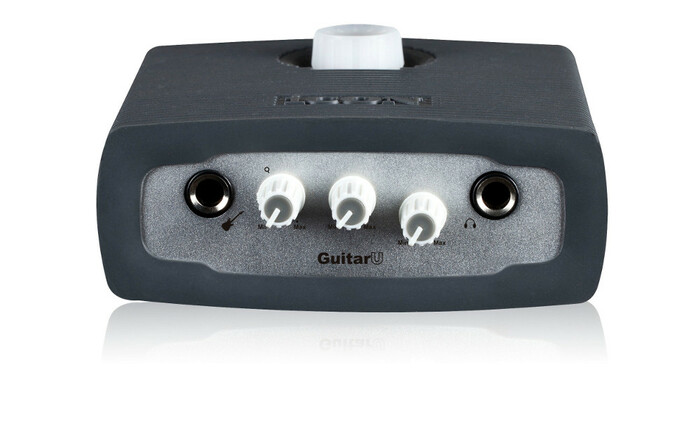

iCON GuitarU
Qty:
Similar Products

iCON's GuitarU is a 24-Bit 96/192KHz 1 guitar-In/2-Out USB recording interface that offers 2x2 analog I/O full duplex recording and playback.

iCON GuitarU Features:

  • iCON innovative unique guitar preamp with individual gain control.
  • 2 analog outputs on 1/4" TRS jacks
  • Master volume control on the top panel
  • 1 headphone output with assignable source and individual volume control
  • USB 2.0 High Speed equipped and USB bus-powered
  • Supports DirectSound, WDM and ASIO2.0
  • Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit) & Windows 7 (32-bit/64-bit)
  • Full duplex, simultaneous record/playback
  • Rugged metal construction with rubber jacket

iCON GuitarU Specifications:

  • Inst Input:
    • Frequency Response: 22Hz to 22kHz (+/-0.1dB)
    • Dynamic Range: 93dB, A-weighted
    • Signal-to-Noise Ratio: 93dB, A-weighted
    • THD+N: 0.0061% (-90dB0)
    • Crosstalk: 87dB @ 1kHz
    • Input Impedance: Inst in: 500K Ohms, typical;
    • Total Gain Range: 38dB
  • Line Outputs 1/2 (Stereo, Unbalanced):
    • Frequency Response: 47Hz 22kHz (+/-0.1dB)
    • Dynamic Range: 100dB, A-weighted
    • Signal-to-Noise Ratio: -100dB, A-weighted
    • THD+N: <0.003% (-90 dB)
    • Crosstalk: -100dB @ 1kHz
    • Nominal Output Level: Unbalanced: +4dBV, typical;
    • Maximum Output Level: +11dBV, typical;
    • Output Impedance: 150 Ohm
    • Load Impedance: 600 Ohm minimum
  • Headphone Outputs: 1 & 2 (at Maximum Volume; Into100 Ohm load):
    • Frequency Response: 47Hz to 22kHz (+/-1dB)
    • Power into Ohms: 90 mW into 100 Ohms
    • THD+N: <0.06% (-66dB)
    • Signal-to-Noise Ratio: -90dB, A-weighted
    • Max Output Level into 100 Ohms: +2.0dBV, typical
    • Output Impedance: 75 Ohm
    • Load Impedance: 32 to 600 Ohms

To be the first to review this item, click here.
