MuxLab MUX-500112
LongReach CCTV IP PoE Extender Kit

OUR PART #:  MUX-500112

Our Price: $392.87
List Price: $400.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

MuxLab MUX-500112
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

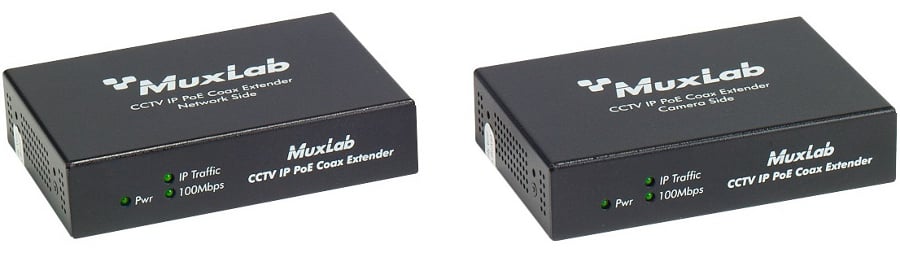

The LongReach CCTV IP PoE Extender Kit from MuxLab allows one CCTV PoE IP camera (up to 15.4 Watts) to be connected up to 1000 ft (300 m) via a single 75 ohm coax cable in a point-to-point configuration to a PoE LAN switch. Applications for this kit include: Campus, highways, airports, hotels, casinos, commercial complexes, remote parking lots, entry gates, self-storage, hospitals, car dealerships, prisons, network connection.

Note: If the LAN switch is not PoE, then the 48VDC Power Supply (500113) is required in order to power the PoE camera and the 500112. The maximum distance depends on the grade of coax cable and the power consumption of the camera.

MuxLab MUX-500112 Features:

  • Supports one IP PoE camera via one coax cable
  • Supports CCTV IP PoE cameras up to 15.4W
  • Up to 1000 ft (300m) via coax @ 100 Mbps/15.4W
  • Up to 330 ft (100m) on the LAN connection
  • LED indicators for power, IP traffic, 100Mbps
  • Optional 48VDC power supply (500113)
  • Includes wall-mount brackets

MuxLab MUX-500112 Specifications:

  • Please refer to the attached data sheet for specificationsinformation.
