Atlas Sound FM250-70
70V Amplifier Card Module for F6-MF

OUR PART #:  FM250-70

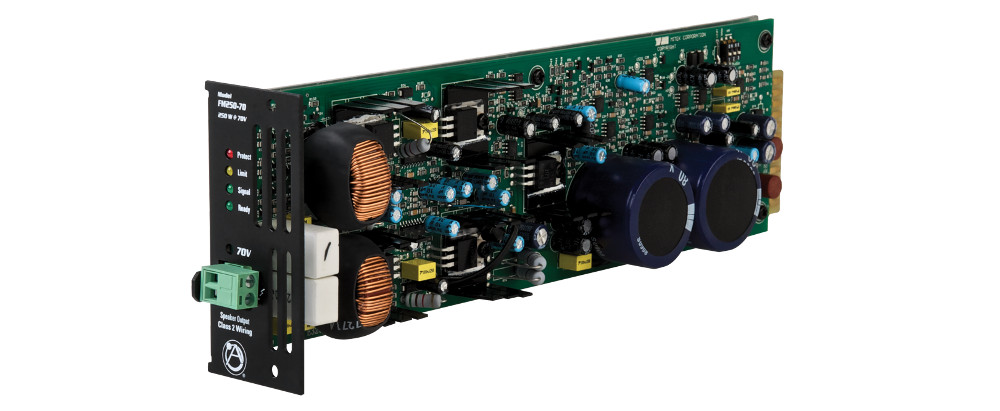

The Atlas Sound FM250-70 amplifier card module is designed to be used with the F6-MF in any configuration from one module to six modules.
Learn More
Our Price: $194.99
List Price: $243.99
You save 20%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound FM250-70
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atlas Sound FM250-70 amplifier card module is designed to be used with the F6-MF in any configuration from one module to six modules. Each module has 250W of output power and each features a defeatable limiter and high pass filter.

The F6 FM250 series power modules are designed to be 90% efficient allowing the amplifier to run cooler and consume less energy than conventional commercial amplifiers.

Atlas Sound FM250-70 Features:

  • Fixed 30Hz High Pass Filter
  • Selectable Input Sensitivity per Channel, 1V or 2V
  • 30dB per Channel Voltage Gain
  • Balanced 20k Input Impedance
  • ETL Certified, Safety Listed to UL60065

Atlas Sound FM250-70 Specifications:

  • Burst Power 1kHz:
    • 1 Channel: 300W
    • 2 Channels: 280W Each
    • 6 Channels: 250W Each
  • Continuous Power: 1kHz, 30 Min
    • 1 Channel: 270W
    • 2 Channels: 250W Each
    • 6 Channels: 170W Each
  • Frequency Response: 30Hz - 20kHz
  • Signal to Noise Ratio: -90dB Below Rated Output
  • Height: 3.4" (86mm)
  • Width: 1.5" (38mm)
  • Depth: 10.4" (264mm)
  • Weight: .8 lbs. (.36kg)
