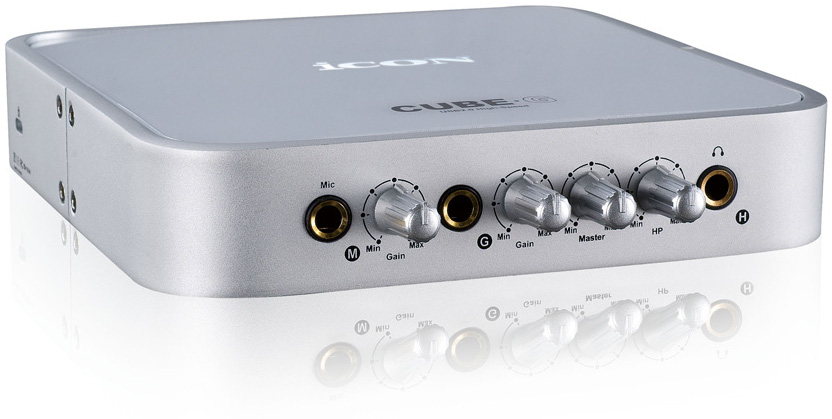

iCON Cube G
USB Audio Interface with Guitar Input

OUR PART #:  CUBE-G

iCON's Cube G is a 24bit 96/192KHz 4-In/4-Out USB recording audio interface with 2x2 analog I/O full duplex recording and playback.
Learn More
Sale Price: $79.00
List Price: $199.99
You save 60%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

iCON Cube G
Qty:
In Stock
Similar Products

iCON's Cube G is a 24bit 96/192KHz 4-In/4-Out USB recording audio interface with 2x2 analog I/O full duplex recording and playback.

iCON Cube G Features:

  • 1 Mic in with individual gain control
  • 1 Hi-Z in for guitar or bass with individual gain control
  • 2 analog outputs on 1/4" TRS jacks
  • Master volume control on the front panel
  • 1 headphone output with individual volume control
  • S/PDIF I/O on RCA coaxial connectors
  • 1x 1 16-channels MIDI I/O
  • USB2.0 High Speed equipped and USB bus-powered
  • Supports Direct sound, WDM and ASIO2.0
  • Compatible with Mac OSX (Intel CPU) and Windows XP, Vista (32bits), Windows 7 (32-bit/64-bit), Windows 8 (32-bit/64-bit)
  • Full duplex, simultaneous record/playback
  • Rugged aluminum construction

iCON Cube G Specifications:

  • Mic1 / Inst2 Inputs (at Minimum Gain):
    • Frequency Response: 22Hz to 22kHz (+/-0.1dB)
    • Dynamic Range: 100dB, A-weighted
    • Signal-to-Noise Ratio: -100dB, A-weighted
    • THD+N: <0.0061% (-90dB)
    • Crosstalk: -100dB @ 1kHz
    • Input Impedance:
      • Inst in: 500K Ohms, typical
      • Mic in: 1.8K Ohms, typical
    • Adjustable Gain: +34dB
    • Total Gain Range: +50dB
  • Line Inputs 1/2 (Unbalanced):
    • Frequency Response: 22Hz to 22kHz (+/-0.1dB)
    • Dynamic Range: 100dB, A-weighted
    • Signal-to-Noise Ratio: -100dB, A-weighted
    • THD+N: <0.0061% (-90dB)
    • Crosstalk: -100dB @ 1kHz
    • Nominal Output Level: Unbalanced: +4dBV, typical
    • Maximum Output Level: Unbalanced: +11dBV, typical
    • Input Impedance: 10K Ohms, typical
  • Line Outputs 1/2 (Unbalanced):
    • Frequency Response: 22Hz to 22kHz (+/-0.1dB)
    • Dynamic Range: 102dB, A-weighted
    • Signal-to-Noise Ratio: -102dB, A-weighted
    • THD+N: <0.003% (-90 dB)
    • Crosstalk: -100dB @ 1kHz
    • Nominal Output Level: Unbalanced: +4dBV, typical
    • Maximum Output Level: +11dBV, typical
    • Output Impedance: 150 Ohm
    • Load Impedance: 600 Ohm minimum
  • Headphone Outputs: (at Maximum Volume; Into 100 Ohm load):
    • Frequency Response: 22Hz to 22kHz (+/-1dB)
    • Power into Ohms: 90 mW into 100 Ohms
    • THD+N: <0.06% (-66dB)
    • Signal-to-Noise Ratio: -90dB, A-weighted
    • Max Output Level into 100 Ohms: +2.0dBV, typical
    • Output Impedance: 75 Ohm
    • Load Impedance: 32 to 600 Ohms
  • General:
    • Weight: 2.08 lbs (0.942 kg)
    • Dimensions: 6.5" x 7.3" x 2.3" (165 x 185 x 58 mm)
