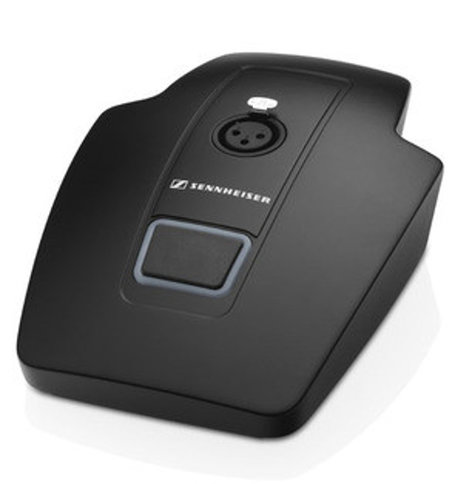

Sennheiser MAT 133-S
Table Stand with XLR Connector and Switch

OUR PART #  MAT133S

Selected Model Price: $229.95
List Price: $289.00

Save up to 20%! (Low Price Guarantee)
Select model: (shipping times are approximate)

The rugged MAT 133-S table stand is ideal for use with the MEG and MZH series goosenecks. The convenient programmable microphone button (On, On/Off PTT, PTM) features a bi-color light ring for status indication. TTL logic enables integration with media or camera control systems.

Sennheiser MAT 133-S Includes:

  • 1 table stand
  • Quick guide

Sennheiser MAT 133-S Features:

  • Designed for use with MEG and MZH series goosenecks
  • Integrated mic button with bi-color light ring and programmable modes
  • TTL logic out for media/camera control systems
  • Available in black (B) and Nextel gray (NX)
  • Made in Germany
  • Programmable Microphone Modes:
    • On
    • On/Off
    • Push to talk
    • Push to mute

Sennheiser MAT 133-S Specifications:

  • Dimensions:  4.72 x 6.69 x 1.69 in (W x D x H)
  • Connector:
    • Mic in: XLR-3F
    • Mic out: XLR-3M
    • Logic: Clip contact for logic, Pin assignment: Trigger signal at logic connector: Logic in (external LED control), Ground, Logic out (switch signal)
  • Weight:  2.67 lb
  • Phantom powering:  P 24 - P 48
  • Operating temperature:  14 ° to 122 ° F
  • Current consumption:  3.7 mA
  • Output voltage:
    • Logic out: High level output voltage > 2.4 V, Low level output voltage < 0.4 V
    • Logic in: High level input voltage > 2.0 V, Low level input voltage < 0.8 V
  • Colour:  LED light ring: Red / Green

Sennheiser MAT 133-S
Table Stand with XLR Connector and Switch

OUR PART #  MAT133S

Product Information:

The rugged MAT 133-S table stand is ideal for use with the MEG and MZH series goosenecks. The convenient programmable microphone button (On, On/Off PTT, PTM) features a bi-color light ring for status indication. TTL logic enables integration with media or camera control systems.

Sennheiser MAT 133-S Includes:

  • 1 table stand
  • Quick guide

Sennheiser MAT 133-S Features:

  • Designed for use with MEG and MZH series goosenecks
  • Integrated mic button with bi-color light ring and programmable modes
  • TTL logic out for media/camera control systems
  • Available in black (B) and Nextel gray (NX)
  • Made in Germany
  • Programmable Microphone Modes:
    • On
    • On/Off
    • Push to talk
    • Push to mute

Sennheiser MAT 133-S Specifications:

  • Dimensions:  4.72 x 6.69 x 1.69 in (W x D x H)
  • Connector:
    • Mic in: XLR-3F
    • Mic out: XLR-3M
    • Logic: Clip contact for logic, Pin assignment: Trigger signal at logic connector: Logic in (external LED control), Ground, Logic out (switch signal)
  • Weight:  2.67 lb
  • Phantom powering:  P 24 - P 48
  • Operating temperature:  14 ° to 122 ° F
  • Current consumption:  3.7 mA
  • Output voltage:
    • Logic out: High level output voltage > 2.4 V, Low level output voltage < 0.4 V
    • Logic in: High level input voltage > 2.0 V, Low level input voltage < 0.8 V
  • Colour:  LED light ring: Red / Green
