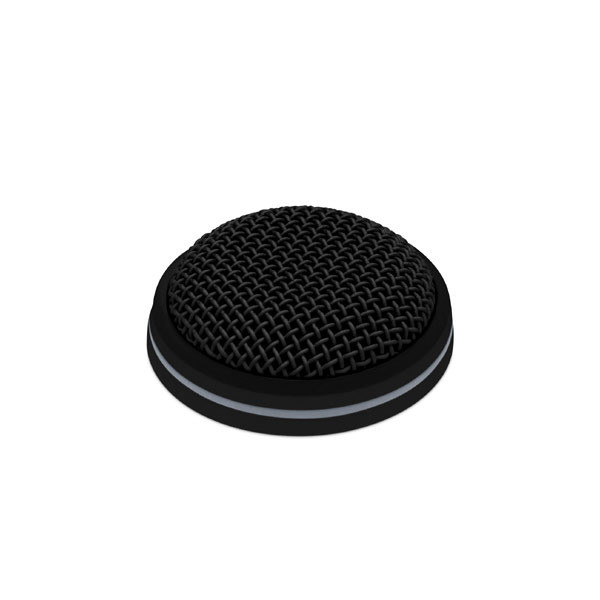

Sennheiser MEB 102-L Installed Boundary Layer Microphone, Omnidirectional with 24-48 V Phantom Power

The unobtrusive MEB102 omnidirectional boundary microphone allows for easy surface install in tables or ceiling tiles. The high quality capsule provides excellent speech intelligibility. Also available as the MEB102-L with a bi-color LED for status indication and programmable button for for On, On/Off, PTT, PTM modes.

Includes

• MEB102
• Mounting hardware
• Quick guide

Features

• Unobtrusive design
• Rugged housing
• Optimized for speech
• Exceptional immunity from RF interference
• Available in black (B), white (W) and gray (G)
• Bi-color LED for status indication and programmable microphone button

Specifications

• Connector: XLR-5, pin assignment: 1 = gnd, 2 = + (Mic+), 3 = - (Mic -), 4 = LED green (trigger signal), 5 = LED red (default)
• Current consumption: 6mA
• Dimensions: Height: 83.26in (0.47 in above surface), Diameter 1.12in
• Frequency response: 40Hz – 20kHz
• Max. sound pressure level: 125dB
• Transducer principle: pre-polarized condense microphone
• Weight: 2.05oz
• Pick-up pattern: Omnidirectional
• Nominal impedance: 200Ω
• Phantom powering: P24 - P48V
• Operating temperature: 32° to 104°F
• Equivalent noise level: 21dB (A)
• Equivalent noise level weighted as per CCIR468-3: 31dB (CCIR)
• Acoustics: Boundary Layer Microphone
• Dynamic range: 104dB (A)
• Sensitivity: 16mV/Pa
• Thread: M20
