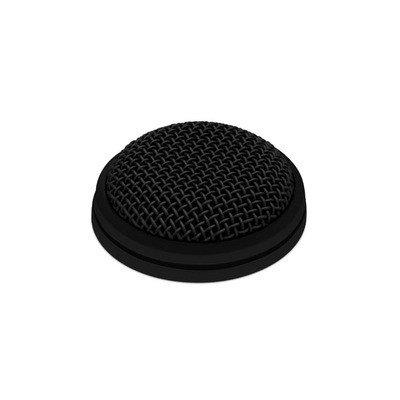

Sennheiser MEB 102
Omnidirectional Boundary Microphone

OUR PART #:  MEB102

The unobtrusive MEB 102 omnidirectional boundary microphone allows for easy surface install in tables or ceiling tiles.
Learn More
Selected Model Price: $179.95
List Price: $229.95
Save up to 22%!
Write the first review.
Sennheiser MEB 102
Select a Model: (shipping times are approximate)

Related Products

The unobtrusive MEB 102 omnidirectional boundary microphone allows for easy surface install in tables or ceiling tiles. The high quality capsule provides excellent speech intelligibility. Also available as the MEB 102-L with a bi-color LED for status indication and programmable button for for On, On/Off, PTT, PTM modes.

Sennhesier MEB 102 Includes:

  • MEB 102
  • Mounting hardware
  • Quick guide

Sennheiser MEB 102 Features:

  • Unobtrusive design
  • Rugged housing
  • Optimized for speech
  • Exceptional immunity from RF interference
  • Available in black (B), white (W) and gray (G)

Sennheiser MEB 102 Specifications:

  • Connector: XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = -
  • Current consumption: 3 mA
  • Dimensions:  Height: 83.26 in (0.47 in above surface), Diameter 1.12 in
  • Frequency response:  40 Hz – 20 kHz
  • Max. sound pressure level:  125 dB
  • Transducer principle:  pre-polarized condenser microphone
  • Weight:  2.05 oz
  • Pick-up pattern:  Omnidirectional
  • Nominal impedance:  200 Ohm
  • Phantom powering:  P 24 - P 48
  • Operating temperature:  32 °to 104 ° F
  • Equivalent noise level:  21 dB (A)
  • Equivalent noise level weighted as per CCIR 468-3:  31 dB (CCIR)
  • Acoustics:  Boundary Layer Microphone
  • Dynamic range:  104 dB (A)
  • Sensitivity:  16 mV/Pa
  • Thread:  M 20
