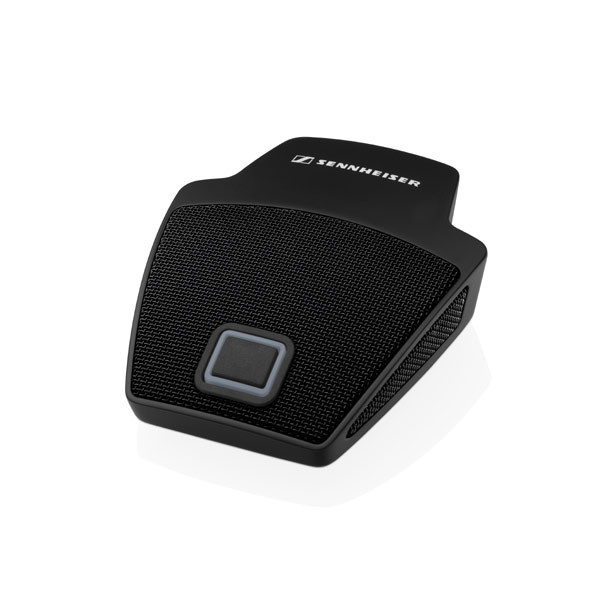

Sennheiser MEB 114-S
Cardioid Tabletop Boundary Microphone with Switch

OUR PART #  MEB114-S

Selected Model Price: $279.95
List Price: $349.00

Save up to 20%! (Low Price Guarantee)
Select model: (shipping times are approximate)

The MEB 114, rugged table boundary microphone, features a high-quality cardioid capsule for excellent speech intelligibility. Also available as the MEB 114-S with programmable modes (On, On/Off, PTT, PTM) and TTL Logic out for media/camera control systems.

Sennheiser MEB 114-S Includes:

  • MEB 114-S Microphone
  • Cable
  • Quick guide

Sennheiser MEB 114-S Features:

  • Unobtrusive design
  • Rugged housing
  • Optimized for speech
  • Exceptional immunity from RF interference
  • Available in black (B), white (W), and gray (G)
  • Made in Germany
  • Microphone modes:
    • Toggle On/Off
    • Push to mute
    • Push to talk
    • Permanent On (external LED control)

Sennheiser MEB 114-S Specifications:

  • Dimensions:  3.34 x 3.93 x 0.98 in (W x D x H)
  • Connector:  Clip contact, trigger signal at the logic connector: Logic in (LED control), Ground, Logic out (switch signal)
  • Frequency response:  40 Hz – 20 kHz
  • Max. sound pressure level:  140 dB
  • Transducer principle:  pre-polarized condenser microphone
  • Weight:  10.26 oz
  • Pick-up pattern:  cardioid
  • Nominal impedance:  200 Ohm
  • Phantom powering:  P 24 - P 48
  • Operating temperature:  14 ° to 122 ° F
  • Equivalent noise level:  29 dB (A)
  • Equivalent noise level weighted as per CCIR 468-3:  39 dB (CCIR)
  • Current consumption:  5.3 mA
  • Output voltage:
    • Logic out: High level output voltage > 2.4 V, low level output voltage < 0.4 V
    • Logic in: High level input voltage > 2.0 V, Low level input voltage < 0.8 V
  • Acoustics:  boundary layer microphone
  • Colour:  LED light ring: Red / Green
  • Dynamic range:  111 dB (A)
  • Sensitivity:  10 mV/Pa

Sennheiser MEB 114-S
Cardioid Tabletop Boundary Microphone with Switch

OUR PART #  MEB114-S

Product Information:

The MEB 114, rugged table boundary microphone, features a high-quality cardioid capsule for excellent speech intelligibility. Also available as the MEB 114-S with programmable modes (On, On/Off, PTT, PTM) and TTL Logic out for media/camera control systems.

Sennheiser MEB 114-S Includes:

  • MEB 114-S Microphone
  • Cable
  • Quick guide

Sennheiser MEB 114-S Features:

  • Unobtrusive design
  • Rugged housing
  • Optimized for speech
  • Exceptional immunity from RF interference
  • Available in black (B), white (W), and gray (G)
  • Made in Germany
  • Microphone modes:
    • Toggle On/Off
    • Push to mute
    • Push to talk
    • Permanent On (external LED control)

Sennheiser MEB 114-S Specifications:

  • Dimensions:  3.34 x 3.93 x 0.98 in (W x D x H)
  • Connector:  Clip contact, trigger signal at the logic connector: Logic in (LED control), Ground, Logic out (switch signal)
  • Frequency response:  40 Hz – 20 kHz
  • Max. sound pressure level:  140 dB
  • Transducer principle:  pre-polarized condenser microphone
  • Weight:  10.26 oz
  • Pick-up pattern:  cardioid
  • Nominal impedance:  200 Ohm
  • Phantom powering:  P 24 - P 48
  • Operating temperature:  14 ° to 122 ° F
  • Equivalent noise level:  29 dB (A)
  • Equivalent noise level weighted as per CCIR 468-3:  39 dB (CCIR)
  • Current consumption:  5.3 mA
  • Output voltage:
    • Logic out: High level output voltage > 2.4 V, low level output voltage < 0.4 V
    • Logic in: High level input voltage > 2.0 V, Low level input voltage < 0.8 V
  • Acoustics:  boundary layer microphone
  • Colour:  LED light ring: Red / Green
  • Dynamic range:  111 dB (A)
  • Sensitivity:  10 mV/Pa
