Neutrik NKE6S-3-WOC 3m CAT6 Patch Cable with ethercon and RJ45 Connectors

Neutrik's NKE6S-3-WOC preassembled etherCON CAT6 patch cable uses a shielded S/FTP cable with cable plug carrier offering a robust metal shell and Push-Pull locking system.

Features

• CAT6 compliant - data rate up to 10 GBit/s
• CAT6 performance - fast data transmission and high bandwidth applications
• CAT6 specifications according TIA / EIA 568B, ISO /IEC 11801, EN 50173
• IP65 - Dust and waterproof in mated condition
• Shielded system - high noise immunity and EMI protection
• Push Pull mating - secure and proven locking system
• Ready made patch cables with rugged cable carrier and unique chuck-type strain relief

Specifications

• Contact resistance: < 10 mOhm (inner)
• Dielectric strength: 1 kVdc
• Frequency range: 1 - 250 MHz
• Insulation resistance: = 0.5 GOhm
• Rated current per contact: 1.5 A
• Rated voltage: 50 V
• Insertion force: = 40 N
• Withdrawal force: = 20 N
• Lifetime: > 1000 mating cycles
• Wiresize: 8 x AWG 27/7 mm²
• Locking device: Push-Pull
• Boot: Polyurethane
• Contact plating: 0.7 µm Au over 1.2 µm Ni plating
• Contacts: Bronze (CuSn8)
• Insert: Polyamide (PA 6.6 30 % GR)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating :Nickel
• Strain relief: Polyacetal (POM)
• Flammability: UL 94 HB
• Standard compliance: CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173
• Protection class :IP 65
• Temperature range :-10 °C to +60 °C

NOTE

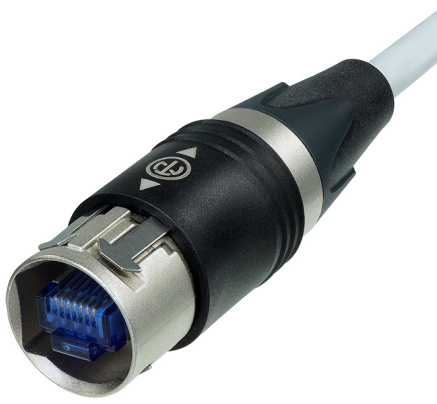

The cable plug carrier end shown above only comes on ONE end of this cable. The other end has an RJ45 connector WITHOUT the cable plug carrier.
