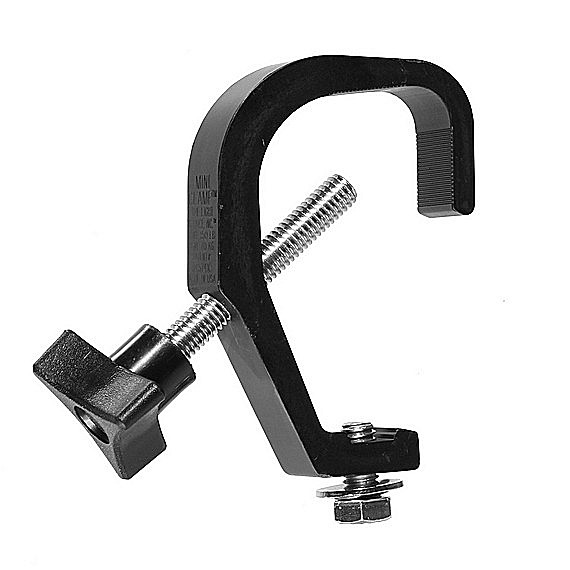

The Light Source MNB
Mini-Clamp, Black Anodized

OUR PART #  MNB

Our Price: $5.74
List Price: $8.75
You save 34%! (Low Price Guarantee)
In Stock

The Light Source's MNB Mini-Clamp is perfect for PAR 38’s, Pin Spots, and other small fixtures. The clamp is made from an aircraft grade aluminum extrusion with micro-grooves that conform to the pipe for real gripping power.

The Mini-Clamp will grip from 3/4" to 2" tubing. Pipe bolt is 3/8"-16 TPI x 2" Black Plastic Knob. Yoke bolt is a 3/8"-16 TPI x 3/4" long. SWL is 150 pounds, 70kg, yet the Mini-Clamp weighs less than 6 Oz.!

The Light Source MNB Specifications:

  • Minimum Size: 3/8" pipe, .675" OD
  • Maximum Size: 1.5" pipe, 1.9"OD, 2" OD Truss Tube
  • Safe Vertical Working Load: 150 lbs. (70kg)
  • Hardware:
    • Pipe bolt is a steel 3/8"-16 TPI x 2" stud with a Black Plastic Knob
    • Yoke bolt is a 3/8"-16 TPI x 3/4" long
    • Belleville Washer
  • Dimensions (HxWxD): 4" x 2-3/4" x 7/8"
  • Weight: 6oz.
  • Case Quantities: 24 – 48

The Light Source MNB
Mini-Clamp, Black Anodized

OUR PART #  MNB

Product Information:

The Light Source's MNB Mini-Clamp is perfect for PAR 38’s, Pin Spots, and other small fixtures. The clamp is made from an aircraft grade aluminum extrusion with micro-grooves that conform to the pipe for real gripping power.

The Mini-Clamp will grip from 3/4" to 2" tubing. Pipe bolt is 3/8"-16 TPI x 2" Black Plastic Knob. Yoke bolt is a 3/8"-16 TPI x 3/4" long. SWL is 150 pounds, 70kg, yet the Mini-Clamp weighs less than 6 Oz.!

The Light Source MNB Specifications:

  • Minimum Size: 3/8" pipe, .675" OD
  • Maximum Size: 1.5" pipe, 1.9"OD, 2" OD Truss Tube
  • Safe Vertical Working Load: 150 lbs. (70kg)
  • Hardware:
    • Pipe bolt is a steel 3/8"-16 TPI x 2" stud with a Black Plastic Knob
    • Yoke bolt is a 3/8"-16 TPI x 3/4" long
    • Belleville Washer
  • Dimensions (HxWxD): 4" x 2-3/4" x 7/8"
  • Weight: 6oz.
  • Case Quantities: 24 – 48
