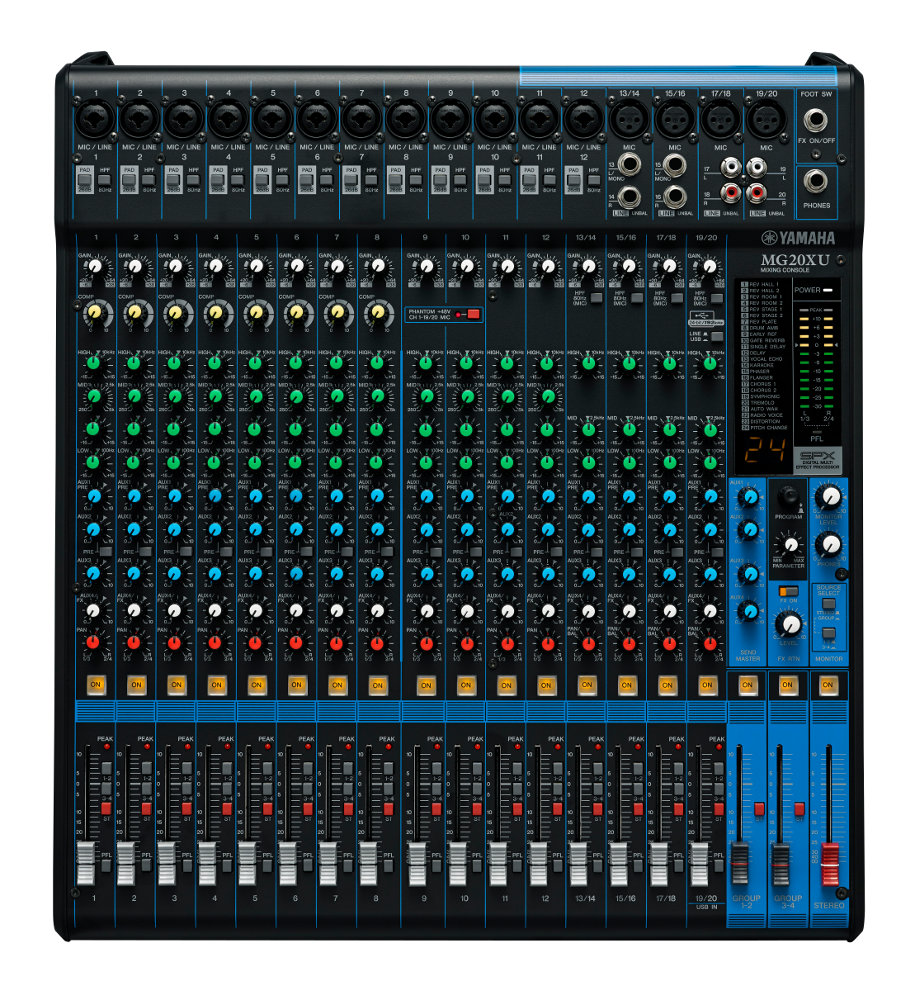

Yamaha MG20XU
20-Channel Mixer with Built-In SPX Digital Effects and Onboard 2 In/2 Out USB Interface

OUR PART #  MG20XU

Our Price: $699.99
List Price: $929.00
You save 25%! (Low Price Guarantee)
In Stock

The Yamaha MG20XU is a 20-channel analog mixer with built-in SPX digital effects, onboard 2 in/2 out USB interface and 1-knob compressors.

The third generation of the acclaimed MG Series, these compact mixing consoles focus on delivering high quality sound for a diverse range of mixing environments. With the same mic preamps as Yamaha's high-end professional mixers, the MG Series provides serious sound with the reliability and performance this series is renowned for.

For a more precise control and enhancement of your sound, XU models of the MG Series come equipped with a suite of Yamaha’s renowned SPX effects. Featuring high-resolution Chorus, Flanger, Distortions, Reverb and Delay, all with editable parameters, these are the same multieffects processors used on Yamaha’s high-end mixing consoles, giving you the tools you need to elevate your mixes to a higher plane.

D-PRE Discrete Class-A Mic Preamps
This is where it all starts. Everything you do as a sound engineer is dependent on the quality of your preamps, which determines the direction your mix will take, and ultimately how good it is going to sound. MG Series mixing consoles feature Yamaha’s studio-grade discrete class-A D-PRE preamps, which utilize an inverted Darlington circuit comprising two cascading transistors in a configuration that provides more power with lower impedance. Delivering fat, natural sounding bass and smooth, soaring highs, with very low distortion, D-PRE preamps possess an impressively wide frequency range that allow them to handle signal from any audio source without overly amplifying any specific elements of the sound. Having such a pure sonic platform to uild on will ultimately save you time and effort by eliminating the need for excessive EQing or additional effects processing in order to “fix” your mix.

High Quality Sound Op-amp
The head amp determines sound quality, and op-amp integrated circuits are one of the most important parts in the head amp circuit. MG Series mixers feature new, high-quality, custommade MG01 op-amps that we developed in cooperation with the semiconductor manufacturer. Although many other Op-amps prioritize electrical design and efficiency, we worked directly with the semiconductor manufacturer to focus on sound quality first. MG01 op-amps feature redesigned circuitry in which even the internal components and wiring have been optimized, and use materials such as high-quality silicon wafers and copper wire to achieve uperb resolution.

Switchable Phantom Power & PAD Switch
With phantom power, MG Series consoles allow you to take full advantage of the greater frequency response and high sound quality of condenser microphones. The input channel with PAD switch accepts MIC to line level of inputs, PAD Switch attenuates high input signals that often accompany mic’ed instruments during performance, avoiding the clipping that can seriously affect your mix.

1-knob Compressors
Compression plays an essential role in just about any recording or sound reinforcement environment by altering the level of dynamics of an audio signal when you need livelier guitars, punchier bass lines, a tighter snare, or a cleaner vocal sound. However, it can take countless hours to master the complexities of even the most basic outboard compression units and use them effectively. Originally a Yamaha innovation, 1-knob compressors are now an industry standard that gives you instant access to optimized compression settings via a single rotary control.

EQ and High-pass Filters
There's nothing more useful than reliable equalization when you need nuanced management of your tone. The MG Series benefits from Yamaha's unparalleled experience in designing pro audio gear, featuring 3-band equalizers on all mono channels for precise control of your sound. High-pass filter allows you to eliminate unwanted low-frequency noise, for a smoother, cleaner mix.

AUX / Effect Sends / Group
MG Series mixers feature up to AUX sends for expanding your sound reinforcement or recording setup, allowing you to incorporate additional effects, output to external recording devices, or feed to an monitoring system. Master send controls are also provided. .

A Variety of Input / Output Connectors
All models feature high-quality Neutrik™ balanced XLR connectors on mono microphone/line channels and XLR equipped stereo channels. Each of the mono inputs is equipped with combo jack and accepts both MIC and LINE level signals. Two of the stereo inputs are equipped with XLR and two phone connectors with XLR accepting MIC level signals while two phone connectors accepting LINE level signals and can be used either mono or stereo. (except for 10ch model) The function of another two stereo channel vary depending on model:

With 20ch model, XLR accepts MIC level signal and two RCA connectors accepts LINE level signals and can be used either mono or stereo. With 16ch and 12ch models, two phone connectors accept LINE level signals as stereo. Additionally, each of the stereo channel features 2TR in (RCA connectors) and can be used as independent input from external audio sources such as CDs. 10ch is equipped with additional stereo channel with a pair of phone jack that accepts LINE levels.

Built-in SPX Digital Effects
For musical and non-musical applications alike, effects processing adds polish and professionalism to the mix. The MG X / XU models features Yamaha's acclaimed SPX digital multi-effect processor, offering a comprehensive suite of 24 editable digital effects perfect for enhancing your mix, whether adding depth to a speaking engagement or breathing new color and atmosphere into a live band performance. In particular, the high-quality reverb and delay expand the spatial quality of the sound with remarkable realism and naturalness. You can even connect an optional FC5 foot switch for effect on / off control. (MG10XU / 12XU / 16XU / 20XU)

XLR Connector
The main stereo outputs feature XLR type connectors that lock to prevent accidental disconnection. Rugged and dependable, these professional connectors ensure providing stable signal transmission even in the most demanding environments.

24-bit /192kHz 2-in/2-out USB Audio Interface Function
MG Series mixing consoles feature flexible digital connectivity for quick and easy highresolution playback of digital content. Simply connect to your PC via USB, or to your iPhone / iPad (2 or later) using Apple's Camera Connection Kit / Lightning to USB Camera Adapter. The USB protocol uses asynchronous data transfer. Audio data is transferred based on highly precise audio clock signal from the MG, for high quality recording and playback.

Cubase AI
MG XU models are bundled with Downloadable Steinberg’s Cubase AI software. As one of the most advanced, comprehensive DAW suites available, Steinberg's Cubase has led the charge, providing users with a powerful and flexible platform for music production. Cubase AI offers these same core technologies and interface that have won Cubase worldwide acclaim.
(* MG10XU MG12XU MG16XU MG20XU)

Yamaha MG20XU Includes:

  • MG20XU 20-Channel Mixer
  • Rackmount Kit
  • Cubase AI download information
  • AC Power Cord
  • Owner's Manual
  • Technical Specifications

Yamaha MG20XU Features:

  • 20-Channel Mixing Console
  • Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • 24-bit/192kHz 2 in/2 out USB Audio functions
  • Works with the iPad (2 or later) through the AppleiPad Camera Connection Kit / Lightning to USB Camera Adapter (sold separately)
  • Includes Cubase AI DAW software download version
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Rack Mount Kit Included
  • Metal chassis

Yamaha MG20XU Specifications:

  • Mixing Capability:
    • Onboard Processors:  SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
  • I/O:
    • Phantom Power:  +48 V
    • Digital I/O:  USB Audio Class 2.0 compliant Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
  • Input Channels:
    • Mono[MIC/LINE]:  12
    • Mono/Stereo[MIC/LINE]:  4
  • Output Channels:
    • STEREO OUT:  2
    • MONITOR OUT:  1
    • PHONES:  1
    • AUX SEND:  4
    • GROUP OUT:  4
    • Bus:  Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
  • Input Channel Function:
    • PAD:  26 dB (Mono)
    • HPF:  80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
    • COMP:  1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
    • EQ HIGH:  Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
    • EQ MID:  Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
    • EQ LOW:  Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
    • PEAK LED:  LED turns on when post EQ signal reaches 3 dB below clipping
    • Level Meter:  2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
  • General Specifications:
    • Total Harmonic Distortion:  0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
    • Frequency Response:  +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
    • Hum & Noise Level:  Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150 Ohms, GAIN knob: Max)
    • Residual Output Noise:  -102 dBu (STEREO OUT, STEREO master fader: Min)
    • Crosstalk:  -78 dB
    • Power Requirements:  AC 100 – 240 V, 50 / 60 Hz
    • Power Consumption:  36 W
    • Dimensions (WxHxD):  17.5" x 5.1" x 19.7" (444mm x 130mm x 500mm)
    • Net Weight:  15.7 lbs (7.1 kg)
  • Accessories:
    • Included Accessories:
      • Owner’s Manual
      • Technical Specifications
      • AC power cord
      • Cubase AI Download Information
      • Rack-mount kit
  • Optional Accessory:  Foot Switch FC5
  • Operating Temperature:  0 to +40°C
