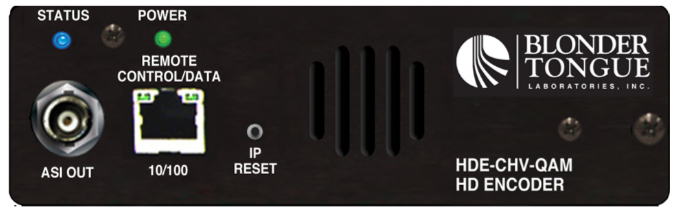

Blonder-Tongue HDE-CHV-QAM
MPEG-2 HD Encoder

OUR PART #:  HDE-CHV-QAM

Our Price: $2,676.31
List Price: $2,811.00
You save 5%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blonder-Tongue HDE-CHV-QAM
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The HDE-CHV-QAM (MPEG-2 HD Encoder) – 1xComponent/HDMI/VGA/Composite – 1xQAM) from Blonder Tongue accepts one (1) high-definition (HD) program from any of the following inputs: 1xComponent, 1xHDMI (unencrypted), 1xVGA, and 1xComposite. MPEG-2 encoded outputs are available in the following formats simultaneously: 1xQAM, 1xASI, and 1xIP (10/100Base-T Ethernet).

The QAM RF output is frequency agile over the entire CATV frequency range of 54-1002 MHz (channels 2-158) with an output level of +40 dBmV. The encoder supports Dolby® Digital audio encoding, and Closed Captioning (EIA-608). Comprehensive remote monitoring and control is accomplished using any standard Web browser via a front-panel 10/100Base-T Ethernet connection. A rear-panel VGA output port is available for loop-through applications.

Blonder Tongue HDE-CHV-QAM Features:

  • Accepts one (1) program from any of the following inputs: 1xComponent, 1xHDMI (unencrypted), 1xVGA, and 1xComposite
  • Simultaneously delivers the following outputs: 1xQAM, 1xASI, and 1xIP
  • Provides +40 dBmV QAM RF output level
  • Provides comprehensive GUI-based monitoring and control via standard Web browsers
  • Compact design permits installation of up to 3 Encoder modules in 1RU
  • Supports Real-time Dolby® Digital audio encoding
  • Supports user-defined PSIP configuration
  • Supports Closed Captioning EIA-608

Blonder Tongue HDE-CHV-QAM Specifications:

  • For specifications, please review the attached documentation.
